Insert Grooving Shaper Cutters with Scorer 4 to 6mm

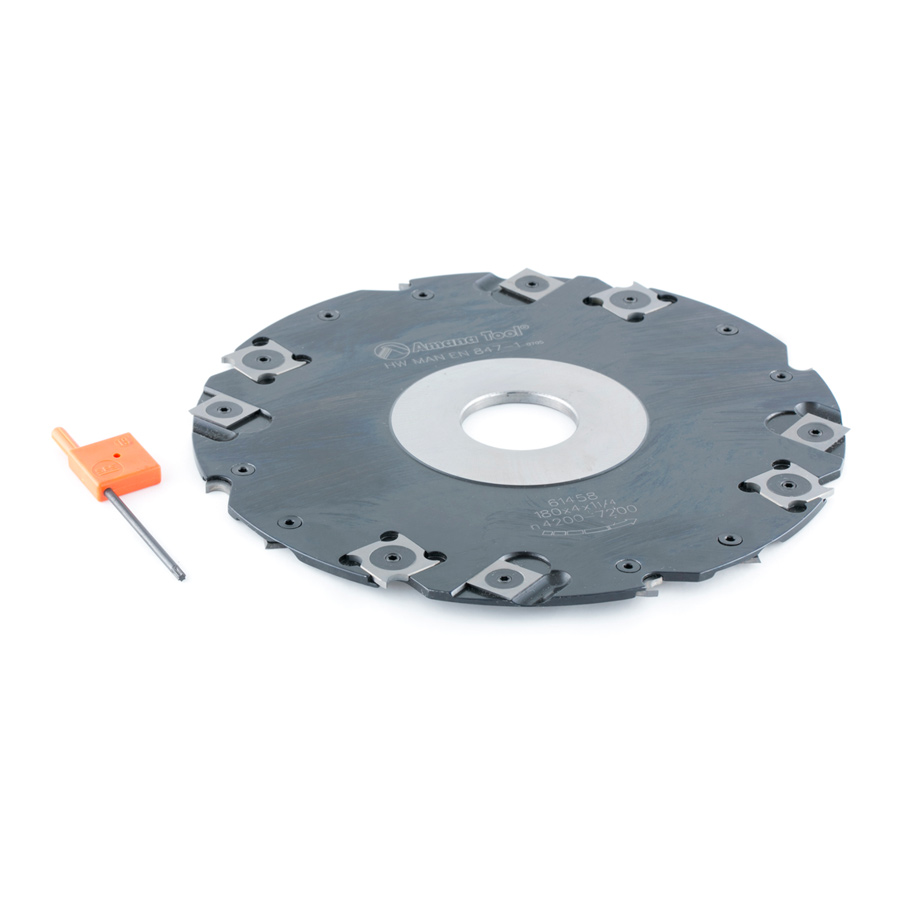

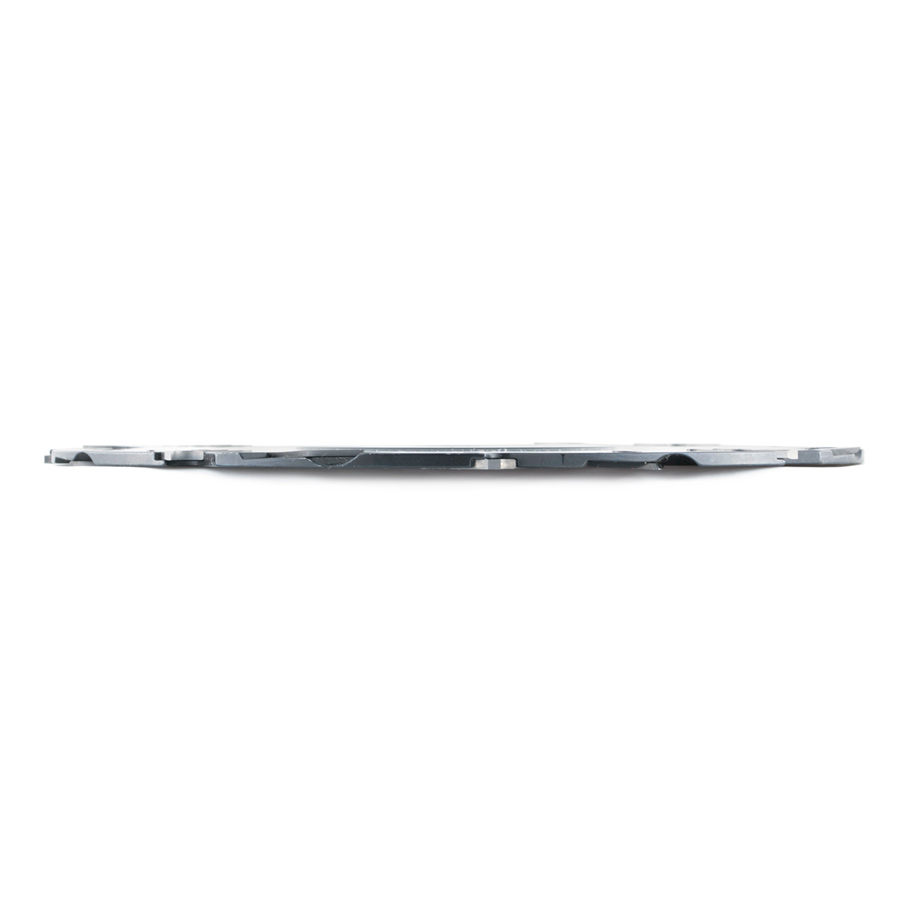

61458 Insert Carbide Grooving with Scorer 4mm (5/32) x 180mm (7-1/16) Dia x 1-1/4 Bore
#61458
| (D) Diameter | 180mm (7-1/16) |
|---|---|
| (d) Bore | 1-1/4 |
| (B) Cutting Height | 4mm (5/32) |
| Max. t | 55mm (2-5/32) |
| RPM | 4,200-7,200 |
| Teeth | 8+8 |
| Replacement Knives | RCK-18, RCK-71 |
Hard wearing steel body complete with tungsten carbide knives and scorer for improved finish. Suitable for producing grooves and slots in softwood, hardwood and man-made boards (with or without coating) on a spindle molder.
Can be used with spacer rings for comb jointing.
