Combination Ripping & Crosscut Saw Blades

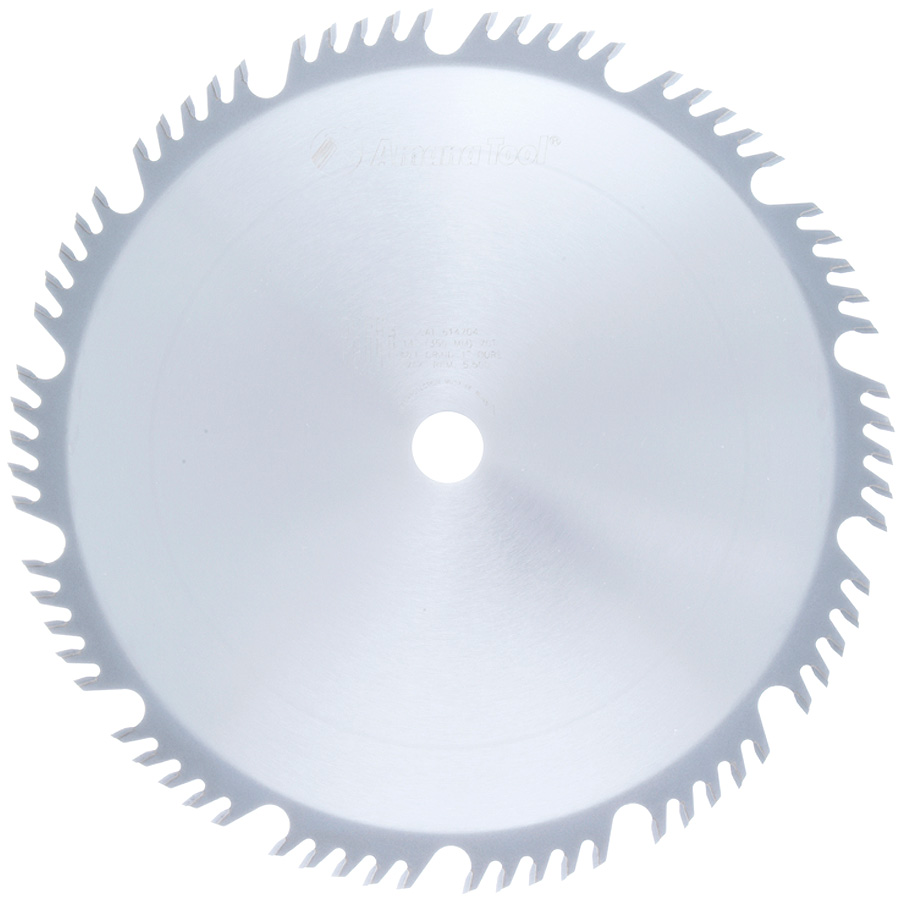

614704 Carbide Tipped Combination Ripping and Crosscut 14 Inch Dia x 70T 4+1, 15 Deg, 1 Inch Bore

#614704

Specification
(D) Diameter14 (350mm)
Teeth70
(d) Bore1
Tooth Grind4&1
Hook Angle15°
Kerf (B).150 (3.8mm)
Plate (C).110 (2.8mm)

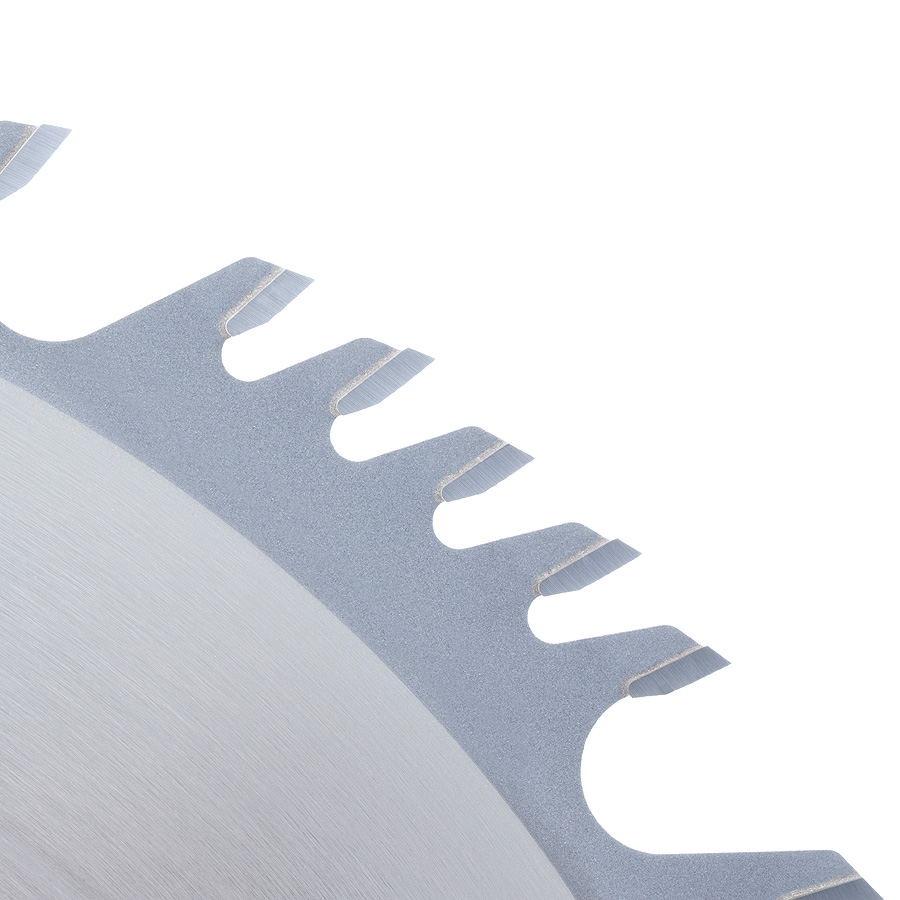

Where one blade must do almost everything – ripping and crosscutting hardwood and softwood, cutting plywood – this blade is a good choice. It is in the traditional combination-blade configuration, with a flat-top tooth and 4 alternate top bevel teeth in groupings of five. The large gullets at the raker tooth allow deep cuts with improved chip ejection.

Saw Blade Safety Guidelines

File Size : 1.55 MB
Create account or Login to download

Product Questions

Hi, I need to know which of the reference is de diametre of the centre of the blade

Thanks
Question by: Gustavo Echeverria on Mar 16, 2017, 3:17 PM
This blade has a 1 inch bore.
Answer by: Amana Tool Admin on Mar 16, 2017, 8:30 PM

Question on 614704 Carbide Tipped Combination Ripping and Crosscut 14 Inch Dia x 70T 4+1, 15 Deg, 1 Inch Bore
