Heavy Duty General Purpose Cut-Off TC Grind Saw Blades

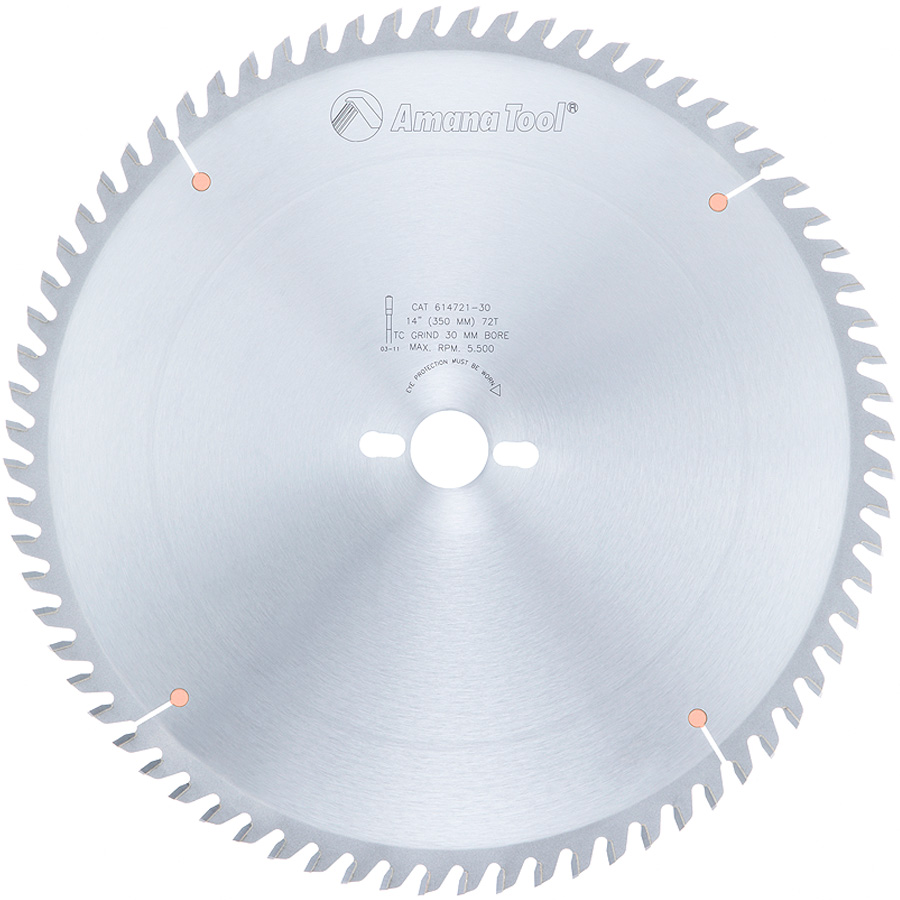

614721-30 Carbide Tipped Heavy Duty General Purpose 14 Inch Dia x 72T ATB, 10 Deg, 30mm Bore

#614721-30

Specification
(D) Diameter14 (350mm)
Teeth72
(d) Bore30mm
Tooth GrindTCG
Hook Angle10°
Kerf (B).137 (3.5mm)
Pinholes2/7/42, 2/9/46 & 2/10/60
Plate (C).098 (2.5mm)

While this blade handles general trimming and crosscutting of hardwood and softwood, plywood and composition materials, it excels at cutting single or double-sided plastic-laminated material. It leaves a smooth, clean, chip-free finish on the top and bottom edges. The blades in this series feature a high tooth count, the triple-chip grind and a 10° hook angle for a successful compromise between feed effort and cut finish.
