Heavy Duty General Purpose Cut-Off TC Grind Saw Blades

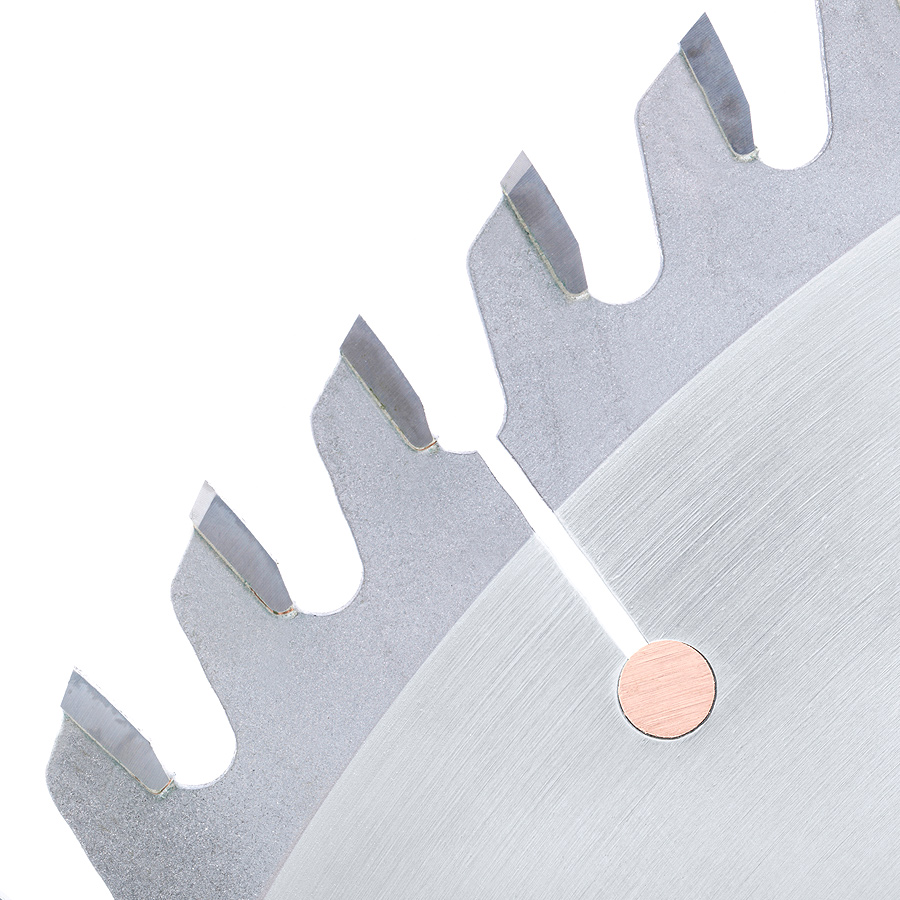

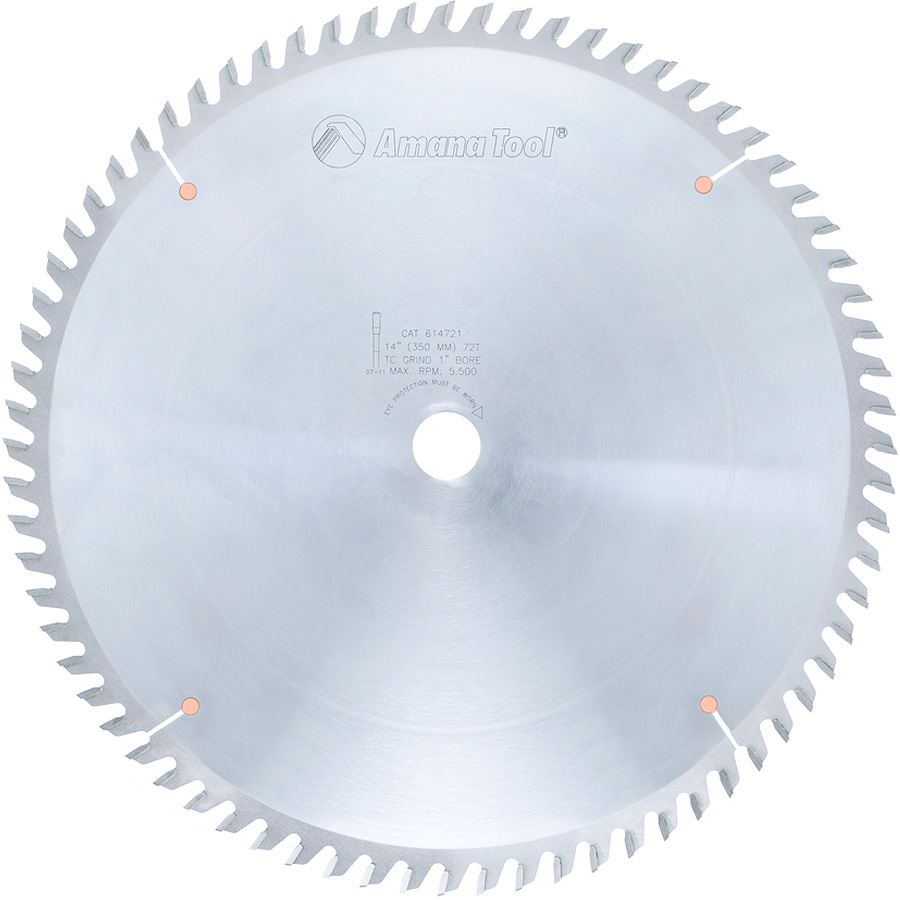

614721 Carbide Tipped Heavy Duty General Purpose 14 Inch Dia x 72T TCG, 10 Deg, 1 Bore

#614721

Specification
(D) Diameter 14 (350mm)
Teeth 72
(d) Bore 1
Tooth Grind TCG
Hook Angle 10°
Kerf (B) .137 (3.5mm)
Plate (C) .098 (2.5mm)

While this blade handles general trimming and crosscutting of hardwood and softwood, plywood and composition materials, it excels at cutting single or double-sided plastic-laminated material. It leaves a smooth, clean, chip-free finish on the top and bottom edges. The blades in this series feature a high tooth count, the triple-chip grind and a 10° hook angle for a successful compromise between feed effort and cut finish.
