Ripping Standard Saw Blades

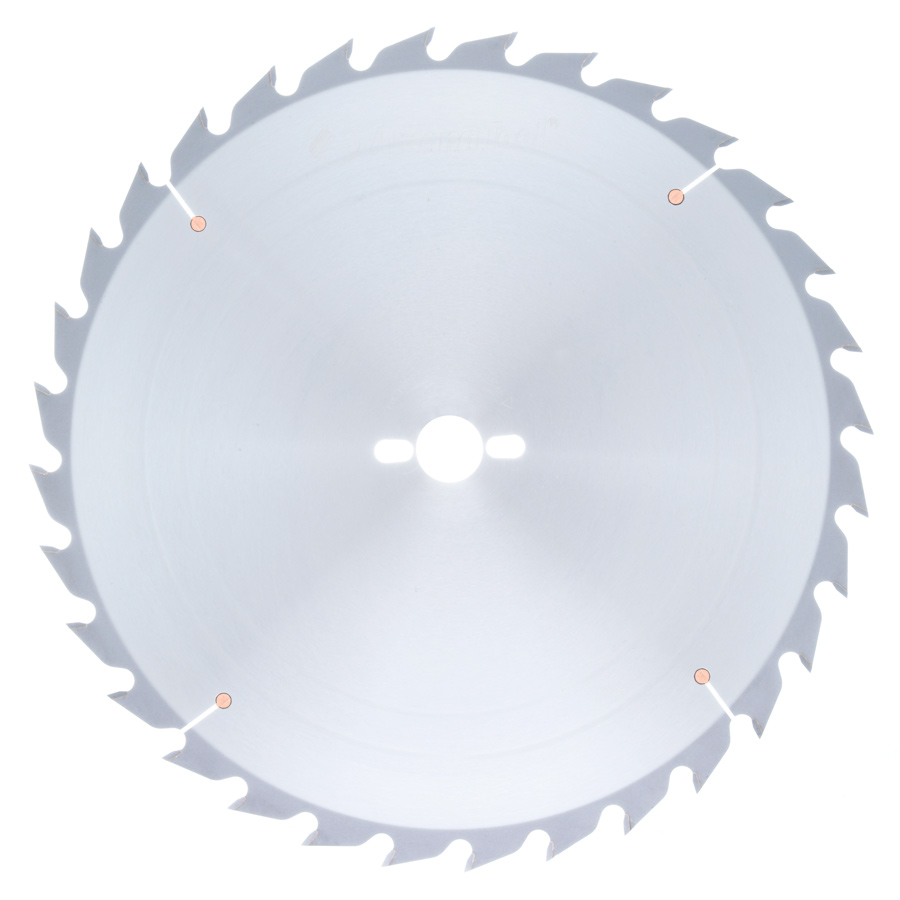

616320-30 Carbide Tipped Ripping Standard 16 Inch Dia x 32T FT, 18 Deg, 30mm Bore

#616320-30

Specification
(D) Diameter 16 (400mm)
Teeth 32
(d) Bore 30mm
Tooth Grind FT
Hook Angle 18°
Kerf (B) .137 (3.5mm)
Pinholes 2/7/42, 2/9/46 & 2/10/60
Plate (C) .098 (2.5mm)

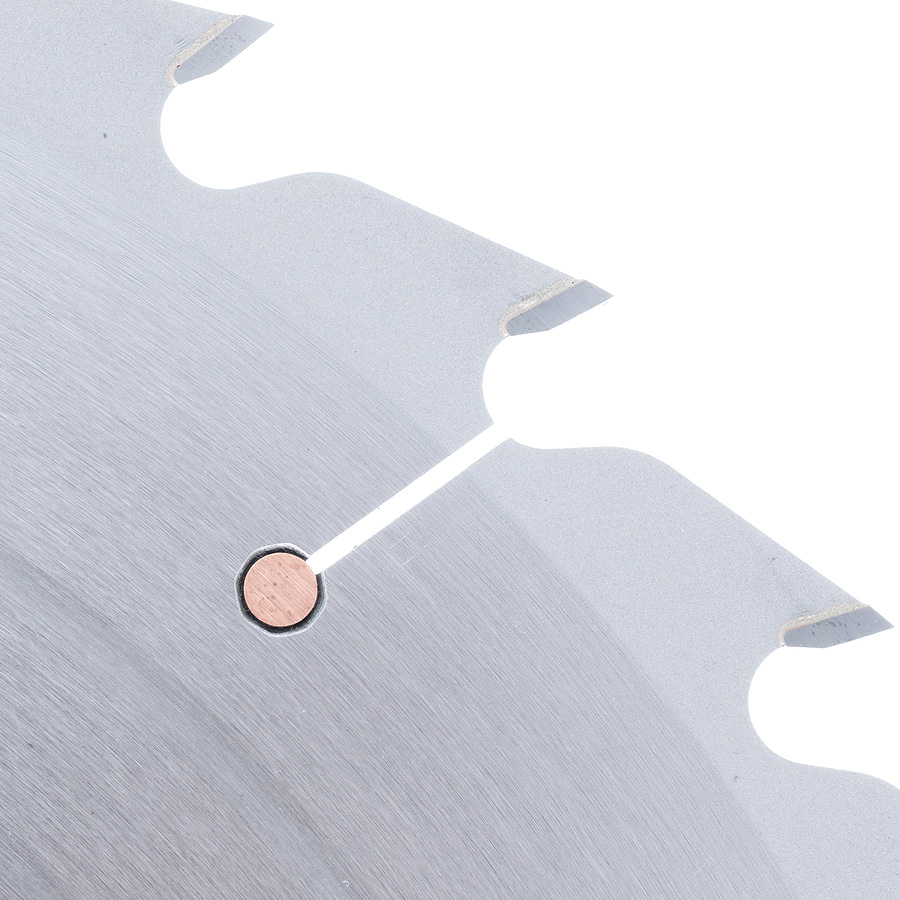

This blade is the classic ripper for both hardwood and softwood. It features the flat-top grind for cutting with the grain efficiently; ample gullets for fast chip-clearance; expansion slots and turbulence-reducing copper plugs.

Saw Blade Safety Guidelines

File Size : 1.55 MB
Create account or Login to download

Product Questions

Question on 616320-30 Carbide Tipped Ripping Standard 16 Inch Dia x 32T FT, 18 Deg, 30mm Bore
