Multi-Use Ripping & General Purpose Saw Blades

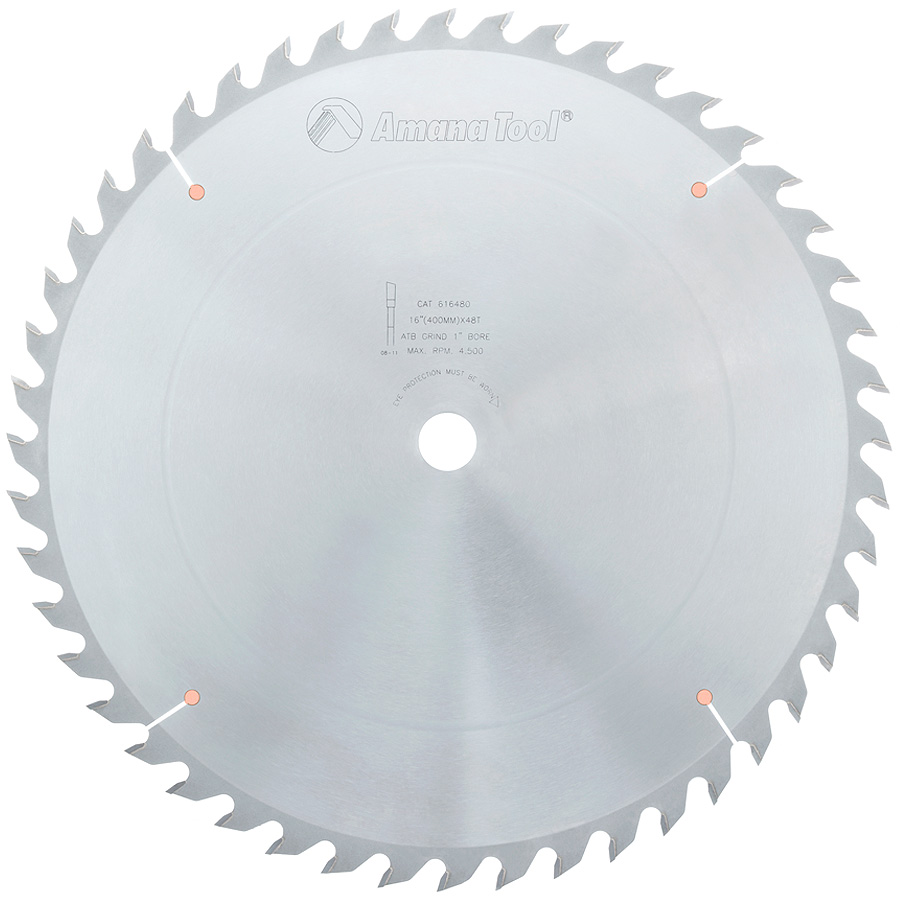

616480 Carbide Tipped General Purpose 16 Inch Dia x 48T ATB, 15 Deg, 1 Inch Bore

#616480

Specification222
(D) Diameter 16 (400mm)
Teeth 48
(d) Bore 1

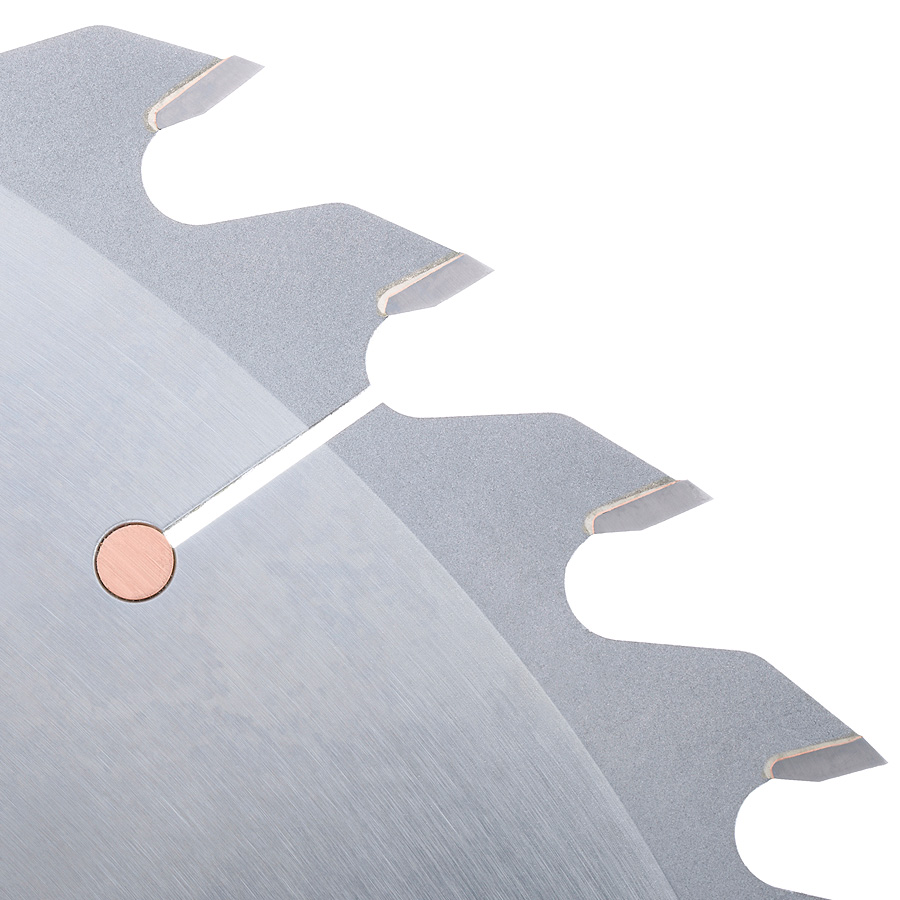

Tooth Grind ATB
Hook Angle 15°
Kerf (B) .137 (3.5mm)
Plate (C) .098 (2.5mm)

This is an excellent and popular general purpose configuration blade. Its low tooth count, high hook angle, and ample gullets make it an aggressive, fast-cutting ripping blade. But its ATB grind allows it to crosscut well. A good choice for all-around use.

Saw Blade Safety Guidelines
