Combination Ripping & Crosscut Saw Blades

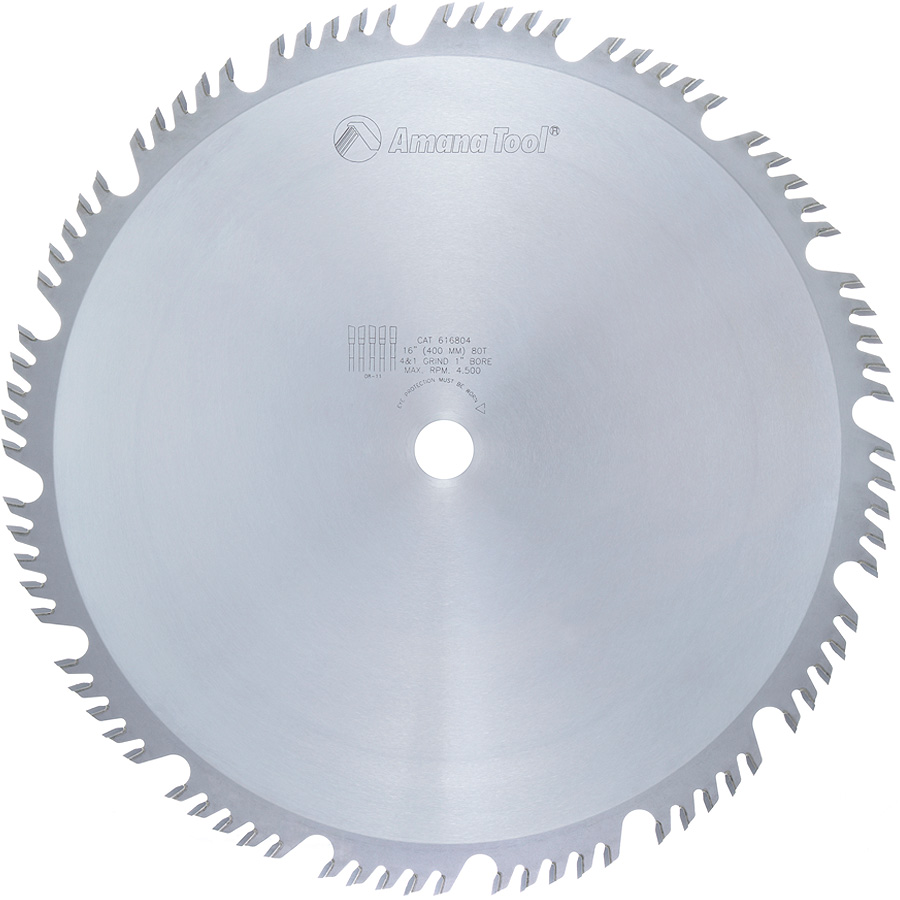

616804 Carbide Tipped Combination Ripping and Crosscut 16 Inch Dia x 80T 4+1, 15 Deg, 1 Inch Bore

#616804

Specification
(D) Diameter 16 (400mm)
Teeth 80
(d) Bore 1
Tooth Grind 4&1
Hook Angle 15°
Kerf (B) .158 (4.0mm)
Plate (C) .118 (3.0mm)

Where one blade must do almost everything – ripping and crosscutting hardwood and softwood, cutting plywood – this blade is a good choice. It is in the traditional combination-blade configuration, with a flat-top tooth and 4 alternate top bevel teeth in groupings of five. The large gullets at the raker tooth allow deep cuts with improved chip ejection.
