Heavy Duty General Purpose Cut-Off TC Grind Saw Blades

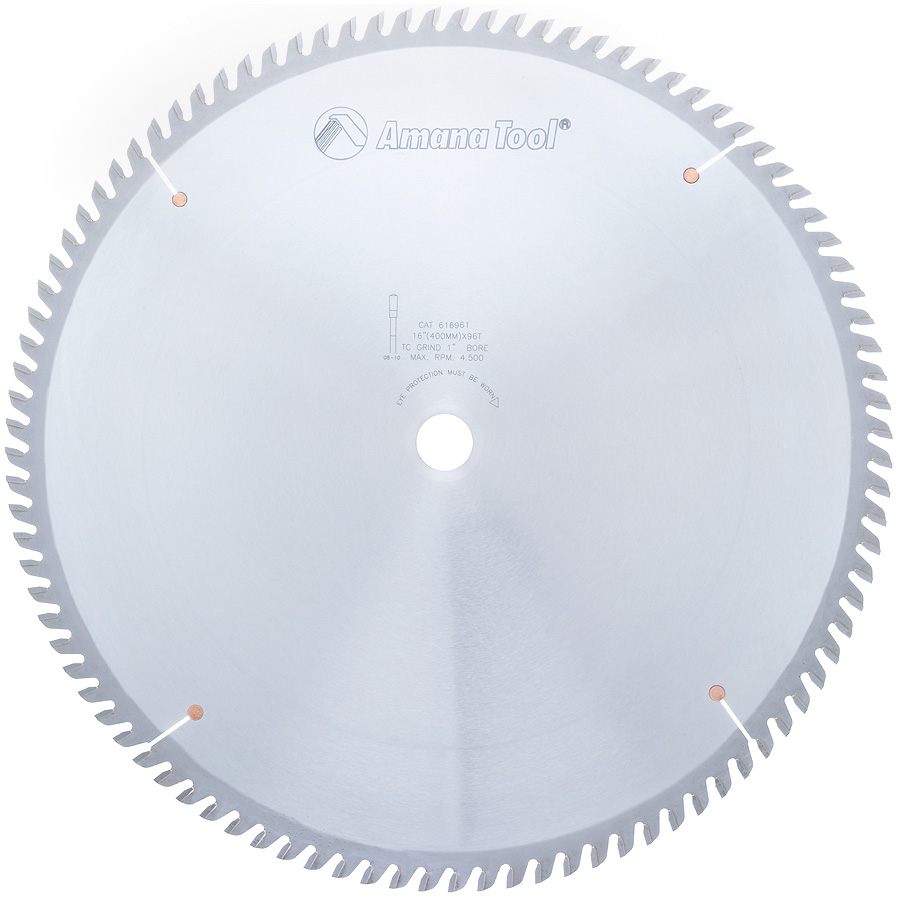

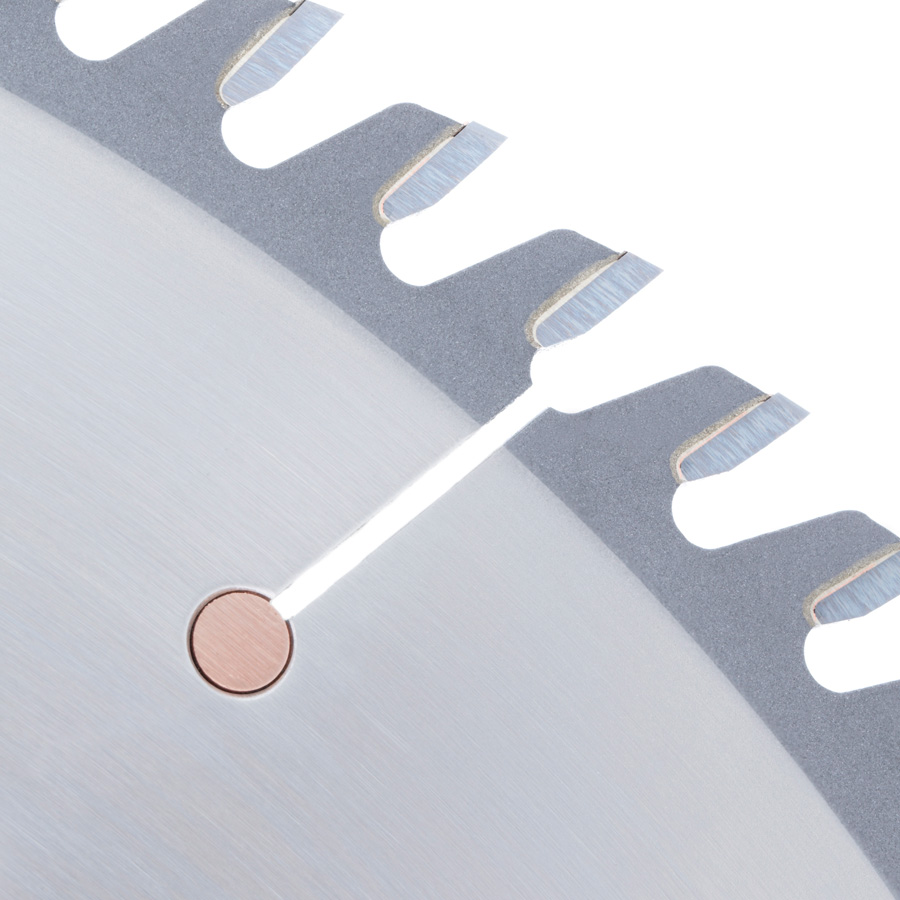

616961 Carbide Tipped Heavy Duty General Purpose 16 Inch Dia x 96T TCG, 10 Deg, Inch Bore

#616961

Specification
(D) Diameter 16 (400mm)
Teeth 96
(d) Bore 1
Tooth Grind TCG
Hook Angle 10°
Kerf (B) .137 (3.5mm)
Plate (C) .098 (2.5mm)

While this blade handles general trimming and crosscutting of hardwood and softwood, plywood and composition materials, it excels at cutting single or double-sided plastic-laminated material. It leaves a smooth, clean, chip-free finish on the top and bottom edges. The blades in this series feature a high tooth count, the triple-chip grind and a 10° hook angle for a successful compromise between feed effort and cut finish.
