Ripping Standard Saw Blades

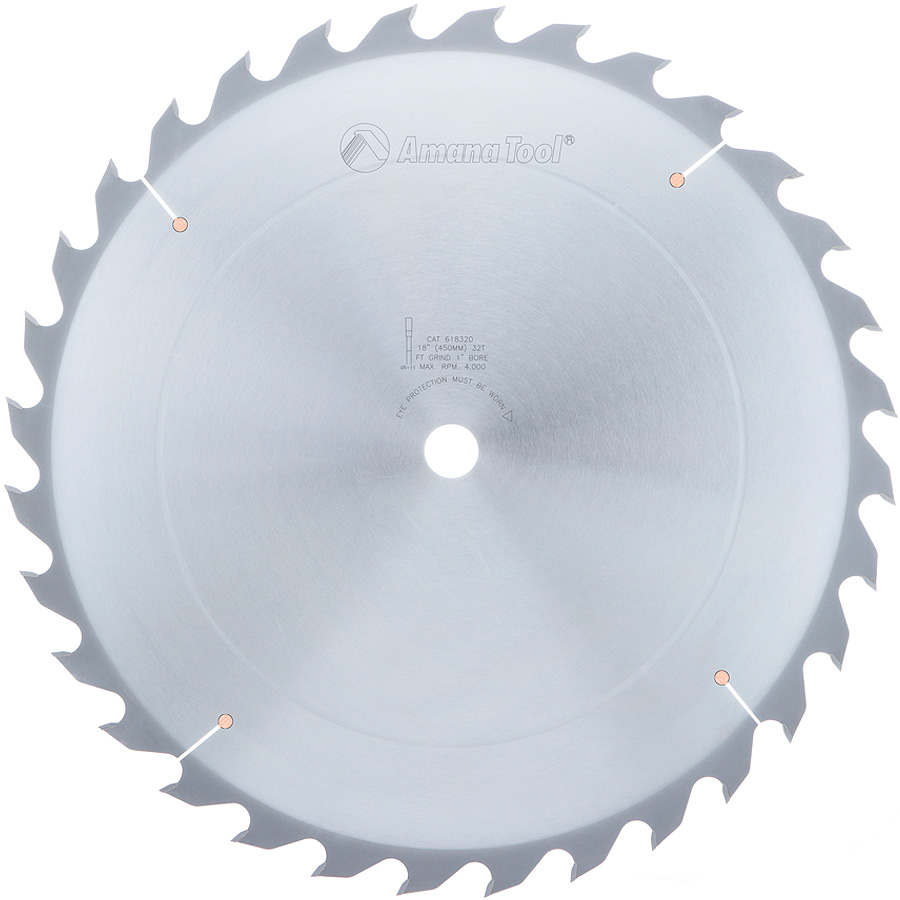

618320 Carbide Tipped Ripping Standard 18 Inch Dia x 32T FT, 18 Deg, 1 Inch Bore

#618320

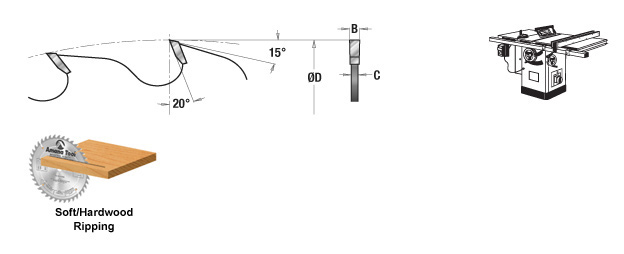

Specification222
(D) Diameter 18 (450mm)
Teeth 32
(d) Bore 1
Tooth Grind FT
Hook Angle 20°
Kerf (B) .157 (4.0mm)
Plate (C) .110 (2.8mm)
This blade is the classic ripper for both hardwood and softwood. It features the flat-top grind for cutting with the grain efficiently; ample gullets for fast chip-clearance; expansion slots and turbulence-reducing copper plugs. The new blade with the 20° hook angle features a thicker plate and cuts a wider kerf. Use in single and gang-rip saws.
