Multi-Use Ripping & General Purpose Saw Blades

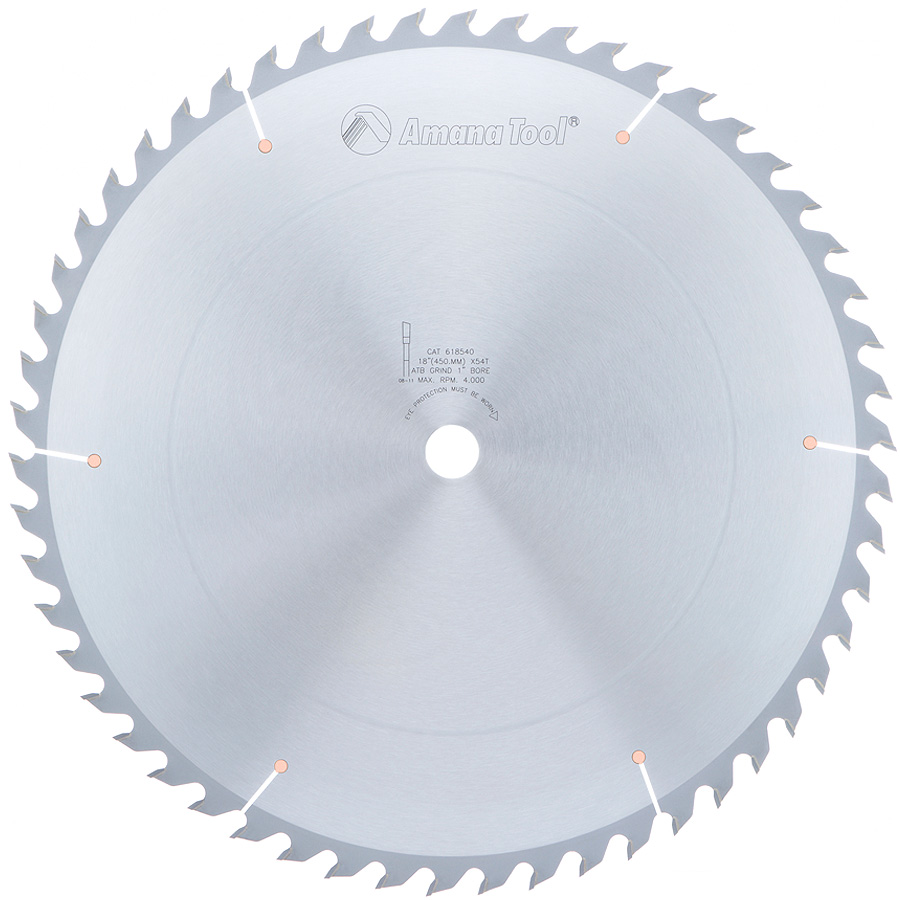

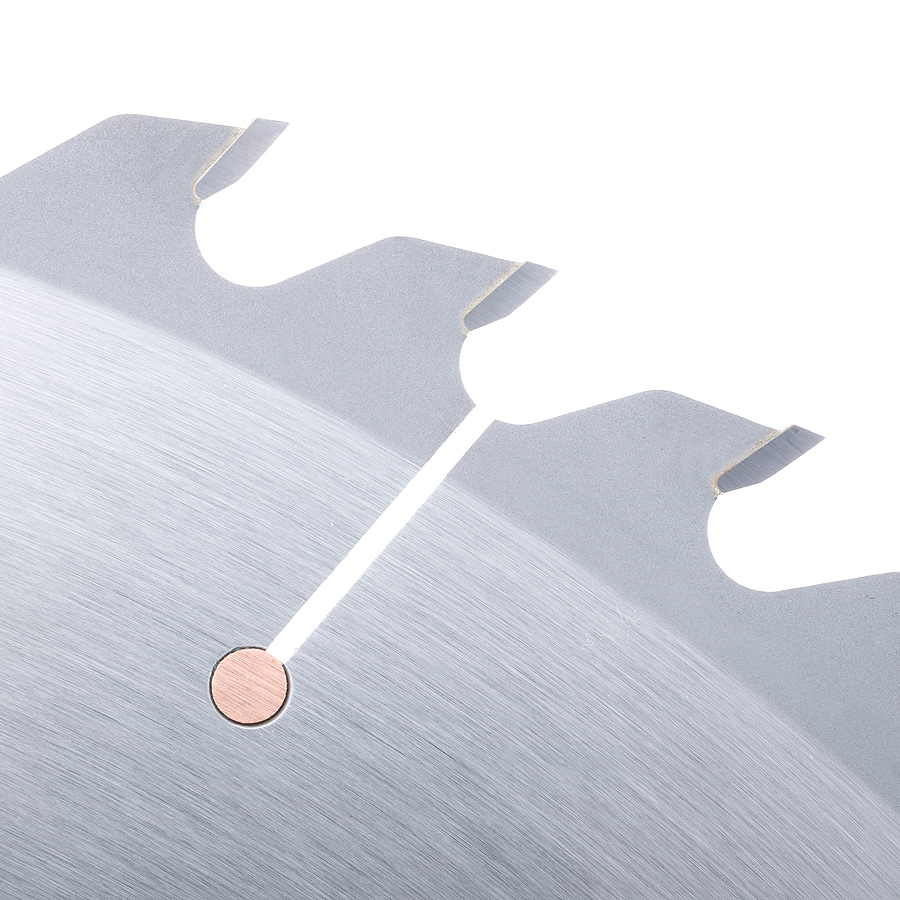

618540 Carbide Tipped General Purpose 18 Inch Dia x 54T ATB, 15 Deg, 1 Inch Bore

#618540

Specification222
(D) Diameter 18 (450mm)
Teeth 54
(d) Bore 1
Tooth Grind ATB
Hook Angle 15°
Kerf (B) .150 (3.8mm)
Plate (C) .110 (2.8mm)

This is an excellent and popular general purpose configuration blade. Its low tooth count, high hook angle, and ample gullets make it an aggressive, fast-cutting ripping blade. But its ATB grind allows it to crosscut well. A good choice for all-around use.

Saw Blade Safety Guidelines

File Size : 1.55 MB
Create account or Login to download
