658012 Carbide Tipped Dado 8 Inch Dia x 12T ATB/FT -5 Deg, 5/8 Bore, Dado Set with Three 2-Wing Chippers

#658012

Specification
(D) Diameter 8 (200mm)
Teeth 12
(d) Bore 5/8
Tooth Grind ATB/FT
Hook Angle -5°
Kerf (B) 1/4 - 13/16
Description 2-Wing Chippers x 3

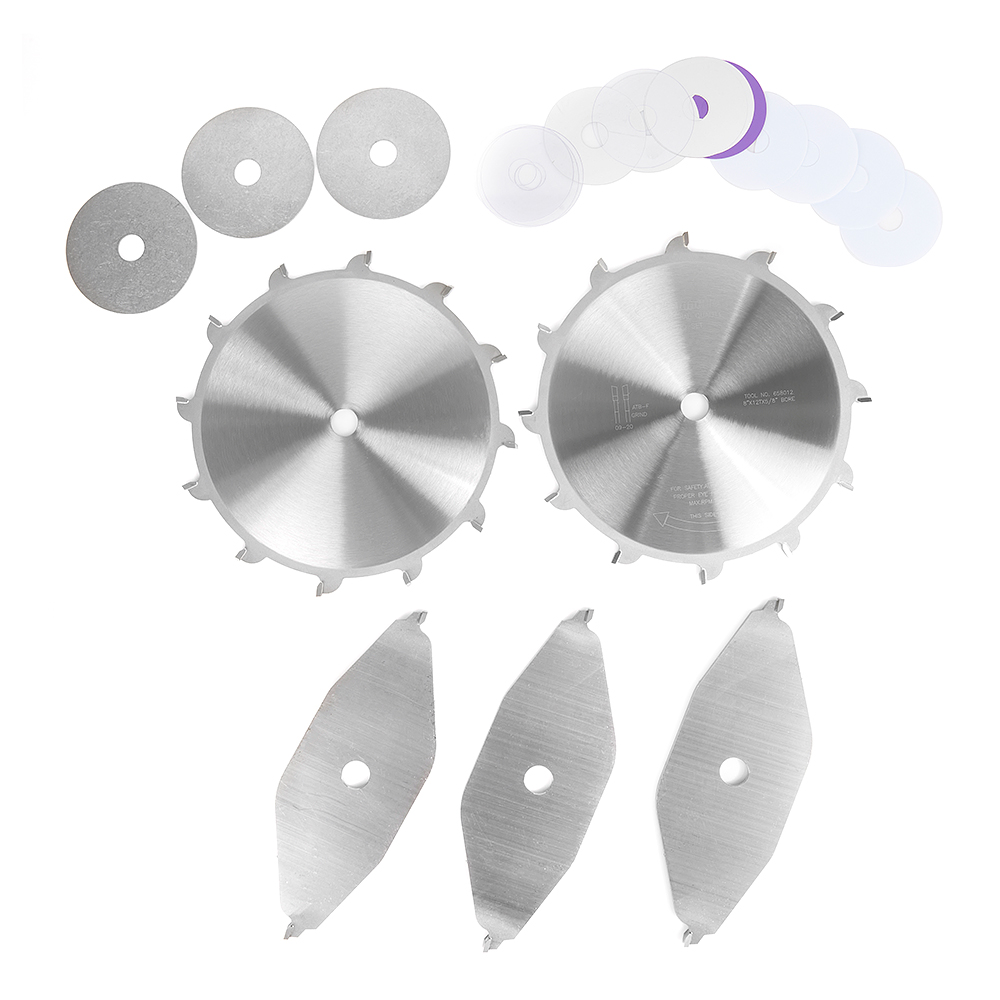

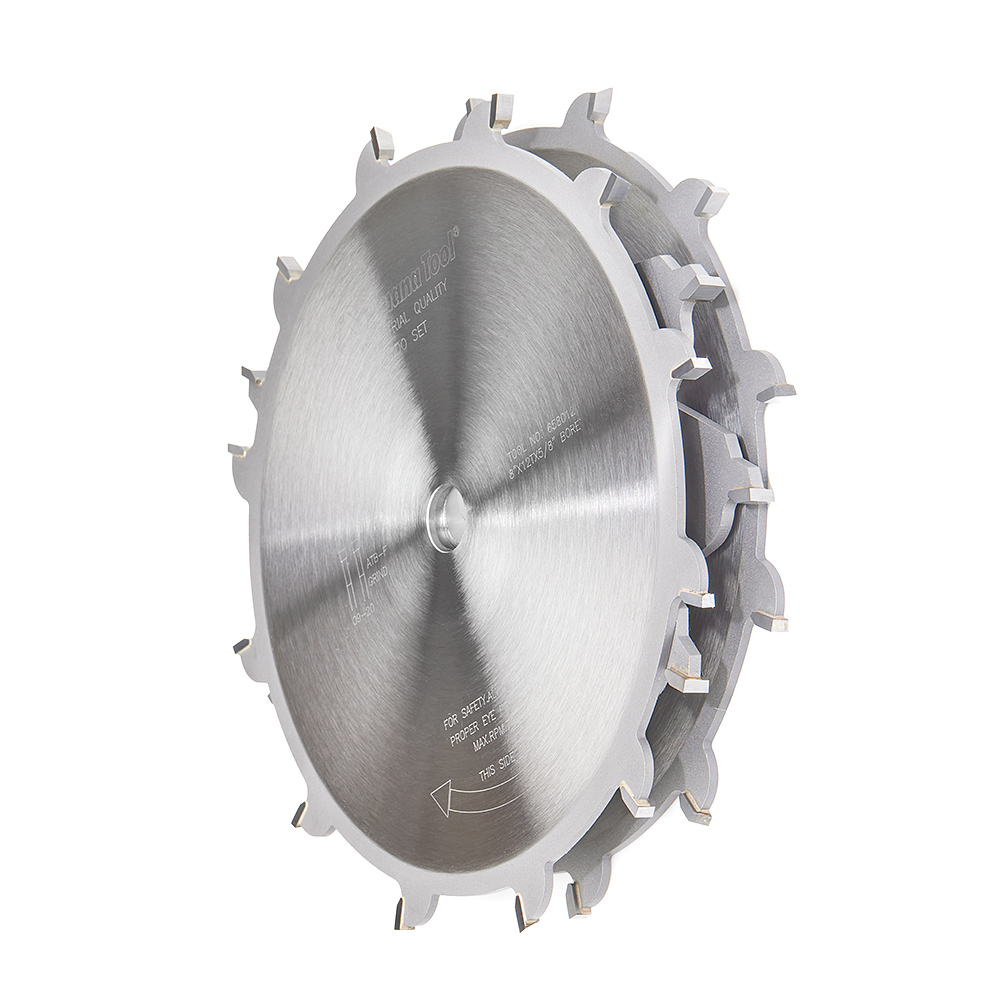

Dadoes (cross-grain cuts) and grooves (cuts with the grain) are cut efficiently on the table saw with a dado stack set. Unlike a wobbler, a stack set produces a flat-bottom cut with chip-free edges. Amana Tool® makes dado stack sets for every machine and every type of woodworking material. The standard width capacity ranges from 1/4" to 13/16". The standard set, regardless of diameter or tooth count, consists of two outside saw blades, three inside chippers and shims. The outside blades feature alternate top bevel (ATB) with flat ground (FT) grind.

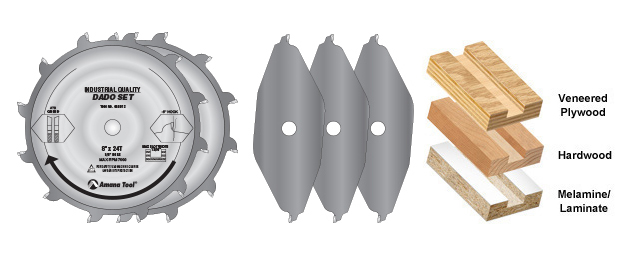

For hardwood, veneered plywood and melamine/laminate, the sets with 46-tooth outside blades are recommended.

Teeth refers to the number of teeth for each outside saw blade.
