Heavy-Duty Ripping Saw Blades

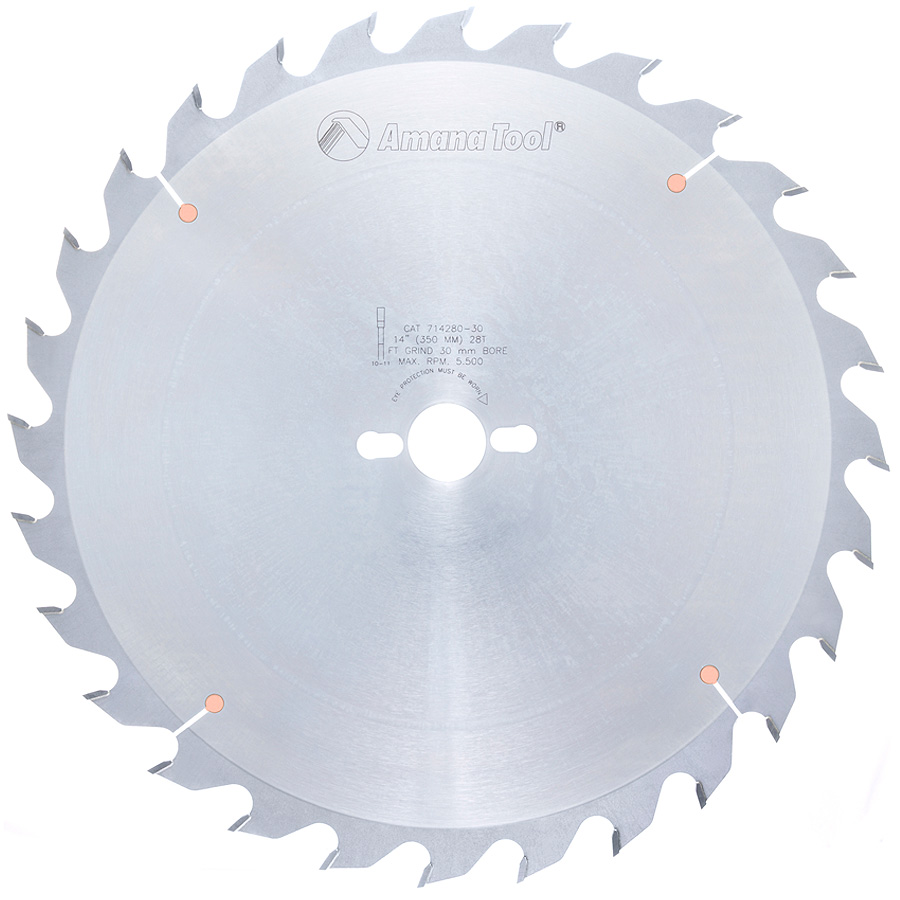

714280-30 Carbide Tipped Heavy-Duty Ripping 14 Inch Dia x 28T FT, 18 Deg, 30mm Bore

#714280-30

Specification
(D) Diameter 14 (350mm)
Teeth 28
(d) Bore 30mm
Tooth Grind FT
Hook Angle 18°
Kerf (B) .173 (4.4mm)
Pinholes 2/7/42, 2/9/46 & 2/10/60
Plate (C) .110 (2.8mm)

Heavy-duty production ripping is this blade's forte. It has all the features needed for use with power feeders and gang-ripping operations: a low tooth count, flat-top grind, deep gullets for efficient chip clearance and a thick plate for reduced vibration.

Saw Blade Safety Guidelines
