Heavy-Duty Ripping Saw Blades

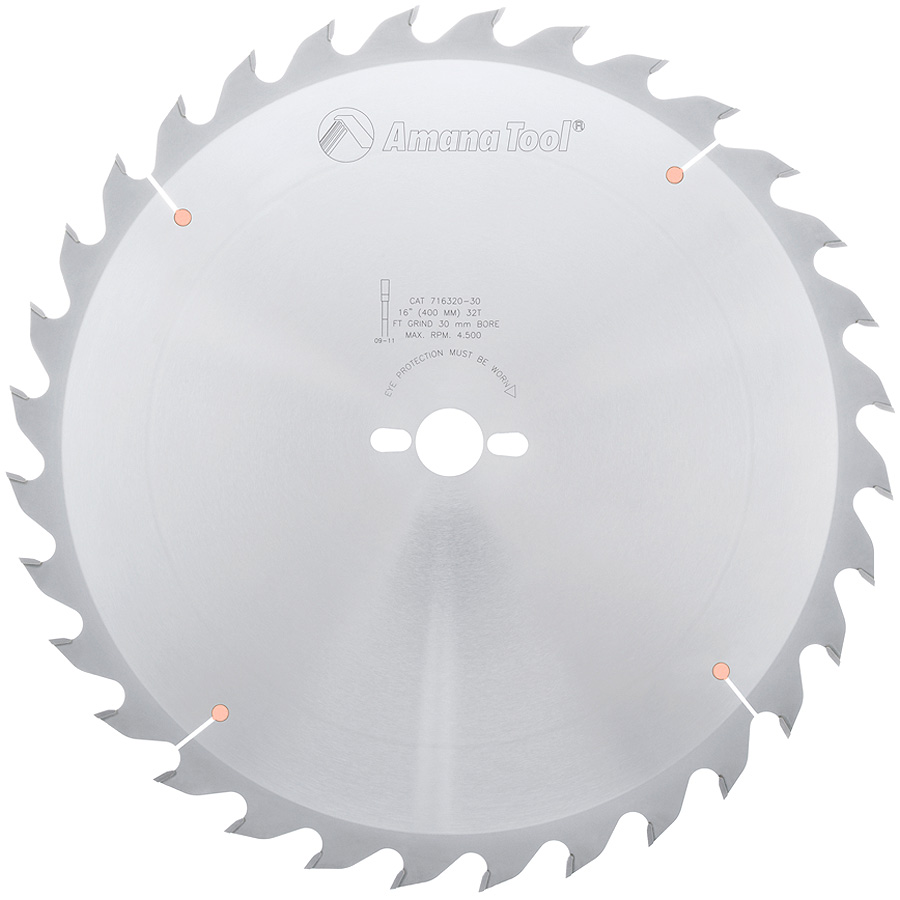

716320-30 Carbide Tipped Heavy-Duty Ripping 16 Inch Dia x 32T FT, 18 Deg, 30mm Bore

#716320-30

Specification
(D) Diameter 16 (400mm)
Teeth 32
(d) Bore 30mm
Tooth Grind FT
Kerf (B) .173 (4.4mm)
Pinholes 2/7/42, 2/9/46 & 2/10/60
Plate (C) .118 (3.0mm)

Heavy-duty production ripping is this blade's forte. It has all the features needed for use with power feeders and gang-ripping operations: a low tooth count, flat-top grind, deep gullets for efficient chip clearance and a thick plate for reduced vibration.
