5-Pc Aluminum Cutting CNC Solid Carbide Spiral 'O' Flute Pack

AMS-161 5-Pc Aluminum Cutting Solid Carbide Spiral 'O' Flute CNC Router Bit Pack, 1/8 Inch Shank

#AMS-161

Specification
(d) Shank 1/8
Specifically designed for a variety CNC machining applications excellent for cutting:

  • ALPOLIC® Copper Composite
    Material (CCM)
  • Alucobond®
  • Aluminum
  • Aluminum 5052
  • Aluminum 6061
  • Aluminum Alloys
  • Aluminum Composite
    Materials (ACM)
  • Aluminum Composite Panel (ACP)*
  • Alupanel®
  • Brass
  • Copper
  • Dibond®
  • Durabond**
  • e-panel™
  • Etalbond®
  • Gold
  • Non-Ferrous Metals
  • Plastic
  • Silver
  • Solid Surface
  • Titanium Composite Material (TCM)
  • Wood

Using the highest quality sub-micrograin carbide these bits have a special proprietary edge processing system featuring a super high polished cutting edge with a unique “mirror finish” resulting in clean cuts, less chance for chip re-welding, a superior surface finish and a longer tool life. Right hand helix and right hand cut.

Benefits of Mirror-Finish:

  • Razor sharp cutting edge
  • Effortless chip removal
  • Helps prevent chip re-welding
  • Extends tool life
  • Exceptional cut quality
  • Dissipates heat well and prevents melting

*Aluminum Composite Panel (ACP) is a type of ACM flat panel that consists of two thin aluminum sheets bonded to a non-aluminum core. ACPs are frequently used for external cladding or facades of buildings insulation and signage. **Durabond is a polyethylene core with 0.3mm colored aluminum sheet on either side pre-finished requiring no decoration.

Warning: Never attempt to cut ferrous metals with these bits. Inspect cut quality, adjust feed / speed accordingly. For optimal results and to extend tool life when trimming/cutting aluminum use mist lubricant system or air cooling.

Maximum RPM: 35,000

See below for set contents. Stored in a solid wood showcase storage box with a Plexiglas® clear lid. Includes full color booklet.

Wood Storage Box Dimensions
12" L x 6" W x 3" H

Solid Carbide CNC Spiral 'O' Flute, Aluminum Cutting Speed and Feed Chart

Download PDF

Product Questions

Question on AMS-161 5-Pc Aluminum Cutting Solid Carbide Spiral 'O' Flute CNC Router Bit Pack, 1/8 Inch Shank


Create Account or Login to ask a question

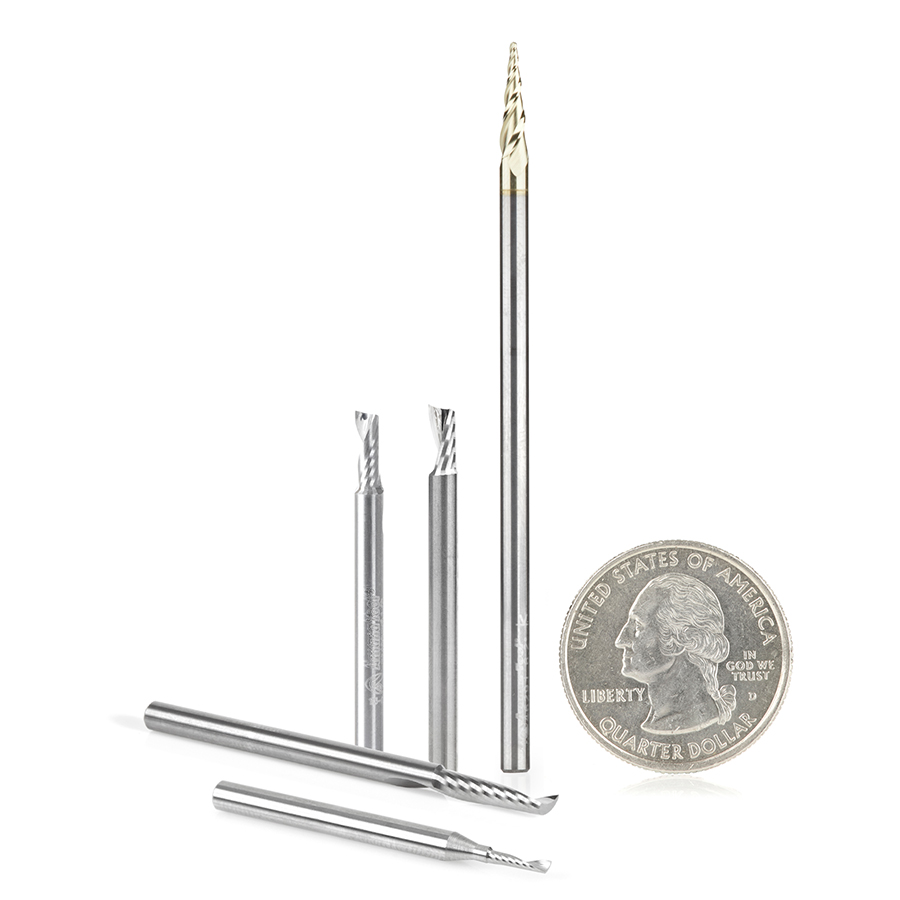

AMS-161 Set Includes:

Tool No.Product NameQty
46291 CNC 2D and 3D Carving 6.2 Deg Tapered Angle Ball Tip x 1/32 Dia x 1/64 Radius x 0.445 x 1/8 Shank x 3 Inch Long x 3 Flute Solid Carbide Up-Cut Spiral ZrN Coated Router Bit1
51459 Solid Carbide CNC Spiral 'O' Flute, Aluminum Cutting 1/8 Dia x 1/2 x 1/8 Shank Up-Cut1
51471 Solid Carbide CNC Spiral 'O' Single Flute, Aluminum Cutting 1/8 Dia x 1/4 x 1/8 Shank x 1-1/2 Inch Long Up-Cut Router Bit 1
51470 Solid Carbide CNC Spiral 'O' Single Flute, Aluminum Cutting 1/16 Dia x 1/4 x 1/8 Shank x 1-1/2 Inch Long Up-Cut Router Bit 1
51406 Solid Carbide CNC Spiral 'O' Flute, Aluminum Cutting 1/8 Dia x 5/16 x 1/8 Shank Up-Cut1
