2-Pc Aluminum Cutting CNC Solid Carbide Spiral 'O' Flute Pack
AMS-194 2-Pc Aluminum Cutting Solid Carbide Spiral 'O' Flute CNC Router Bit Pack, 1/4 Inch Shank
#AMS-194
| (d) Shank | 1/4 |
|---|
Using the highest quality sub-micrograin carbide these bits have a special proprietary edge processing system featuring a super high polished cutting edge with a unique “mirror finish” resulting in clean cuts, less chance for chip re-welding, a superior surface finish and a longer tool life. Right hand helix and right hand cut.
Specifically designed for a variety CNC machining applications excellent for cutting:
- ALPOLIC® Copper Composite
Material (CCM) - Alucobond®
- Aluminum
- Aluminum 6061
- Aluminum Alloys
- Aluminum Composite
Materials (ACM) - Aluminum Composite Panel (ACP)*
- Alupanel®
- Brass
- Copper
- Dibond®
- Durabond**
- e-panel™
- Etalbond®
- Fomex® with Aluminum Face
- Gold
- Non-Ferrous Metals
- Plastic
- Silver
- Solid Surface
- Titanium Composite Material (TCM)
- Wood
Benefits of Mirror-Finish:
- Razor sharp cutting edge
- Effortless chip removal
- Helps prevent chip re-welding
- Extends tool life
- Exceptional cut quality
- Dissipates heat well and prevents melting
*Aluminum Composite Panel (ACP) is a type of ACM flat panel that consists of two thin aluminum sheets bonded to a non-aluminum core. ACPs are frequently used for external cladding or facades of buildings insulation and signage. **Durabond is a polyethylene core with 0.3mm colored aluminum sheet on either side pre-finished requiring no decoration.
Warning: Never attempt to cut ferrous metals with these bits. Inspect cut quality, adjust feed / speed accordingly. For optimal results and to extend tool life when trimming/cutting aluminum use mist lubricant system or air cooling.
Maximum RPM: 35,000
Product Questions

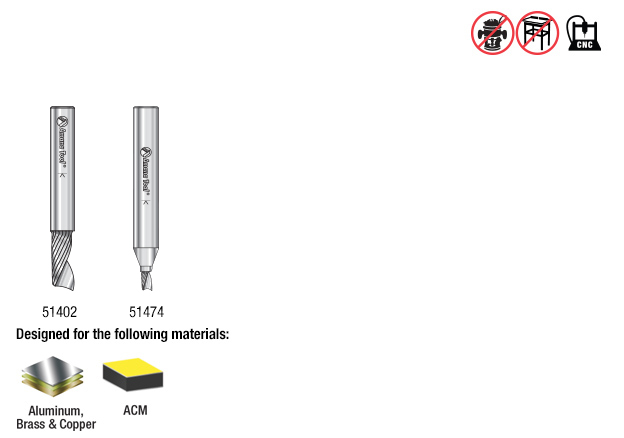

AMS-194 Set Includes:
| Tool No. | Product Name | Qty |
|---|---|---|
| 51402 Solid Carbide CNC Spiral 'O' Flute, Aluminum Cutting 1/4 Dia x 5/8 x 1/4 Inch Shank Up-Cut | 1 | |
| 51474 Solid Carbide CNC Spiral 'O' Single Flute, Aluminum Cutting 1/8 Dia x 1/4 x 1/4 Shank x 2 Inch Long Up-Cut Router Bit | 1 |
