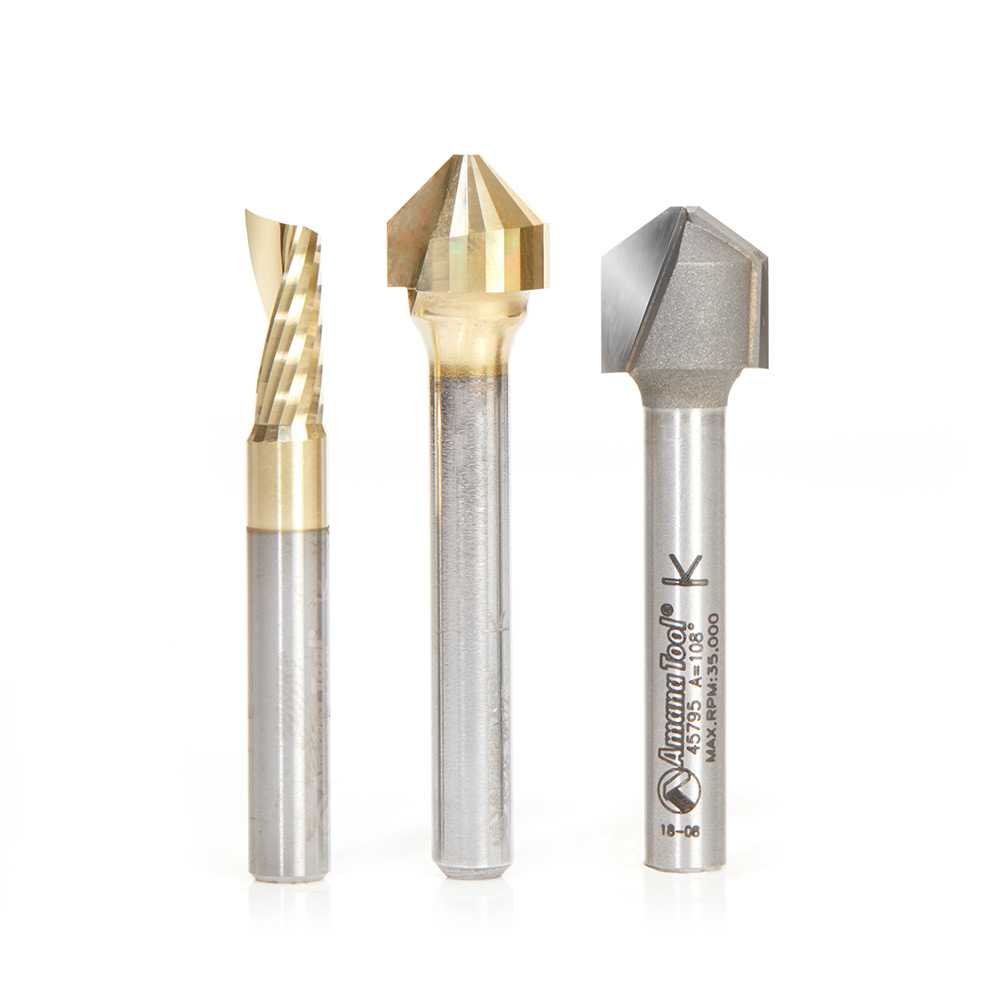

AMS-213 3-Pc ACM 90 and 108 Degree and 1/4 Inch Diameter, 1/4 Inch Shank Pack

#AMS-213

Specification
Shank (d)1/4

3-Pc ACM 90 and 108 Degree and 1/4 Inch Diameter Pack

Please or

ACM is widely used for cladding many diverse exterior and interior applications such as office buildings, hospitals, convention centers, airports, and hotels. The long lasting durability of the material makes it an excellent choice for buildings, signage, displays, etc.

Designed for cutting and scoring aluminum sandwich materials including:

  • Acetate
  • Aluminum, Brass, Bronze, Clay, Zinc & Wood Composite Panels
  • Aluminum 5052
  • Aluminum Composite Materials (ACM)
  • Aluminum Composite Panel (ACP)*
  • ALPOLIC® Copper Composite Material (CCM)
  • Alucobond®
  • Alupanel®
  • Bakelite
  • Dibond®
  • Durabond**
  • e-panel™
  • Etalbond®
  • Nylon
  • PE and FR Cores
  • Phenolics
  • Plastic/Acrylic
  • Plexiglas®
  • PVC
  • Thermoplastics
  • Titanium Composite Material (TCM)
  • Wood

*Aluminum Composite Panel (ACP) is a type of ACM flat panel that consists of two thin aluminum sheets bonded to a non-aluminum core. ACPs are frequently used for external cladding or facades of buildings, insulation, and signage. **Durabond is a polyethylene core with 0.3mm colored aluminum sheet on either side, pre-finished requiring no decoration.

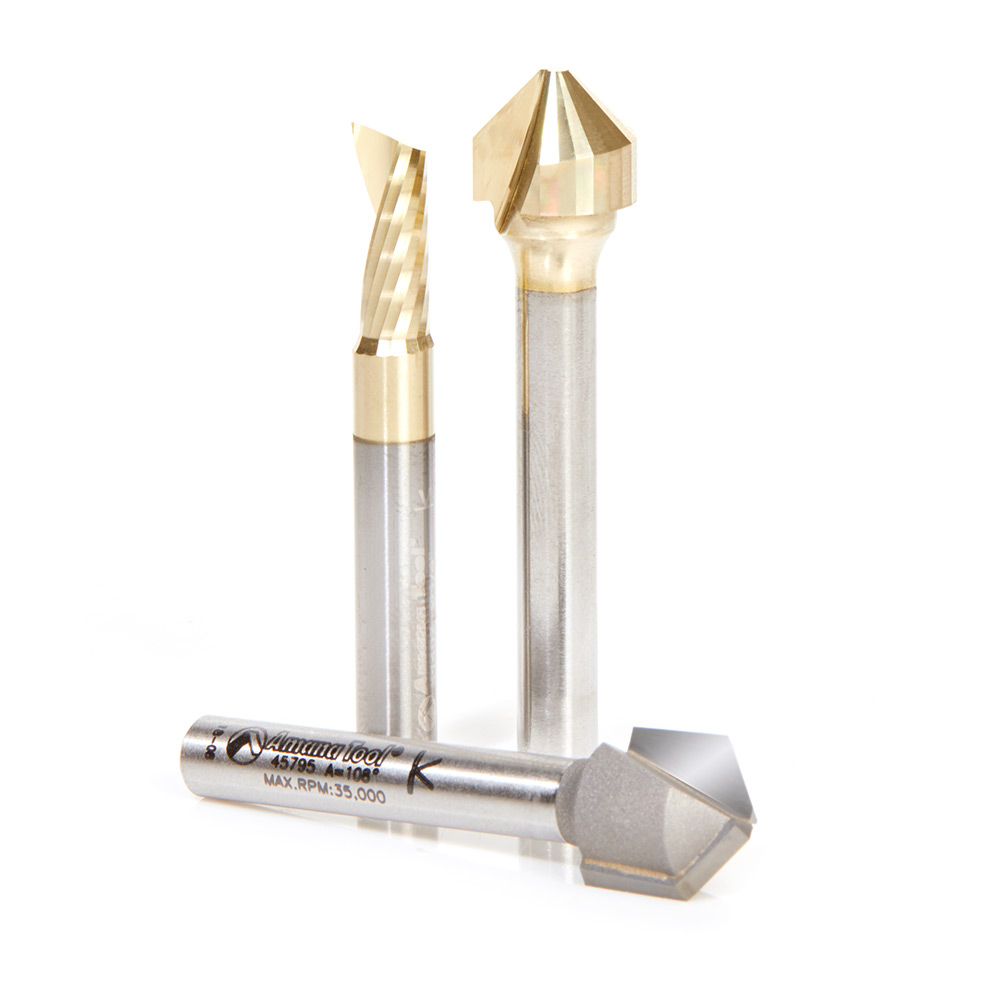

AMS-213 Set Includes:

Tool No.Product NameQty
45745 Carbide V-Groove 90 Deg. Folding for Composite Material Panels Like TCM, CCM, ACM, 0.090 Inch Tip Width x 3/8 x 1/2 Dia. x 1/4 Inch Shank ZrN Coated Router Bit1
45795 Carbide Tipped Double Edge Folding V-Groove 108 Deg x 0.090 Inch Tip Width x 3/8 x 1/2 Dia. x 1/4 Inch Shank1
51402-Z Solid Carbide CNC Spiral 'O' Flute, Aluminum Cutting 1/4 Dia x 5/8 x 1/4 Shank Up-Cut ZrN Coated Router Bit1
