6-Pc Countersink Set, Hex Shank

AMS-628-T 6-Pc Carbide Tipped Countersink with Adjustable Depth Stop and No-Thrust, No-Mar Ball Bearing Set with Quick Release Shank and Replacement HSS Drills Packed In Tanos Systainer Plastic Case

#AMS-628-T

Specification
(d) Hex Shank	1/4
Countersink Dia.	3/8"

Skip to the end of the images gallery

AMS-628-T 6-Pc Carbide Tipped Countersink with Adjustable Depth Stop and No-Thrust, No-Mar Ball Bearing Set with Quick Release Shank and Replacement HSS Drills Packed In Tanos Systainer Plastic Case

Skip to the beginning of the images gallery

Item Description

3/8" Countersink • 1/4" Quick Release Hex Shank

Used to countersink holes for the heads of screws in woods, plastic and non-ferrous materials. The 2-flute integral design ensures uniform and concentric results each and every time. Carbide tips provide chip free hole edges and lasts much longer than steel countersinks.

Available in a wide variety of sizes, complete with the HSS M2 fully ground drill bit.

Excellent for Drilling:

Natural Woods
Man-Made Boards
MDF
Chipboard
Plywood
Aluminum/Non-Ferrous
Aluminum Composite Material (ACM)
Composites
Composite Decking Materials
Acrylic

Warning: When drilling aluminum/non-ferrous materials, for optimal results and extended tool life use lubricant or air cooling. Make sure the material is fixed and drill is stable during drilling.

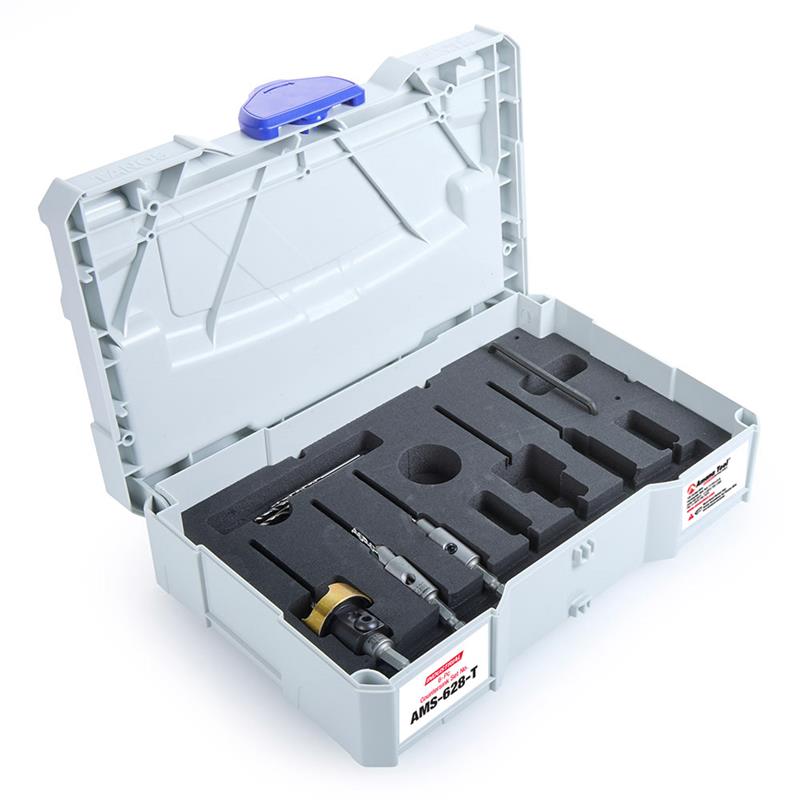

Stored in a Tanos Systainer Plastic Case with a foam insert to keep bits secure.

Product Q&A

Product Questions

Question on AMS-628-T 6-Pc Carbide Tipped Countersink with Adjustable Depth Stop and No-Thrust, No-Mar Ball Bearing Set with Quick Release Shank and Replacement HSS Drills Packed In Tanos Systainer Plastic Case

Create Account or Login to ask a question

AMS-628-T Set Includes:

Tool No.	Product Name	Qty
55227	55227 Carbide Tipped 82 Degree Countersink with Adjustable Depth Stop and No-Thrust Ball Bearing, 3/8 Dia x 1/8 Drill Dia x 1/4 Inch Quick Release Hex Shank for Wood Screw #6	1
55274	55274 Replacement Carbide Tipped Countersink with Slow Spiral HSS M2 Drill for #8 Size Screw 5/32 Drill Dia x 1/4 Hex Shank for #55229 Adjustable No-Thrust Countersink	1
630-262	630-262 High Speed Steel (HSS) M2 DIN 338 Fully Ground Taper Point 3/32 Dia. x 1-1/8 x 2-1/4 Long Drill	1
630-266	630-266 High Speed Steel (HSS) M2 DIN 338 Fully Ground Taper Point 1/8 Dia. x 1-1/2 x 2-3/4 Long Drill	1
630-270	630-270 High Speed Steel (HSS) M2 DIN 338 Fully Ground Taper Point 5/32 Dia. x 1-3/4 x 3-1/8 Long Drill	1
55271	55271 Replacement Carbide Tipped Countersink with Slow Spiral HSS M2 Drill for #4 Size Screw 3/32 Drill Dia x 1/4 Hex Shank for #55225 Adjustable No-Thrust Countersink	1
