12-Pc Countersink Set, Hex Shank
AMS-630 12-Pc Carbide Tipped Countersink with Adjustable Depth Stop and No-Thrust, No-Mar Ball Bearing Set with Quick Release Hex Shank and Replacement HSS Drills
#AMS-630
| (d) Hex Shank | 1/4 |
|---|---|
| Countersink Dia. | 3/8" |
3/8" Countersink • 1/4" Quick Release Hex Shank
Used to countersink holes for the heads of screws in woods, plastic and non-ferrous materials. The 2-flute integral design ensures uniform and concentric results each and every time. Carbide tips provide chip free hole edges and lasts much longer than steel countersinks.
Available in a wide variety of sizes, complete with the HSS M2 fully ground drill bit.
Excellent for Drilling:
- Natural Woods
- Man-Made Boards
- MDF
- Chipboard
- Plywood
- Aluminum/Non-Ferrous
- Aluminum Composite Material (ACM)
- Composites
- Composite Decking Materials
- Acrylic
Warning: When drilling aluminum/non-ferrous materials, for optimal results and extended tool life use lubricant or air cooling. Make sure the material is fixed and drill is stable during drilling.
Product Questions

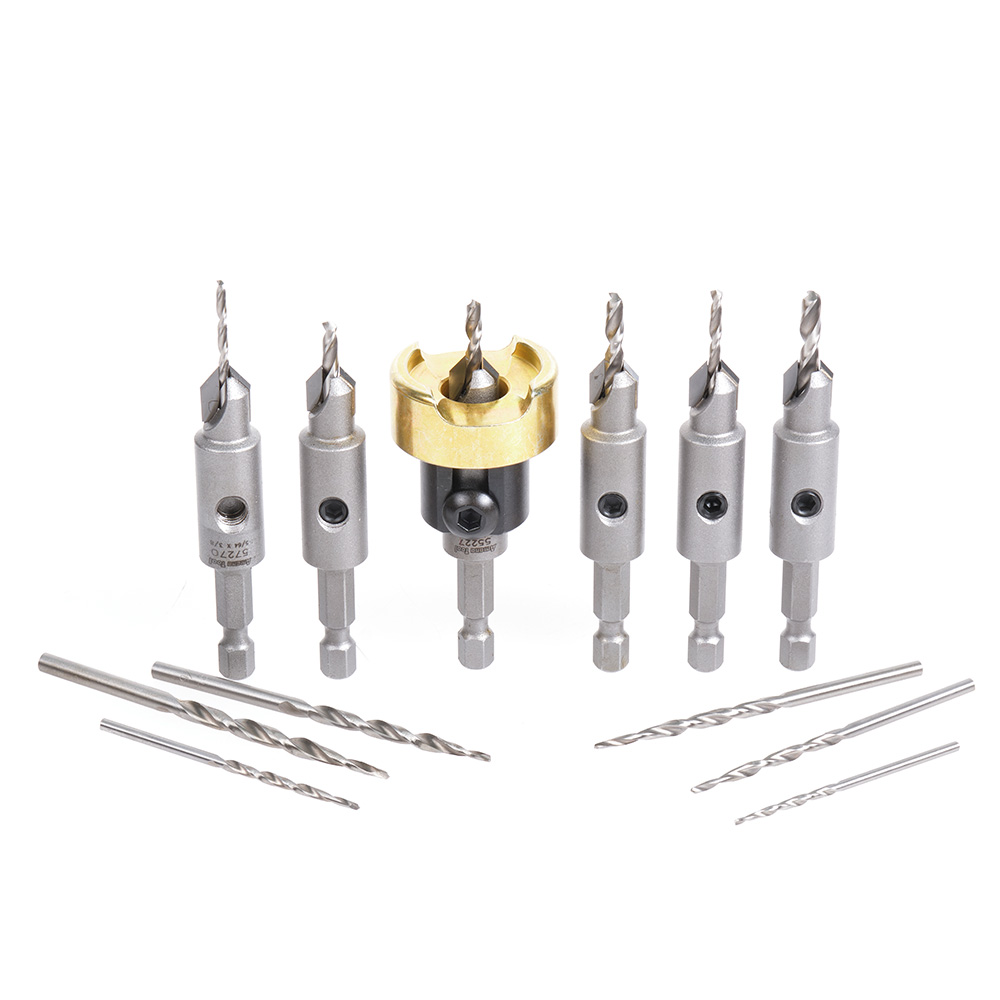

AMS-630 Set Includes:
| Tool No. | Product Name | Qty |
|---|---|---|
| 55227 Carbide Tipped 82 Degree Countersink with Adjustable Depth Stop and No-Thrust Ball Bearing, 3/8 Dia x 1/8 Drill Dia x 1/4 Inch Quick Release Hex Shank for Wood Screw #6 | 1 | |
| 55272 Replacement Carbide Tipped Countersink with Slow Spiral HSS M2 Drill for #6 Size Screw 3/8 Drill Dia x 1/4 Hex Shank for #55227 Adjustable No-Thrust Countersink | 1 | |
| 55273 Replacement Carbide Tipped Countersink with Slow Spiral HSS M2 Drill for #6 Size Screw 9/64 Drill Dia x 1/4 Hex Shank for #55228 Adjustable No-Thrust Countersink | 1 | |
| 55274 Replacement Carbide Tipped Countersink with Slow Spiral HSS M2 Drill for #8 Size Screw 5/32 Drill Dia x 1/4 Hex Shank for #55229 Adjustable No-Thrust Countersink | 1 | |
| 630-262 High Speed Steel (HSS) M2 DIN 338 Fully Ground Taper Point 3/32 Dia. x 1-1/8 x 2-1/4 Long Drill | 1 | |
| 630-266 High Speed Steel (HSS) M2 DIN 338 Fully Ground Taper Point 1/8 Dia. x 1-1/2 x 2-3/4 Long Drill | 1 | |
| 630-268 High Speed Steel (HSS) M2 DIN 338 Fully Ground Taper Point 9/64 Dia. x 1-11/16 x 2-15/16 Long Drill | 1 | |
| 630-270 High Speed Steel (HSS) M2 DIN 338 Fully Ground Taper Point 5/32 Dia. x 1-3/4 x 3-1/8 Long Drill | 1 | |
| 630-260 High Speed Steel (HSS) M2 DIN 338 Fully Ground Taper Point 5/64 Dia. x 15/16 x 2-1/8 Long Drill | 1 | |
| 630-264 High Speed Steel (HSS) M2 DIN 338 Fully Ground Taper Point 7/64 Dia. x 1-3/8 x 2-11/16 Long Drill | 1 | |
| 55271 Replacement Carbide Tipped Countersink with Slow Spiral HSS M2 Drill for #4 Size Screw 3/32 Drill Dia x 1/4 Hex Shank for #55225 Adjustable No-Thrust Countersink | 1 | |
| 57270 Replacement Carbide Tipped Countersink with Slow Spiral HSS M2 Drill for #4 Size Screw 3/8 Drill Dia x 1/4 Hex Shank for #55226 Adjustable No-Thrust Countersink | 1 |
