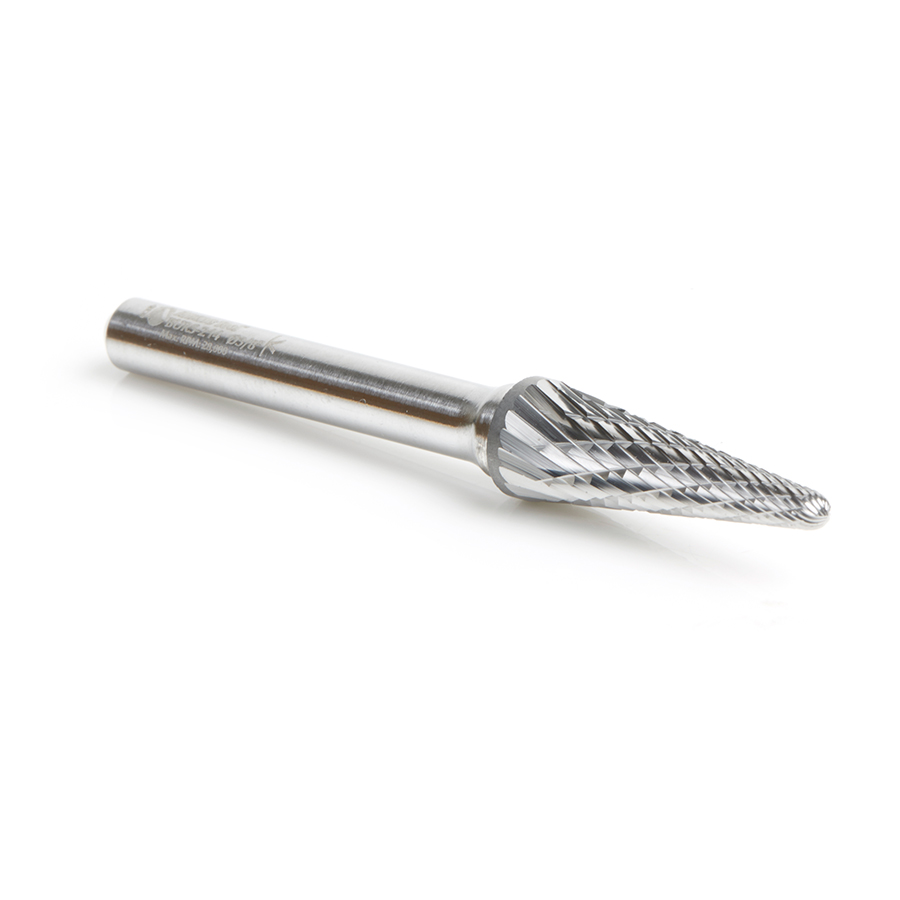

BURS-214 Solid Carbide Radius Cone Shape 3/8 Dia x 1-1/16 x 1/4 Shank Double Cut SL Burr Bit for Die-Grinders

#BURS-214

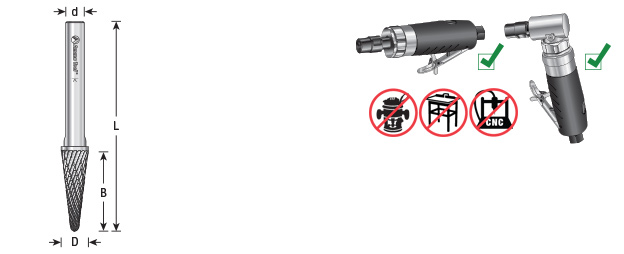

Specification
Diameter (D)3/8
Cutting Height (B)1-1/16
Shank (d)1/4
Overall Length (L)2-13/16
Ref #SL-3DC
StyleDouble Cut

Solid Carbide Head Brazed into Steel Shank Radius Cone Shape Double Cut SL Burr Bits for Die-Grinders

Please or

Benefits of the Double Cut (DC) flute include rapid removal of a broad range of materials combined with excellent operator control. It does this by incorporating a positive cutting rake angle that gives great “bite” into the material and yet,­­­ is not so aggressive that the operator fatigues quickly after using it in a hand piece. The steel shanks are ground, which sets them apart from our competitors. The solder joints are clean, with no excess solder gaping out from the sides between the carbide bud and the shank

Applications:To be used with air or electrically driven hand die-grinder with a typical collet mechanism or knee mill with an air-driven spindle speeder such as an Air Turbine product. Use of a quality spindle speeder may greatly improve performance of miniature tooling.

Warning: Not to be used in conventional Routers

Excellent for cutting:

  • Aluminum
  • Brass
  • Bronze
  • Copper
  • Cast Iron
  • Steel: 40-55rc
  • Steel: 55-60rc
  • Steel: Carbon
  • Steel: Nickel
  • Chrome
  • Stainless Steel
  • Steel Weldments
  • Titanium

More sizes, shapes & types available upon request.
