CNC PCD Spoilboard Surfacing, Rabbeting, Flycutter, Slab Leveler & Surface Planer Router Bits

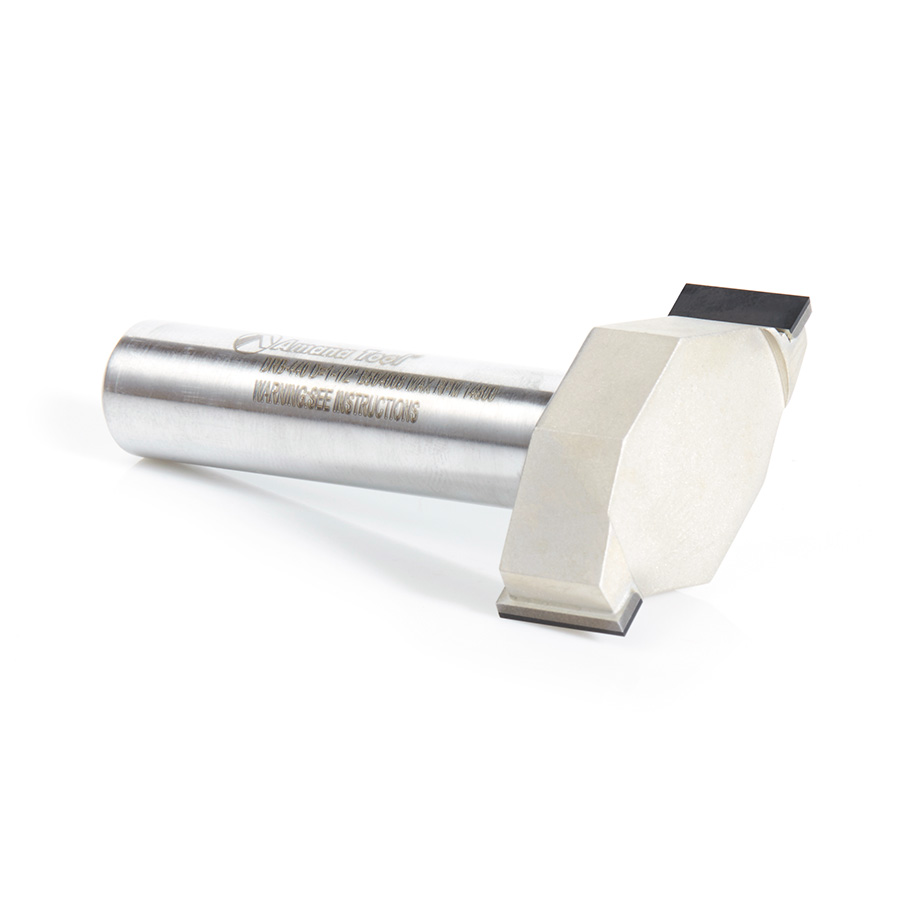

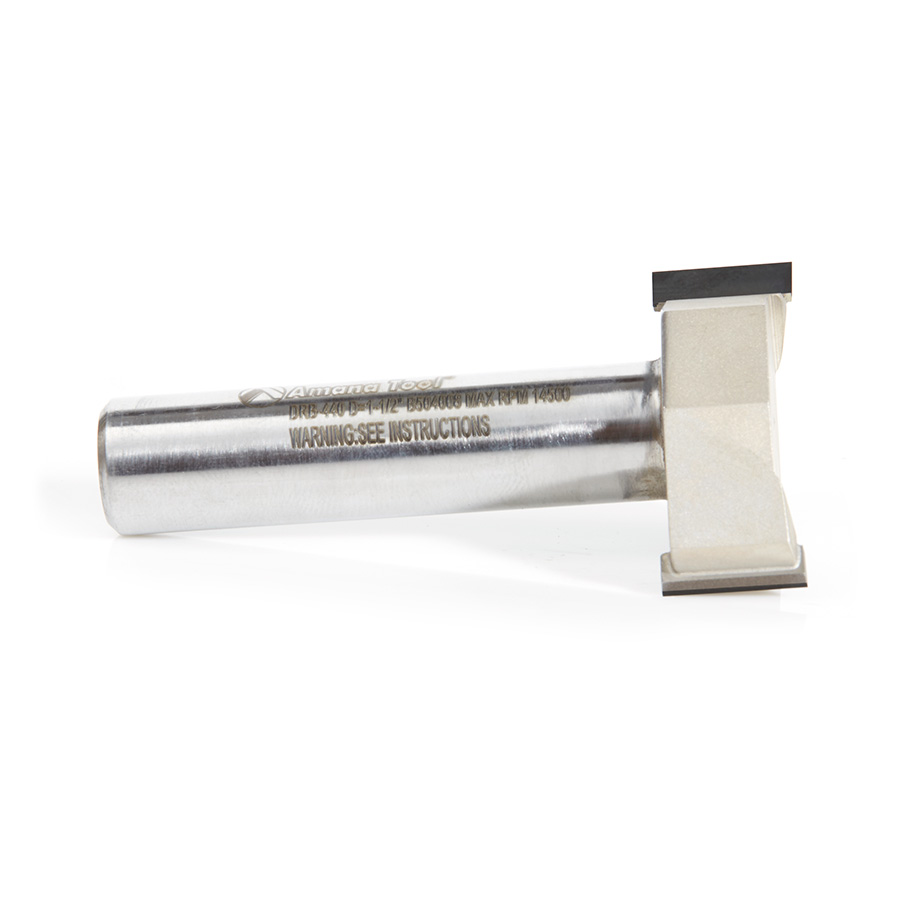

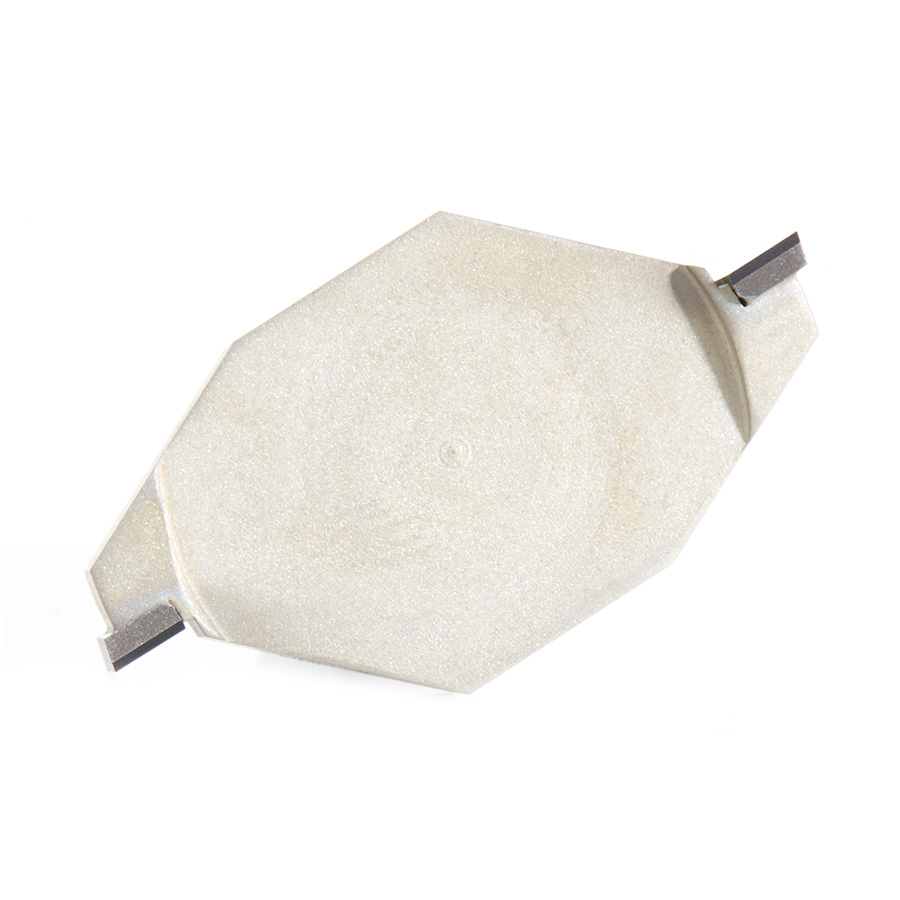

DRB-440 Polycrystalline Diamond (PCD) Tipped CNC Spoilboard Surfacing, Rabbeting, Flycutter, Slab Leveler & Surface Planer 1-1/2 Dia x 1/2 Inch x 1/2 Shank

#DRB-440

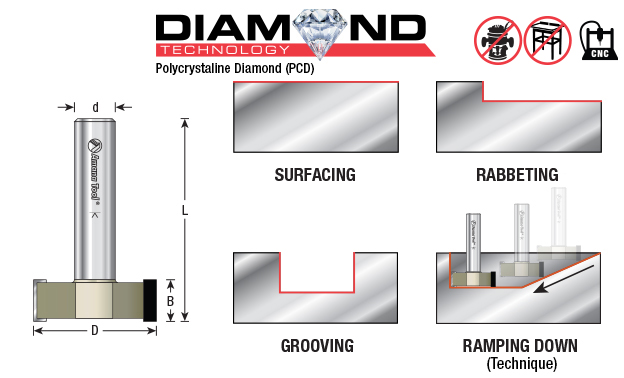

Specification
(D) Diameter1-1/2
(B) Cutting Height1/2
(d) Shank1/2
Overall Length (L)2-1/2
Max RPM14,500
Flutes2

Diamond is the hardest material on the earth. Polycrystalline Diamond (PCD) tooling is manufactured in a high-temperature and high-pressure laboratory that fuses diamond particles onto a carbide substrate, which allows the diamond to be brazed onto a tool body.

If you’re looking for the ultimate in tooling you’ve found it! Amana Tool®'s PCD tipped compression CNC router bits will groove joint rabbet and surface plane a wide variety of tough abrasive materials including composites, particleboard, MDF (both raw or with melamine), veneer and hardwoods. The cutting edge lasts much longer than carbide for extremely long life.

Perfect for:
  • Resurfacing spoilboards using CNC
  • Planing large glued up panels using CNC
  • Surfacing and finishing wood using timber slab machines
  • Rabbeting or slotting

Excellent for Cutting:
  • Aluminum Bronze & Copper
  • Aluminum Composites
  • Aluminum Composite Material (ACM)
  • Composites
  • MDF
  • Particle Board
  • Plywood Veneer
  • Wood

Benefits of Diamond Technology
  • Harder cutting edge provides higher resistance to wear
  • Cut thousands of feet more than carbide without changing tool saving setup time
  • Optimized machine tool efficiency
  • Quality of finish is often significantly improved



Use "Ramp Down" technique.

Vectric compatible tool file for DRB-440 available for download, click here.

DRB-440 DXF

File Size : 160.82 KB
Create account or Login to download

Product Questions

Question on DRB-440 Polycrystalline Diamond (PCD) Tipped CNC Spoilboard Surfacing, Rabbeting, Flycutter, Slab Leveler & Surface Planer 1-1/2 Dia x 1/2 Inch x 1/2 Shank


Create Account or Login to ask a question

Polycrystalline Diamond (PCD) CNC Spoilboard Speed and Feed Chart

Download PDF
