CNC Polycrystalline Diamond (PCD) Lamello P-System Router Bit

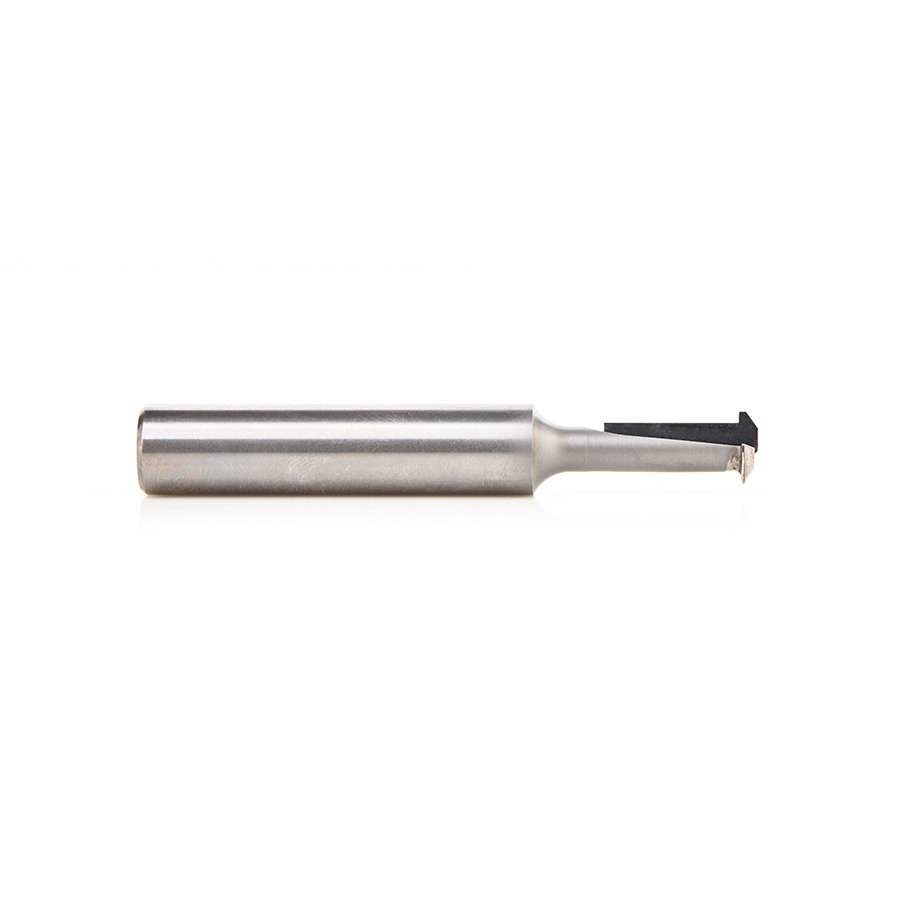

DRB-LAM98 CNC Polycrystalline Diamond (PCD) 9.8mm Dia x 20mm x 12mm Shank Lamello P-System Router Bit
#DRB-LAM98
| (D) Diameter | 9.8mm |
|---|---|
| (B) Cutting Height | 20mm |
| (d) Shank | 12mm |
| Overall Length (L) | 80mm |
| Flutes | 1 |
Suitable for making the groove for Lamello P-System with CNC router with 3 and/or 5 axis. RH Rotation.

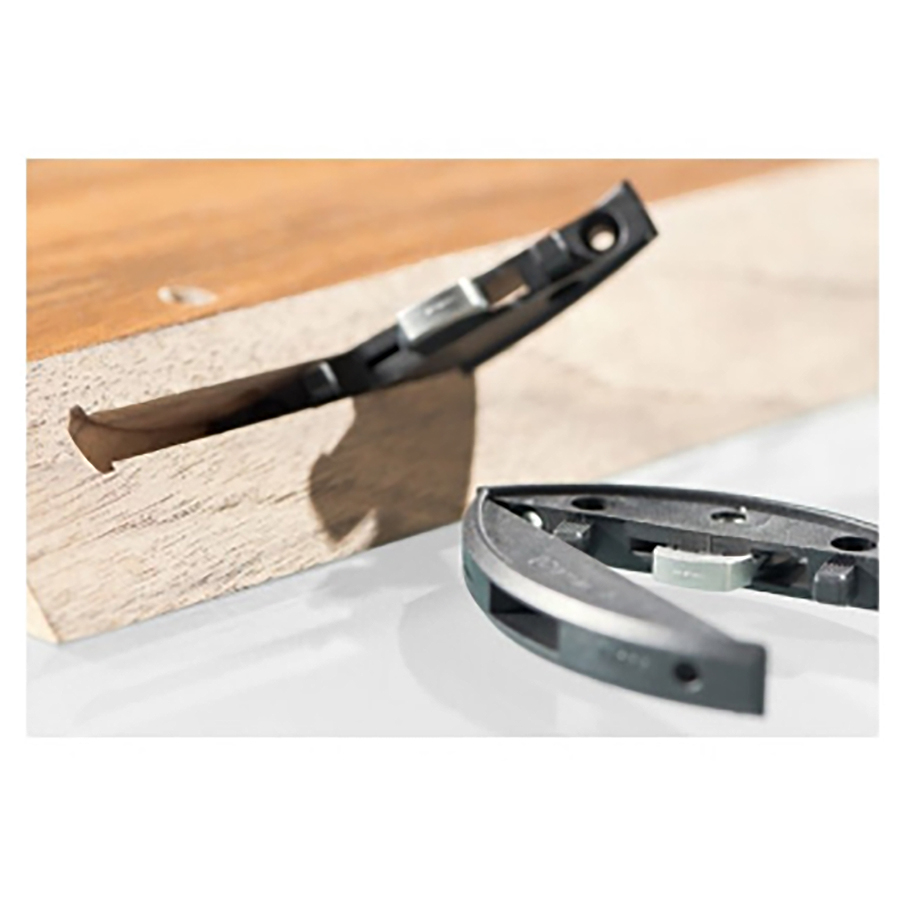

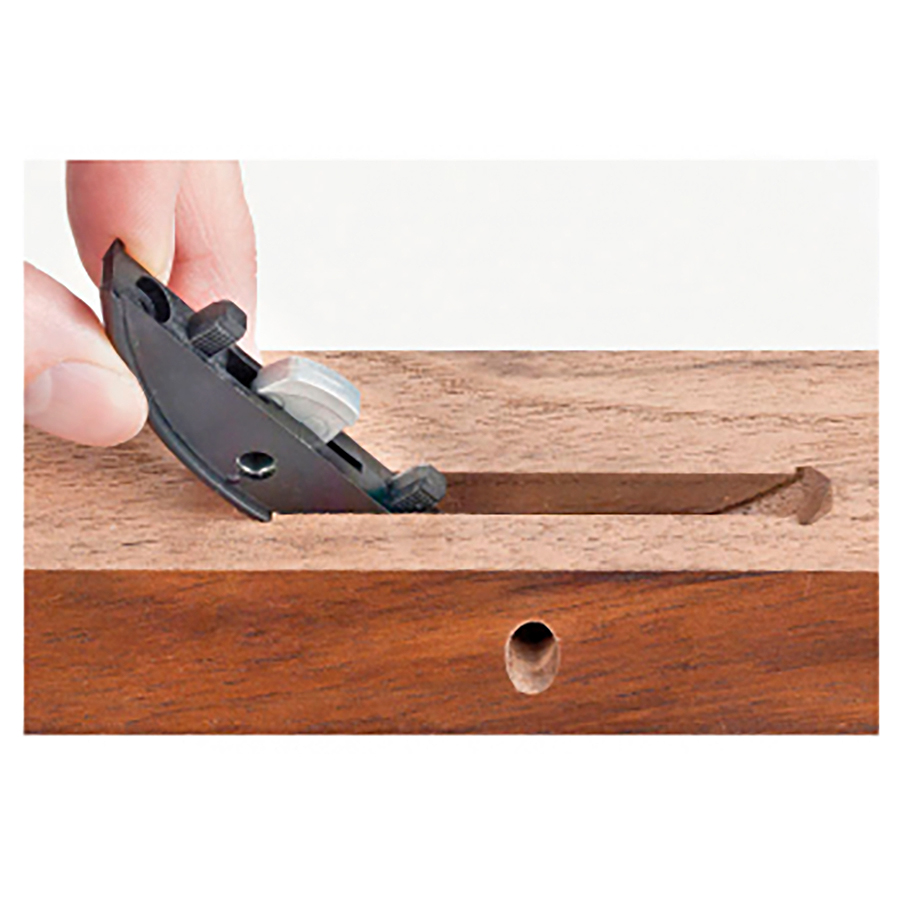

Suitable for making Clamex P Connecting Fitting (Clamex P - Tenso P – Divario P) for furniture, shelves unit and Kitchen.
Recommended for grooving corner and longitudinal joints on Hardwoods, Veneered and Laminated MDF
Diamond is the hardest material on the earth. Polycrystalline Diamond (PCD) tooling is manufactured in a high-temperature and high-pressure laboratory that fuses diamond particles onto a carbide substrate which allows the diamond to be brazed onto a tool body.
Benefits of Diamond Technology
- Harder cutting edge provides higher resistance to wear
- Cut thousands of feet more than carbide without changing tool saving setup time
- Optimized machine tool efficiency
- Quality of finish is often significantly improved
Max RPM 24000
PCD-Lamello-P-System-Speed-Chart
Download PDF
