Hollow Ground Saw Blades

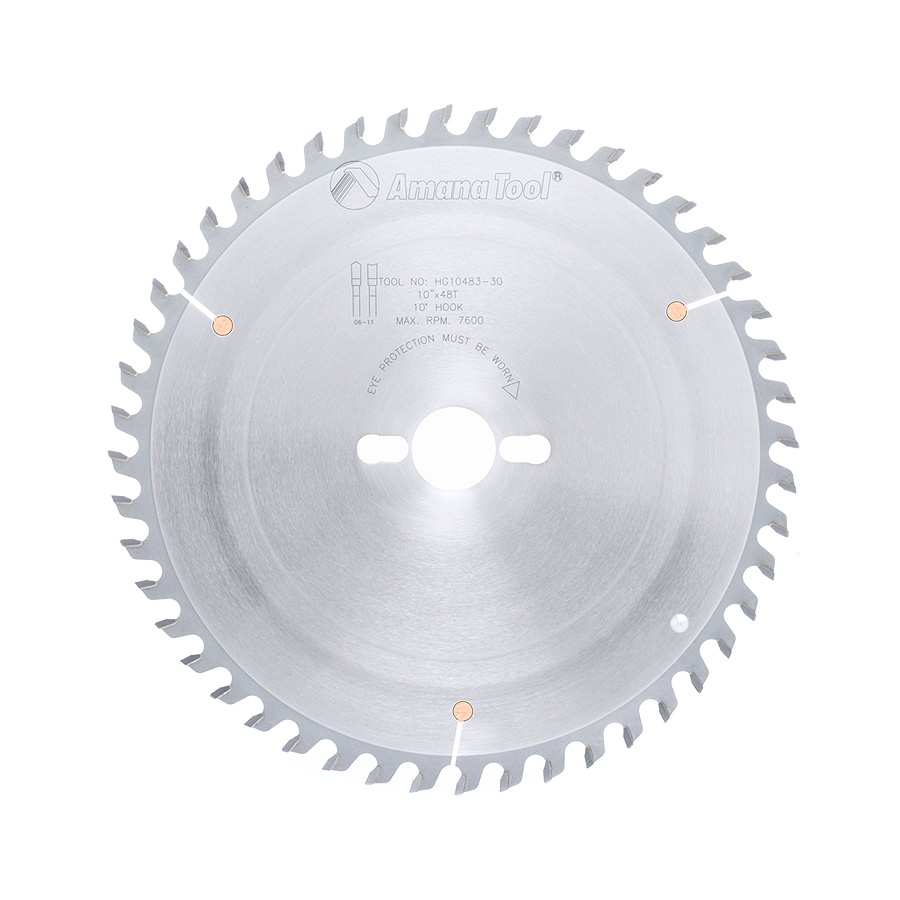

HG10483-30 Carbide Tipped Hollow Ground 10 Inch Dia x 48T HG, 10 Deg, 30mm Bore
#HG10483-30
| (D) Diameter | 10 (253mm) |
|---|---|
| Teeth | 48 |
| (d) Bore | 30mm |
| Tooth Grind | HG |
| Hook Angle | 10° |
| Kerf (B) | .126 (3.2mm) |
| Pinholes | 2/7/42, 2/9/46 & 2/10/60 |
| Plate (C) | .087 (2.2mm) |

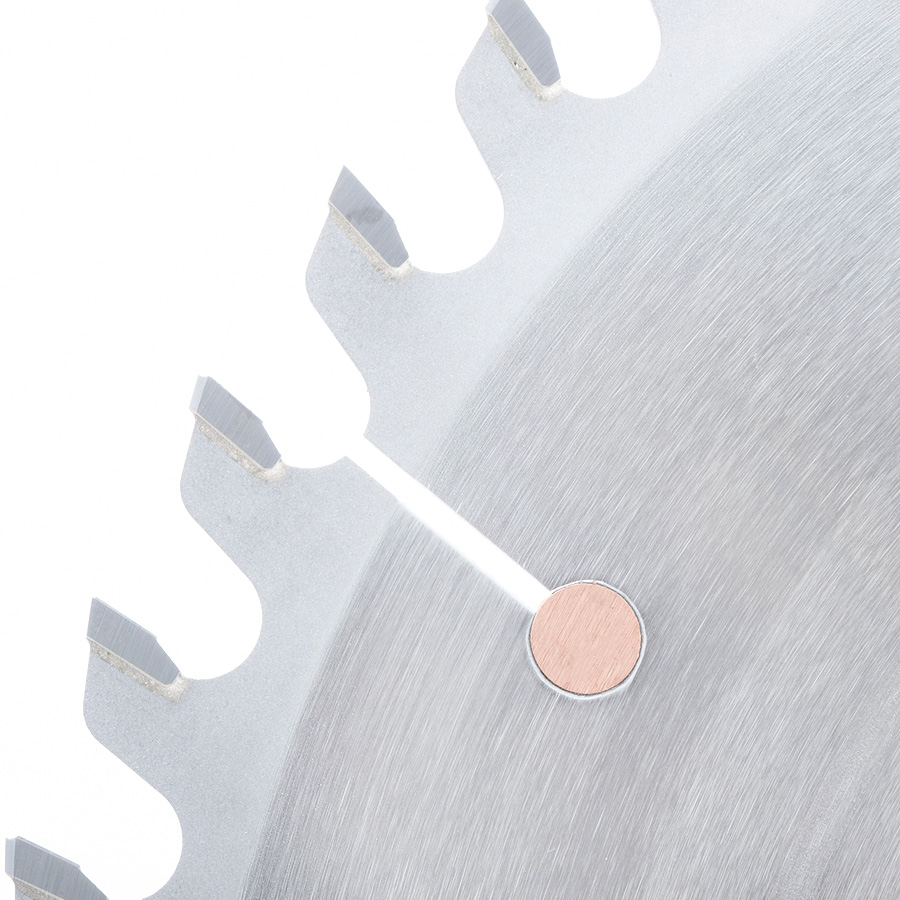

This specially designed saw blade makes exceptionally smooth cuts in melamine and other coated boards, without the need for scoring. The unique hollow grind, which pairs a triple-chip tooth with a raker tooth that's ground to a concave profile, produces crisp, clean cuts. The positive hook angle is particularly suitable for horizontal sliding table saws such as those made by Striebig®, Altendorf®, SCM and Holz-Her®. For Holz-Her® 220mm panel saws.
