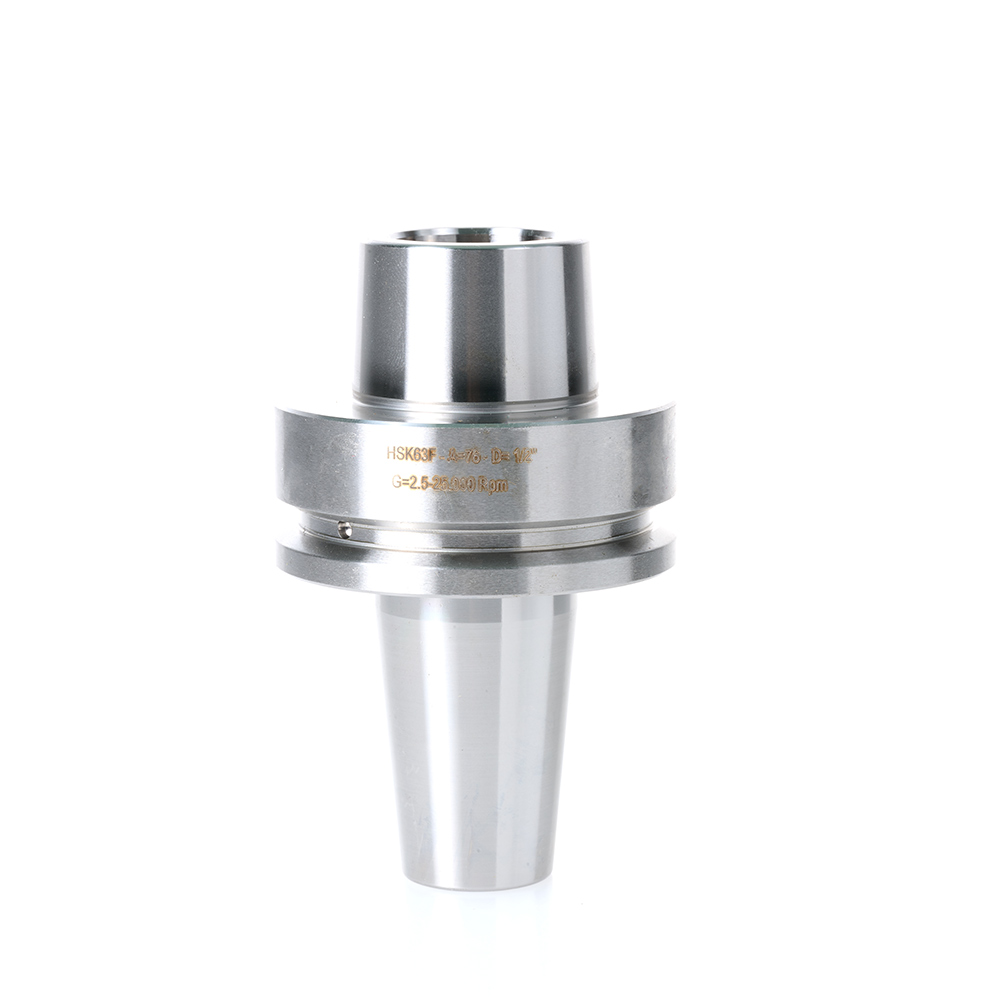

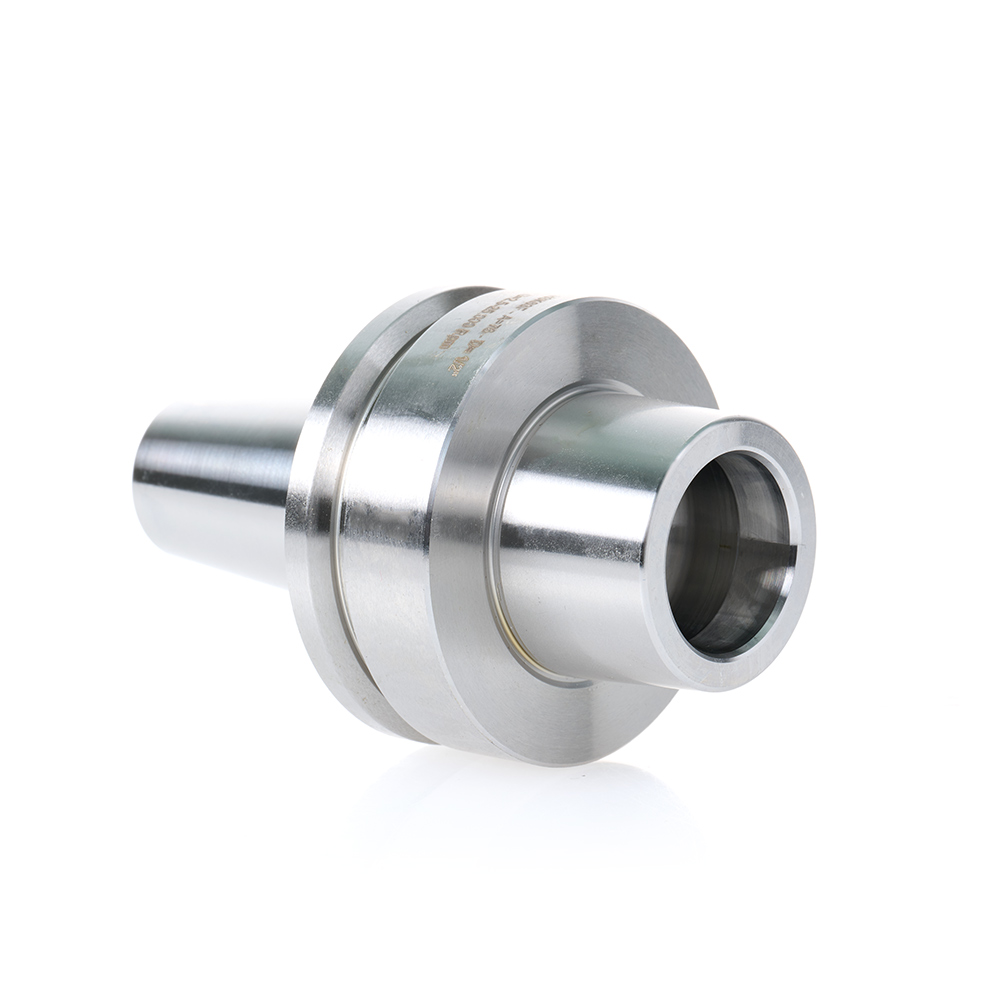

HO-162 63mm (2-15/32") Shrink Fit Chuck HSK-63F for 1/2" Shank

Shrink Fit Chuck HSK-63F

The new shrink fit chucks are high-precision toolholders designed to provide enhanced accuracy by minimizing coupling. This is achieved through a unique thermal clamping process that tightly grips the tool’s shank.

Here’s how it works: First, the collet tip is heated using a specialized shrink fit unit, which causes it to expand. The tool shank is then inserted into the collet, and the cooling machine cools the collet back to ambient temperature. This process ensures a secure fit, offering the operator superior precision, improved stability, faster feed rates for high performance, and ultimately longer tool life.

With this innovative system, you can expect to achieve optimal performance and efficiency in your machining processes.

Concentricity ≤ 0,003 mm (0.0001")

Short and slim for better rigidity and improve chipping ejection

High precision toolholders guaranteed by thermally induced shrink fit

High rigidity and balance for heavy CNC working

For clamping steel and solid carbide cutting tool

Balanced to 24.000 RPM at G 2,5

Right and left-hand rotation

Cutting tool shank must have tolerance h6 with cylindrical shank (no flats).
