HSS Single Straight 'O' Flute, Plastic Cutting Router Bits

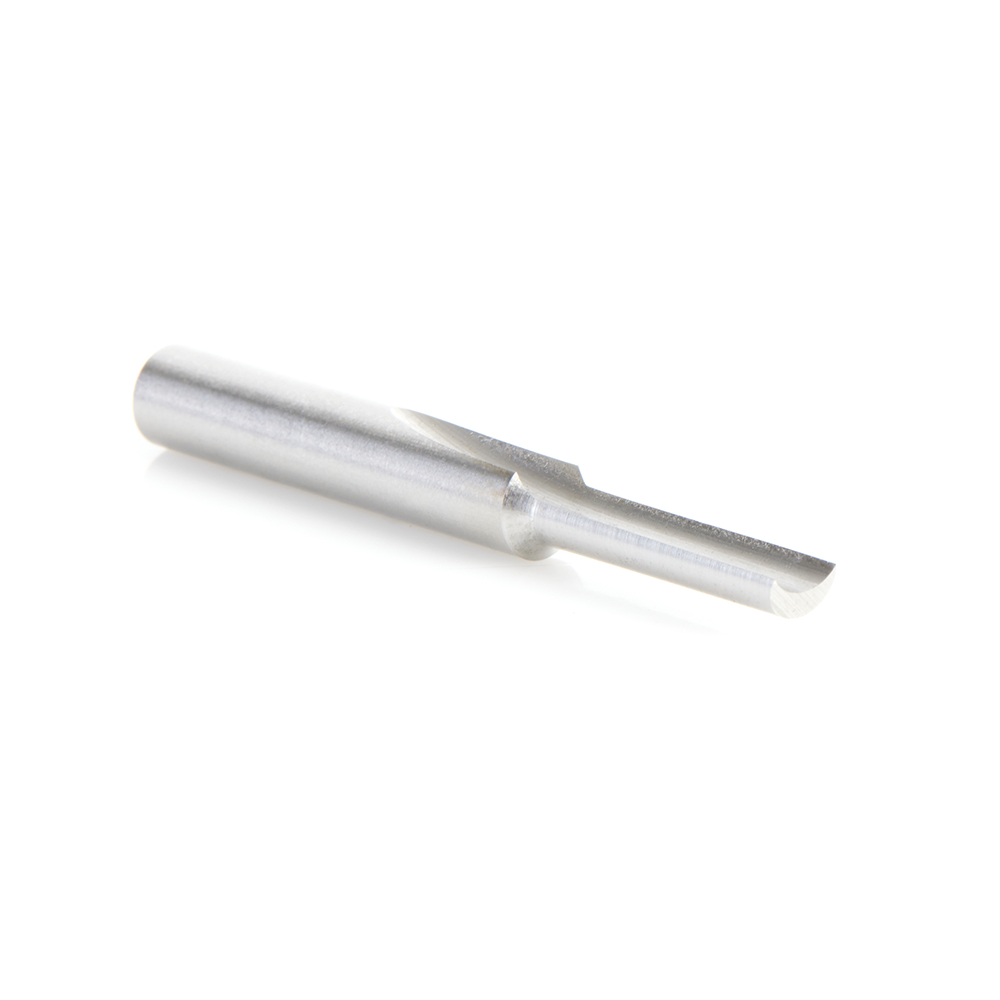

HSS1509 HSS Single Straight 'O' Flute Plastic Cutting 3/16 Dia x 3/4 x 1/4 Inch Shank
#HSS1509
| Diameter (D) | 3/16 |
|---|---|
| Cutting Height (B) | 3/4 |
| Shank (d) | 1/4 |
| Overall Length (L) | 2 |
| Flutes | 1 |
Provide smooth finish in both soft and hard plastics. Excellent for Hand-Fed Operations. May be used in air routers with guide bushing.
Excellent for cutting:
- Soft & Hard Plastic
- Acrylonitrile Butadiene Styrene (ABS)
- Coroplast®*
- Expanded Polystyrene Foam (EPS)
- Fomex®
- High Density Polyethylene (HDPE)
- High Impact Polystyrene (HIPS)
- High Pressure Laminates (HPL)
- Hydroxy-Terminated Polyether (HTPE)
- Low Density Polyethylene (LDPE)
- LubX®
- Perspex® Cast Acrylic Sheet
- Polycarbonate
- Polyethylene
- Polyethylene Terephthalate Glycol-Modified (PETG / PET-G)
- Polyoxymethylene (POM), also known as Acetal, Polyacetal and Polyformaldehyde.
- Polypropylene Extruded Acrylic
- Poly (methyl methacrylate) (PMMA)
- PVC
- Sign Foam
- StarBoard® (King StarBoard 'R') High Density Polyethylene Sheet (HDPE)
- Thermoplastic Polyolefin (TPO)
- Ultra High Molecular Weight Polythylene (UHMWPE)
- Urethane
- Wood
* A soft plastic cardboard made with super soft, super flexible PVC.
Maximum RPM: Soft Wood 16,000 / Soft Plastic 12,500
HSS Plastic Straight 'O' Flute Speed and Feed Chart
Download PDF
