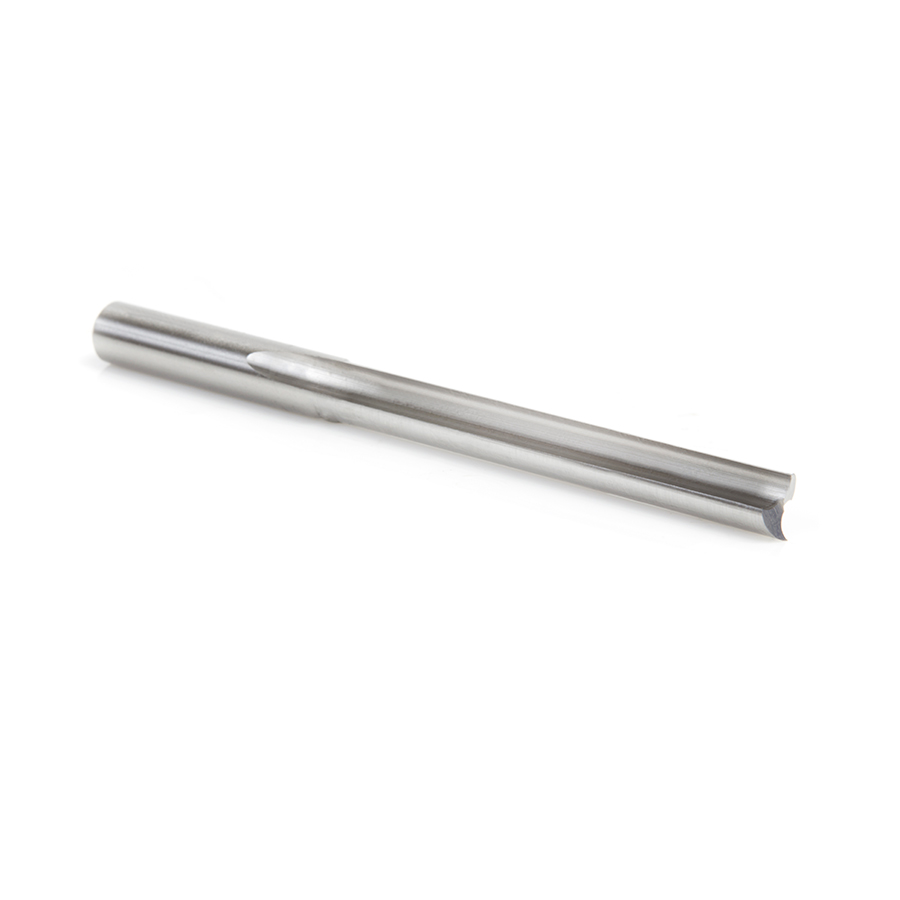

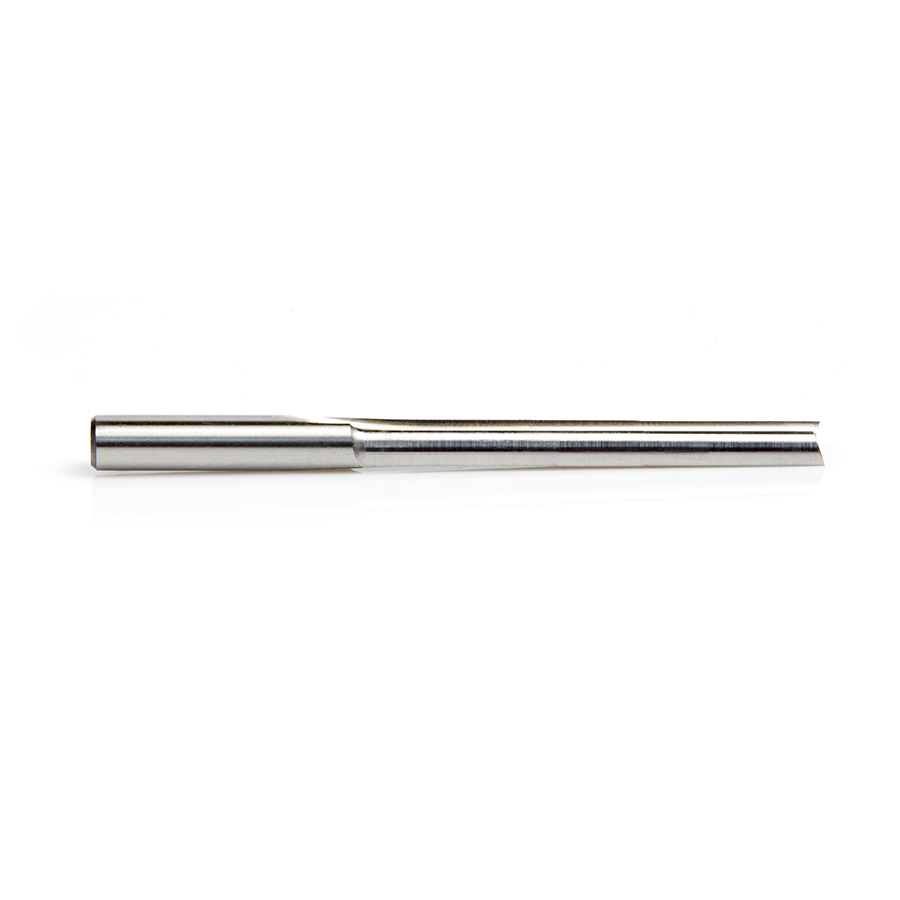

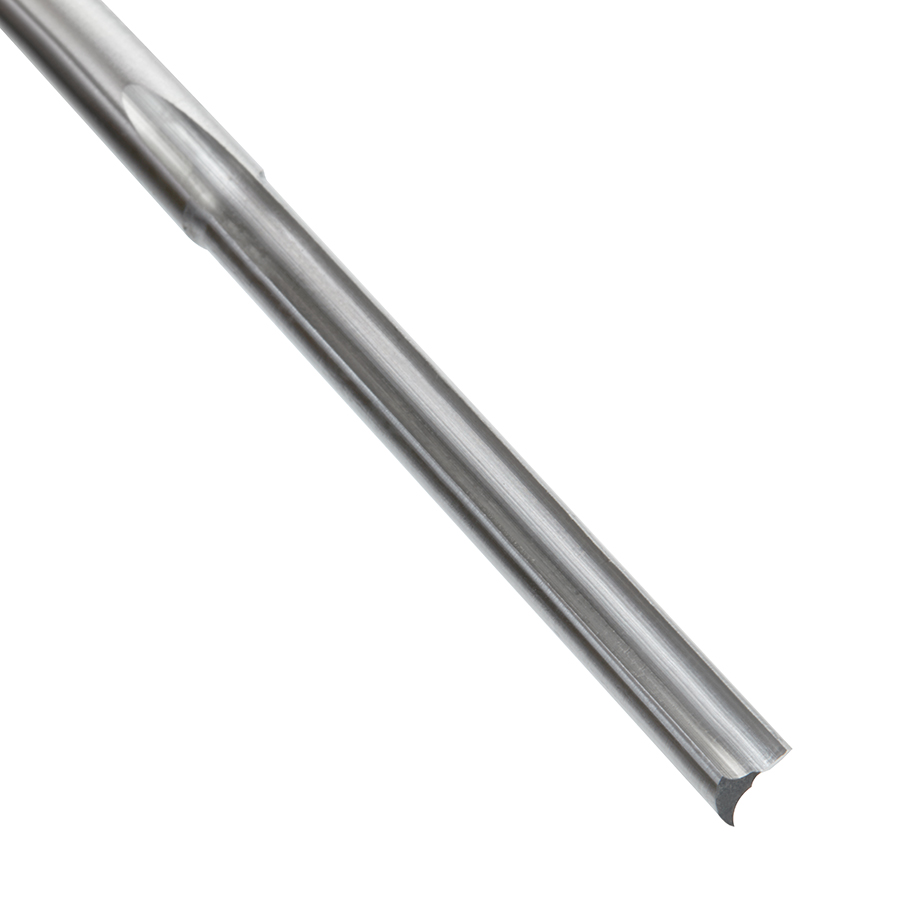

HSS1605 HSS Double Straight 'O' Flute Plastic Cutting 1/4 Dia x 2 x 1/4 Inch Shank

#HSS1605

Specification
Diameter (D)1/4
Cutting Height (B)2
Shank (d)1/4
Overall Length (L)3-1/4
Flutes2

HSS Double Straight 'O' Flute, Plastic Cutting Router Bits

Please or

Provide smooth finish in both soft and hard plastics. Excellent for Hand-Fed Operations. May be used in air routers with guide bushing.

Excellent for cutting:

  • Soft & Hard Plastic
  • Acrylonitrile Butadiene Styrene (ABS)
  • Coroplast®*
  • Expanded Polystyrene Foam (EPS)
  • Fomex®
  • High Density Polyethylene (HDPE)
  • High Impact Polystyrene (HIPS)
  • High Pressure Laminates (HPL)
  • Hydroxy-Terminated Polyether (HTPE)
  • Low Density Polyethylene (LDPE)
  • LubX®
  • Perspex® Cast Acrylic Sheet
  • Polycarbonate
  • Polyethylene
  • Polyethylene Terephthalate Glycol-Modified (PETG / PET-G)
  • Polyoxymethylene (POM), also known as Acetal, Polyacetal and Polyformaldehyde.
  • Polypropylene Extruded Acrylic
  • Poly (methyl methacrylate) (PMMA)
  • PVC
  • Sign Foam
  • StarBoard® (King StarBoard 'R') High Density Polyethylene Sheet (HDPE)
  • Thermoplastic Polyolefin (TPO)
  • Ultra High Molecular Weight Polythylene (UHMWPE)
  • Urethane
  • Wood

* A soft plastic cardboard made with super soft, super flexible PVC.

Maximum RPM: Soft Wood 16,000 / Soft Plastic 12,500

Fusion Logo

Fusion 360 compatible tool file for HSS1605 available for download, click here.
