Polycrystalline Diamond (PCD) Lamello Cutter for Zeta P2 Lamello Porter Router

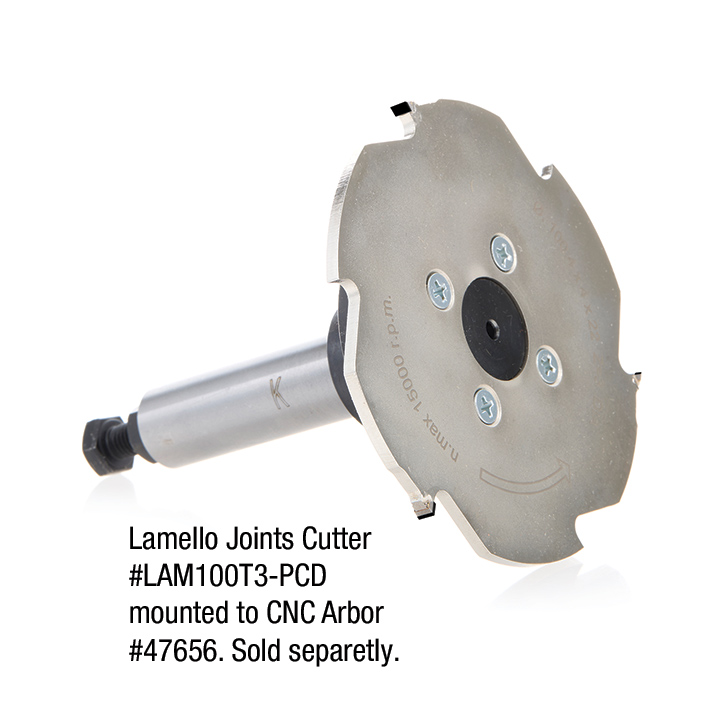

LAM100T3-22PCD Polycrystalline Diamond (PCD) Lamello Joints Cutter 100.4mm Dia x 3T, 22mm Bore, for Lamello Zeta, Top 20, Top 21, and Classic X Router
#LAM100T3-22PCD

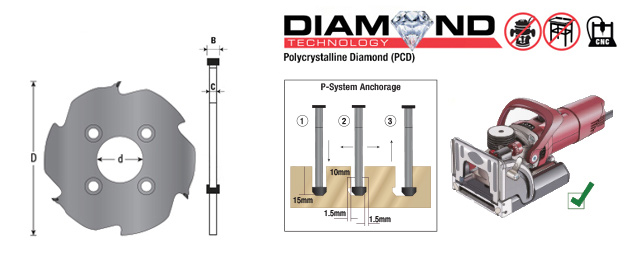

| (D) Diameter | 100.4mm |
|---|---|
| Teeth | 3 |
| (d) Bore | 22mm |
| Kerf (B) | 3.96mm (5/32) |
| Max RPM | 15,000 |
| Pinholes | 4/4/36 |
| Plate (C) | 2.8mm (7/64) |
Suitable for making Clamex S Classic Biscuit joints. To be used in Lamello Zeta, Top 20, Top 21, Classic X hand power tool.
Diamond is the hardest material on the earth. Polycrystalline Diamond (PCD) tooling is manufactured in a high-temperature and high-pressure laboratory that fuses diamond particles onto a carbide substrate.
