Double Sided Melamine & Laminate Saw Blades

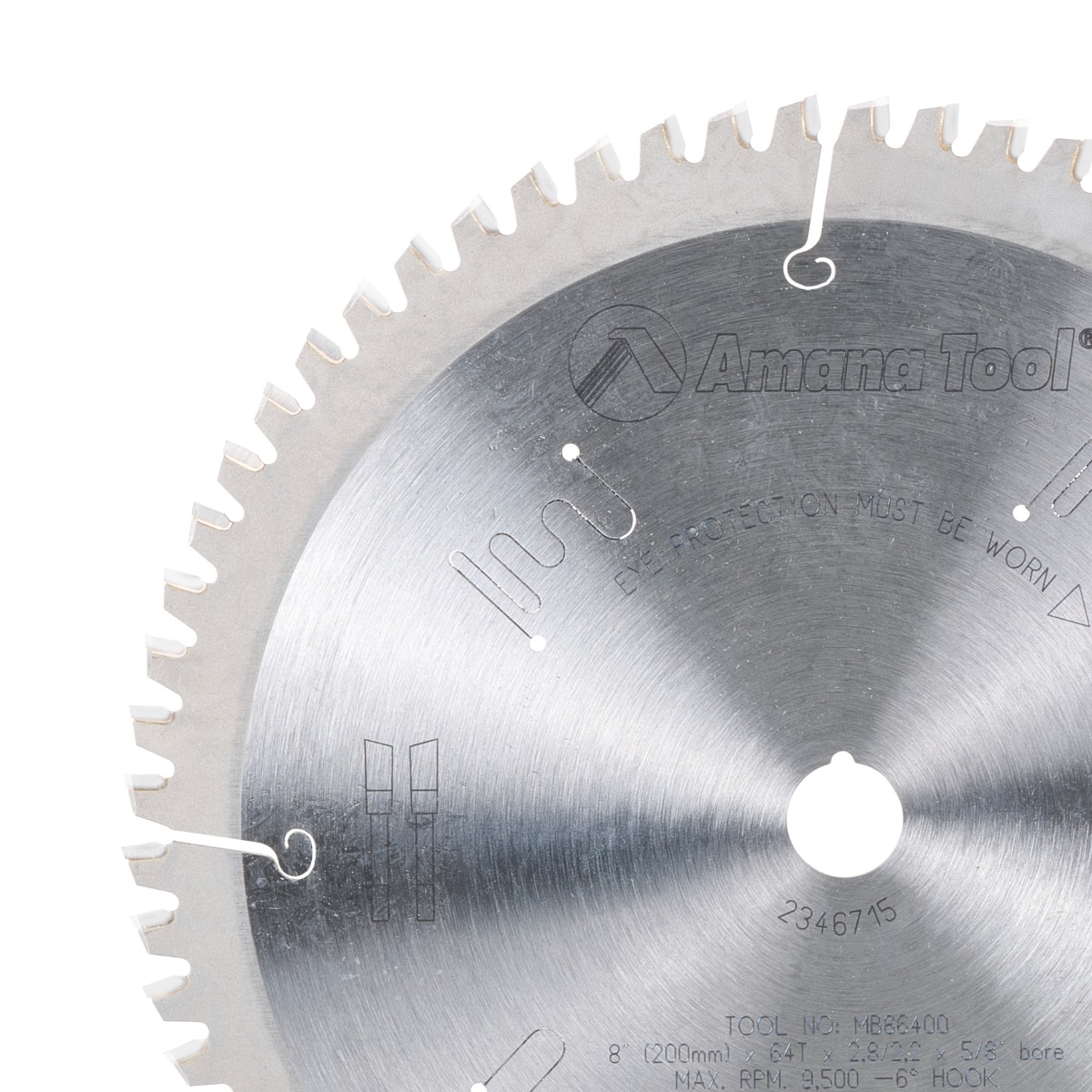

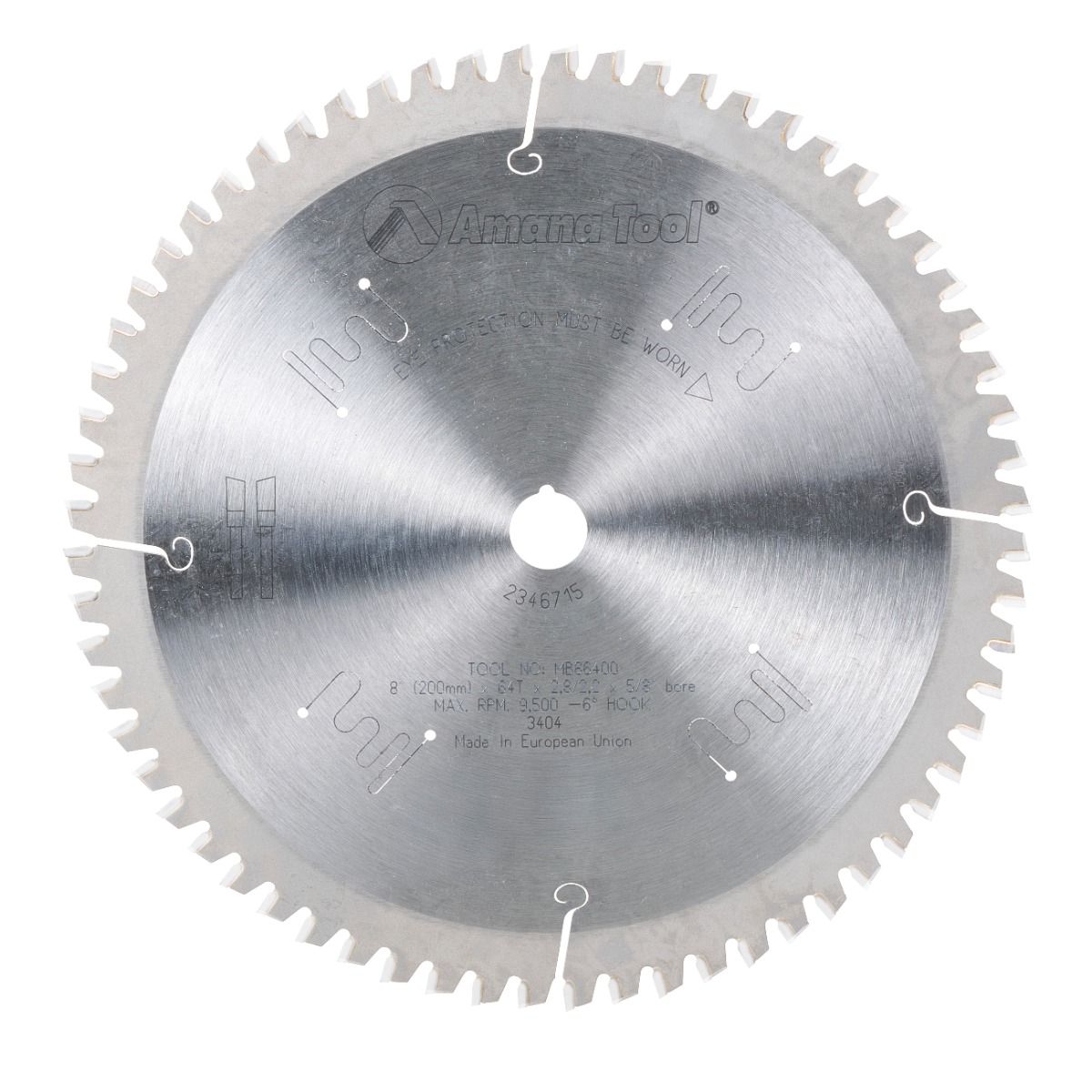

MB86400 Carbide Tipped Double-Face Melamine 8 Inch Dia x 64T H-ATB, -6 Deg, 5/8 Bore

#MB86400

Specification222
(D) Diameter 8 (200mm)
Teeth 64
(d) Bore 5/8
Tooth Grind H-ATB
Hook Angle -6°
Kerf (B) .110 (2.8mm)
Plate (C) .087 (2.2mm)

Designed specifically to cut melamine, this blade does just that without chipping on the top or bottom edges. (Your table saw must be properly tuned, of course.)

The special High-ATB grind (with 25° bevels) slices cleanly through fragile surface coatings like melamine and laminate. Coupled with a thick, heavy-duty plate for added stability, this blade produces extremely smooth cuts. It is easily resharpened.

Note: ThIs blade can be used on vertical type panel saws, such as ‘Safety Speed Cut’, etc.

Saw Blade Safety Guidelines
