Double-Face Melamine, Korton & Veneers Thin Kerf Saw Blades

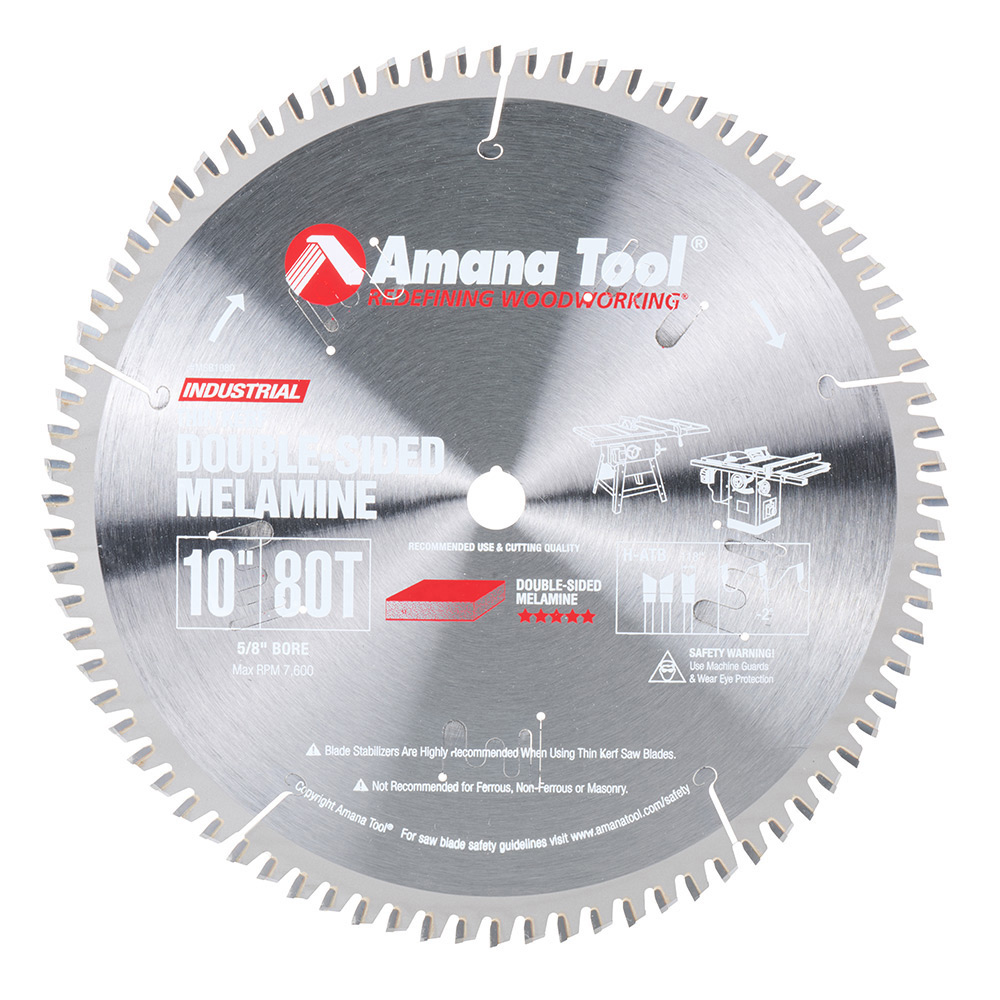

MSB1080 Carbide Tipped Double-Face Melamine 10 Inch Dia x 80T H-ATB, -2 Deg, 5/8 Bore

#MSB1080

Specification
(D) Diameter 10 (250mm)
Teeth 80
(d) Bore 5/8
Tooth Grind H-ATB
Hook Angle -2°
Kerf (B) .118 (3.0mm)
Plate (C) .087 (2.2mm)

Alterations to the geometry and plate thickness provide improved results in certain melamine boards. The bevel angle of the ATB grind is far more acute (35°), and the plate is thinner than our standard melamine blades.
