Prestige® General Purpose Saw Blades

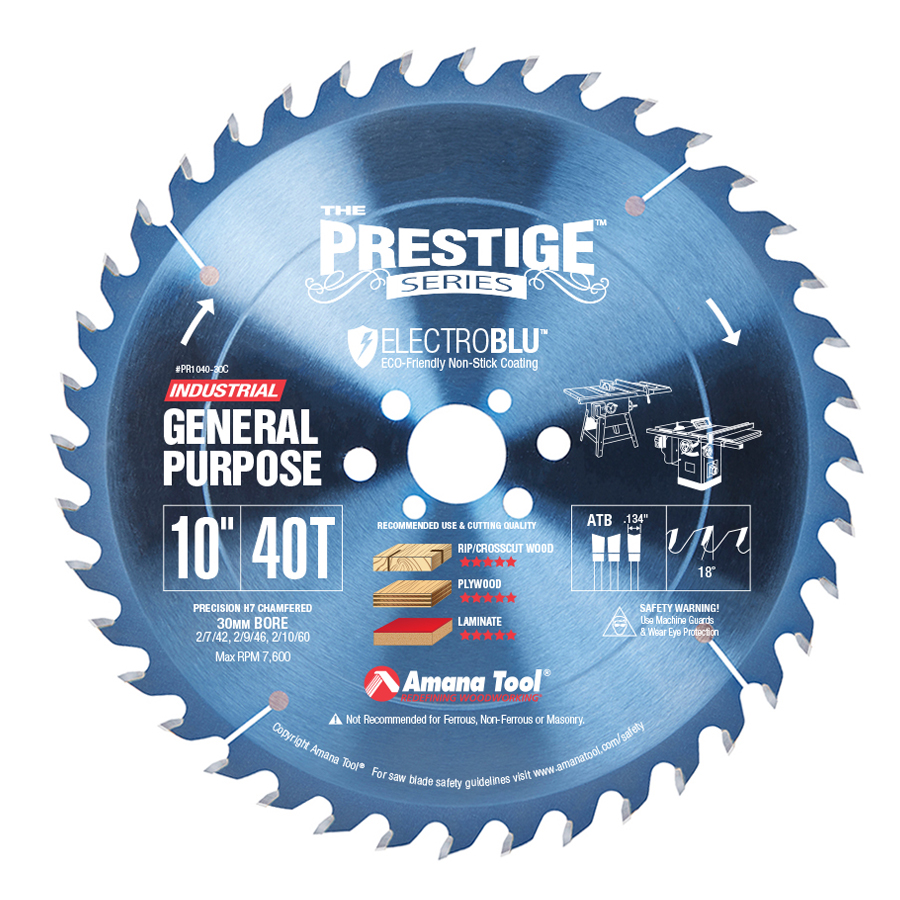

PR1040-30C Electro-Blu™ Carbide Tipped Prestige® General Purpose 10 Inch Dia 40T ATB, 18 Deg, 30mm Bore, Non-Stick Coated

#PR1040-30C

Specification
(D) Diameter 10 (250mm)
Teeth 40
(d) Bore 30mm
Tooth Grind ATB
Hook Angle 18°
Kerf (B) .134 (3.4mm)
Pinholes 2/7/42, 2/9/48, 2/10/60
Plate (C) .102 (2.6mm)
The Amana Tool® Prestige® general-purpose blade cuts smoother and stays sharper, for longer, in solid wood, plywood, MDF and chipboard. It features a massive tool-steel plate (.102" thick!) with expansion slots and copper plugs that practically eliminate vibration. The 40 teeth are ground with a steep 20° bevel angle, alternating left and right, for crisp, clean cuts both across grain and with the grain. The 18° hook angle yields an effortless feed. The precision-ground D-10 carbide teeth are individually computer-verified to have minimal runout.



  • Massive (.102" thick!) tool-steel plate with copper plugs that practically eliminates vibration.
  • Precision-ground D-10 carbide teeth (20 ATB, hook) are individually computer verified for runout of less than 1/10,000" on all axis.

Prestige® Rated “EXCELLENT” for

√ Ripping solid wood

√ Crosscutting solid wood

√ Ripping plywood

√ Crosscutting plywood.

Benefits of Electro-Blu™ Coating

  • Reduces resin accumulation and heat build-up
  • Tips stay sharper longer resulting in extended blade life
  • Applied by using an electrostatic bonding process

Saw Blade Safety Guidelines

File Size : 1.55 MB
Create account or Login to download
