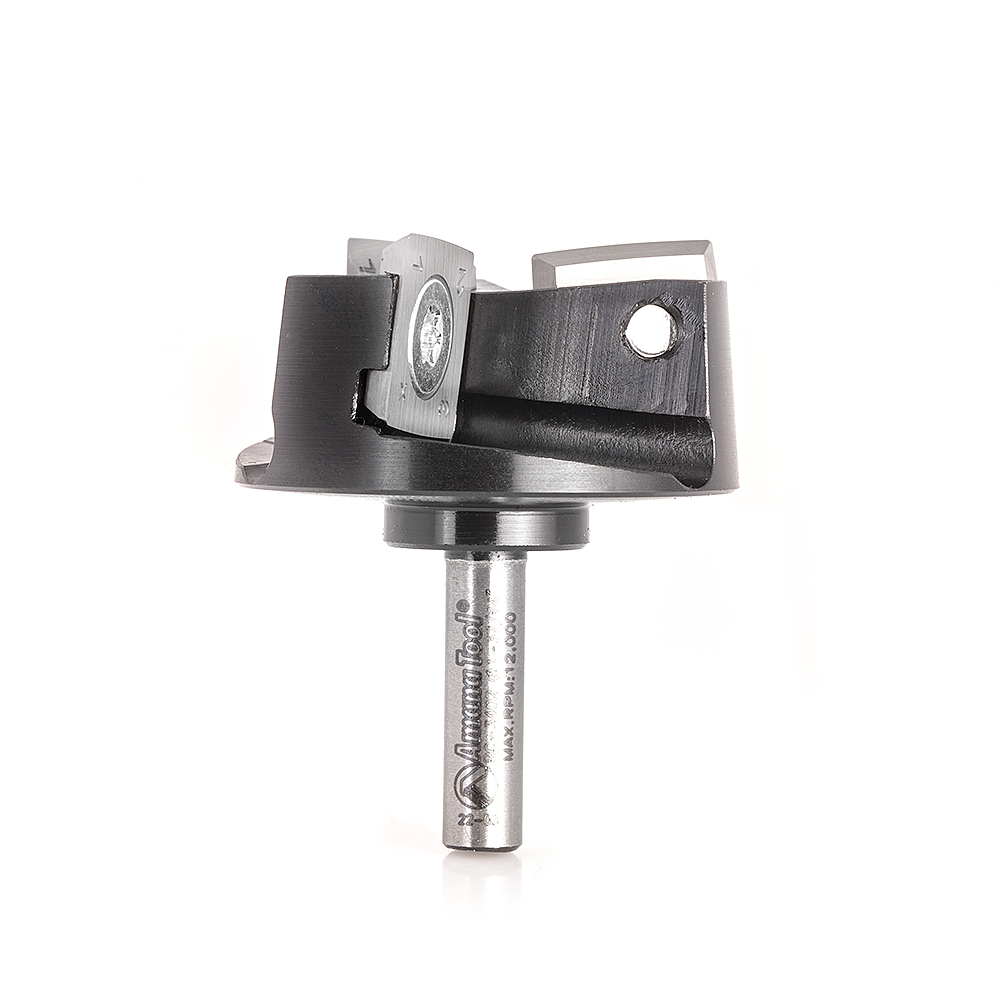

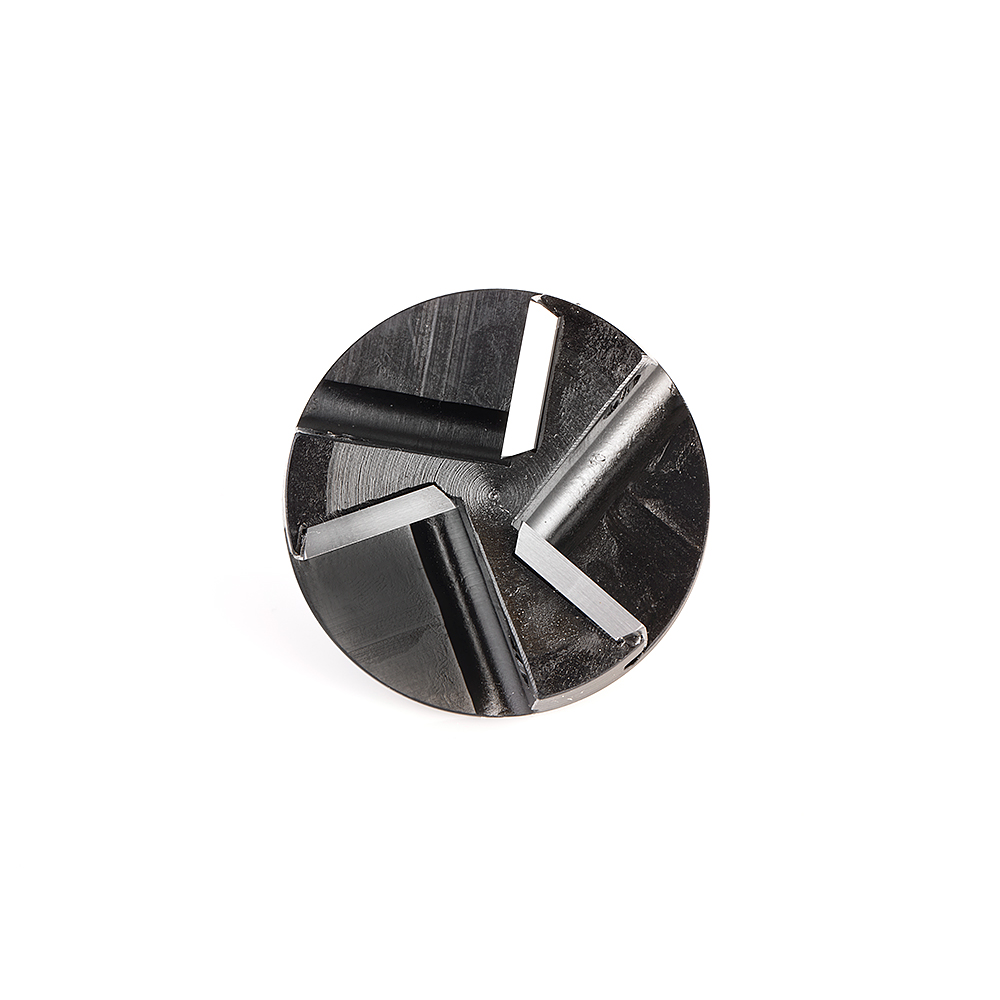

RC-3402 CNC Solid Carbide 3-Flute Insert Face Milling for Non-Ferrous Metals 1-5/8 Dia x 15mm x 1/4 Inch Shank End Mill / Router Bit
#RC-3402
| (D) Diameter | 1-5/8 |
|---|---|
| (B) Cutting Height | 15mm |
| (d) Shank | 1/4 |
| Overall Length (L) | 1-7/8 |
| Max RPM | 12,000 |
| Flutes | 3 |
| Feed Rate IPM | 60"/min - 120"/min |

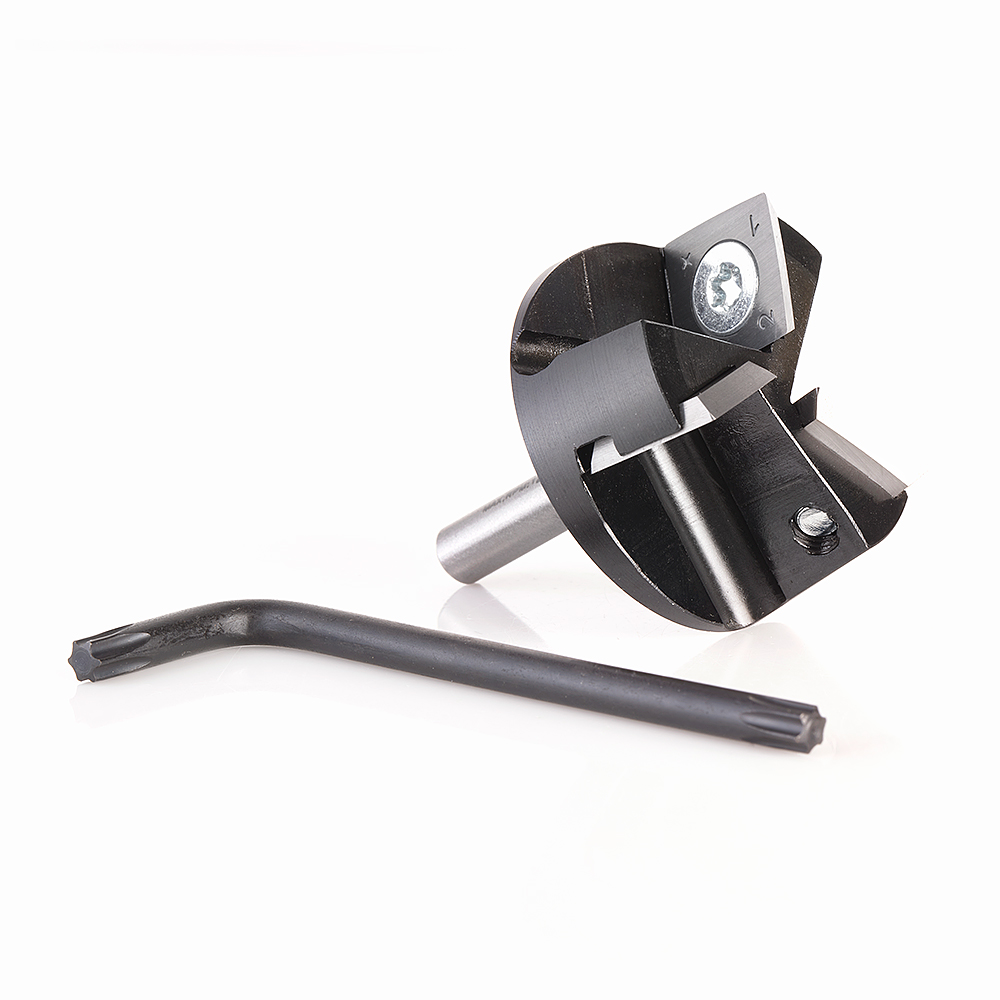

The replaceable tips end mill/router bit tool body made from alloy steel with 4 solid carbide cutting inserts for maximum feed and stability specially made for CNC and milling machines.
Each tip is made from micrograin carbide for maximum tool life and has 4 cutting rounded corners that can be rotated. Perfect for removing fine layers of materials.
Excellent for cutting:
- Aluminum
- Aluminum 5052
- Bronze
- Copper
- Fomex® with Aluminum Face
Applications:
- Milling / Surfacing / Facing
- Shouldering / Rabbeting
- Slotting / Grooving
Use "Ramp Down" technique.
Feed Rate: 25"/min - 63"/min
Chip load per tooth: 0.0008" - 0.002"
Chip load per tooth: 0.0008" - 0.002"
Maximum RPM: 12 000 RPM
Warning: Maximum recommended material depth in one pass 1/32" (1.0mm).
Fusion 360 compatible tool file for RC-3400 available for download, click here.
CNC Insert Carbide Face Milling for Non-Ferrous Metals Speed and Feed Chart
Download PDF
