Solid Carbide Compression Spiral Flute witt Platimun (PLX) Coating CNC Router Bits

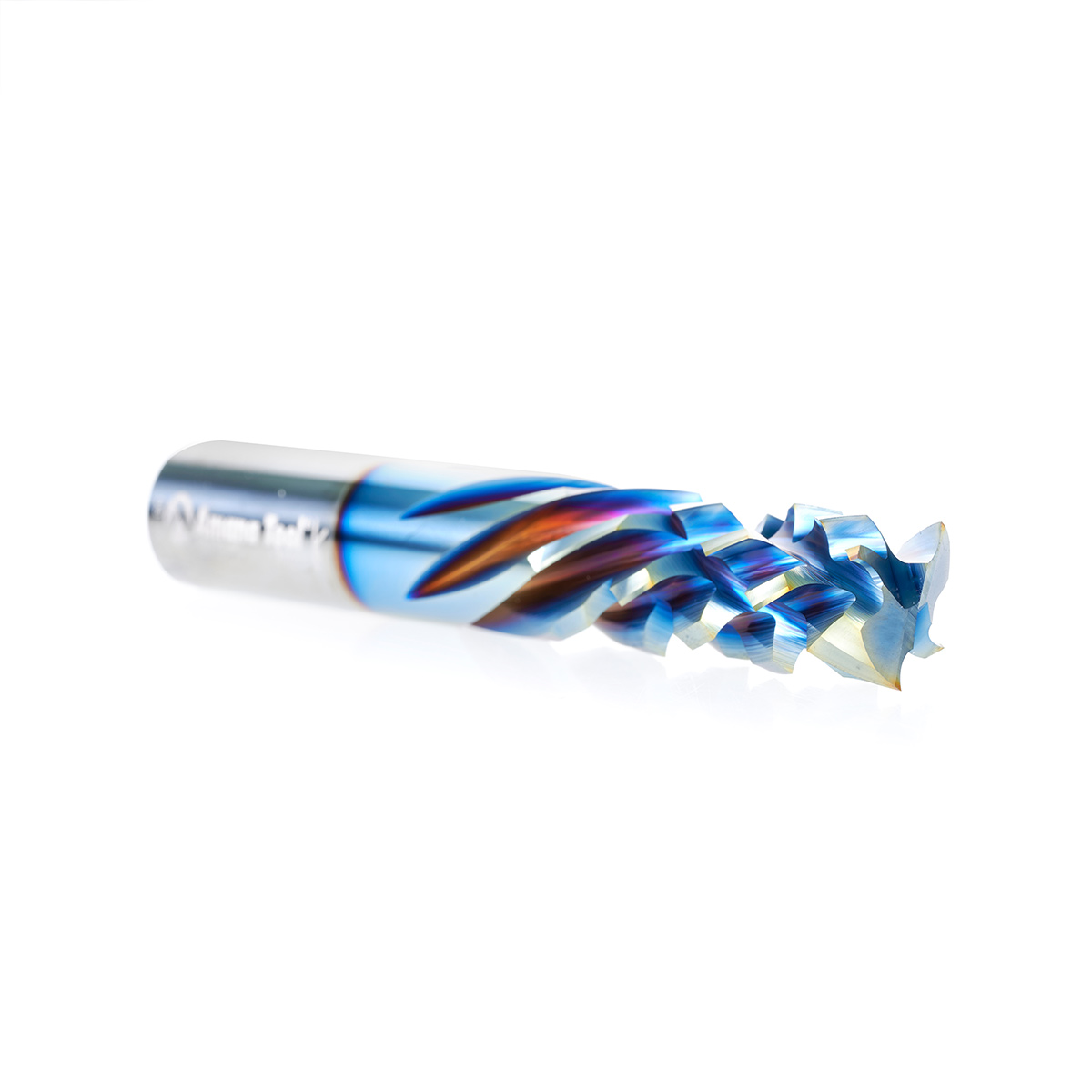

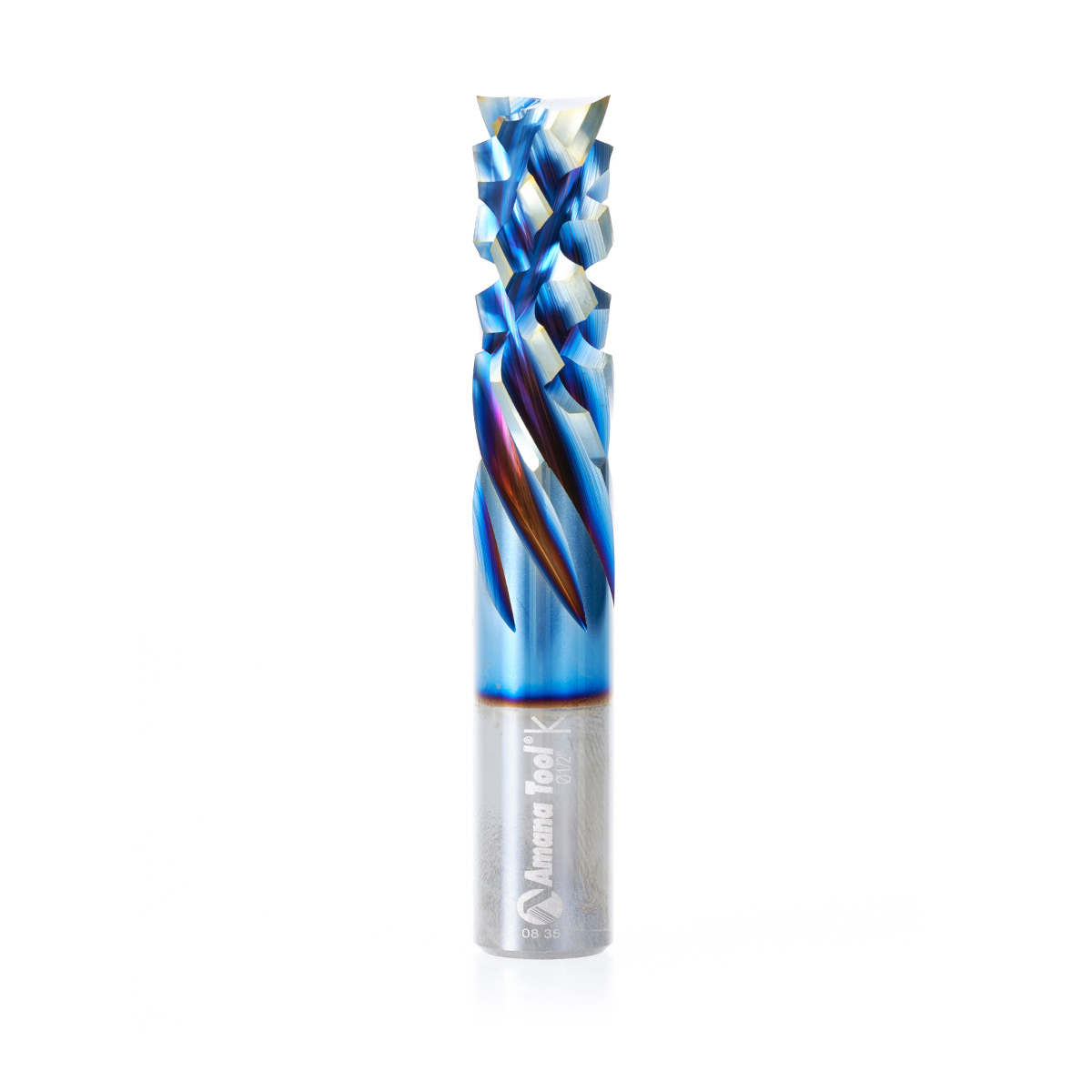

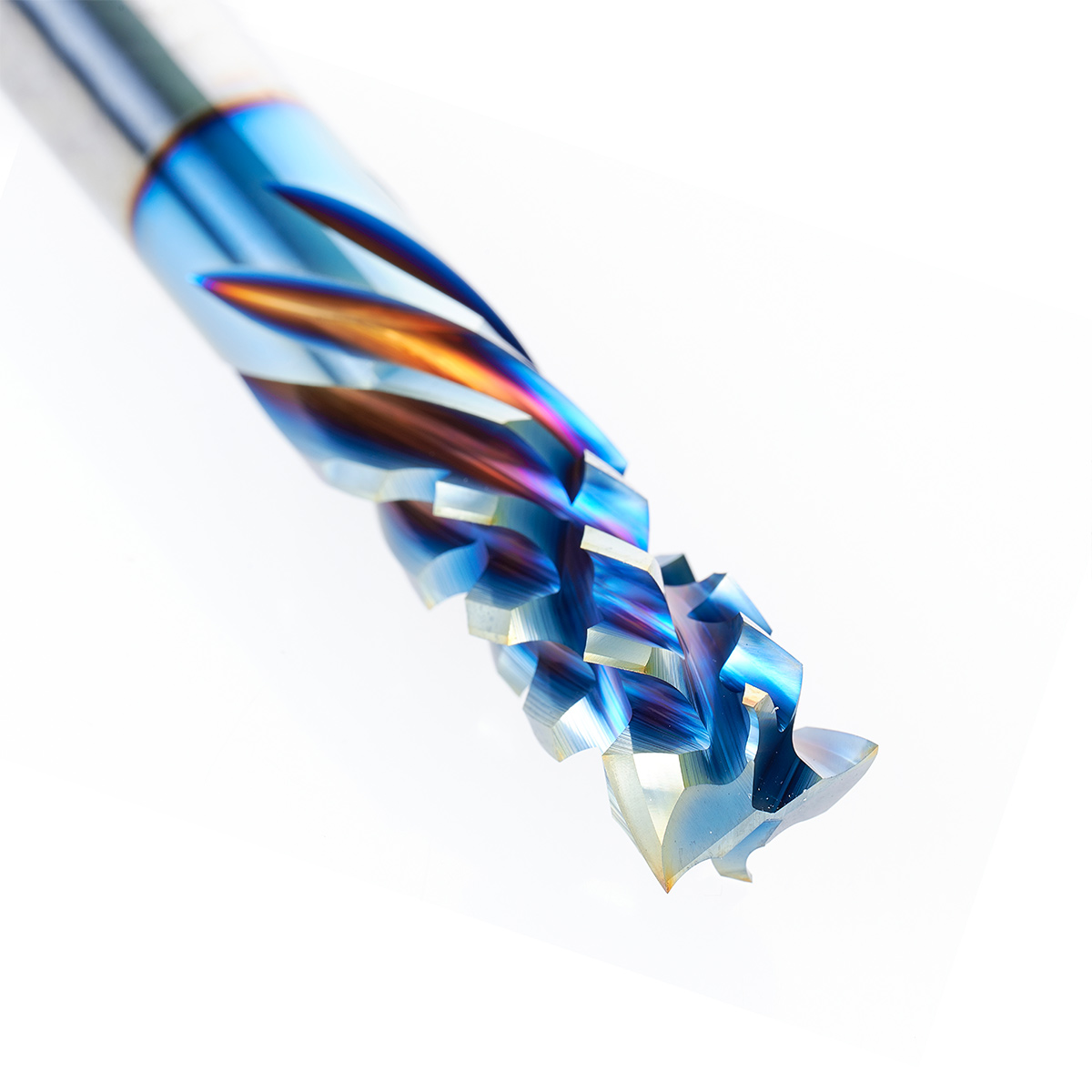

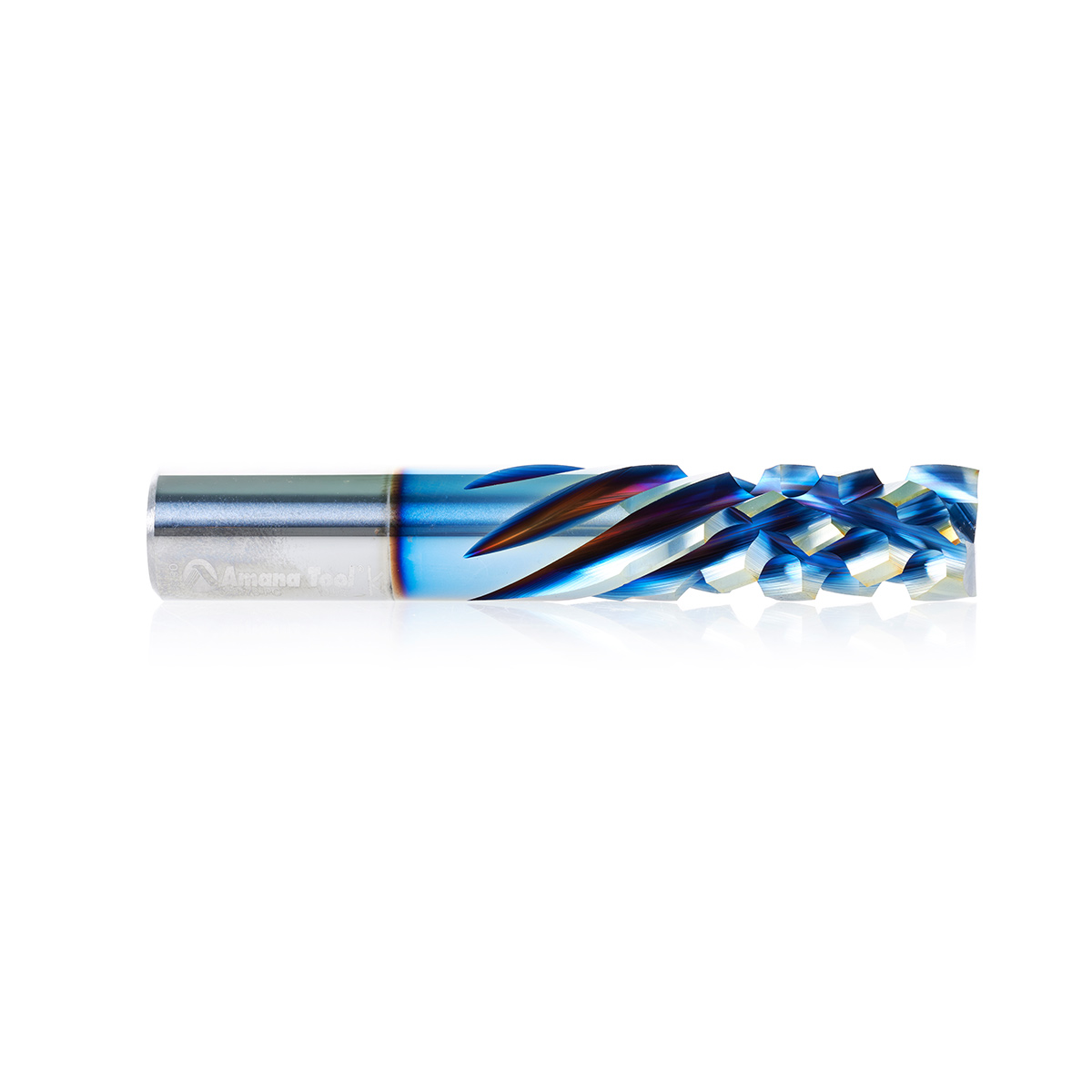

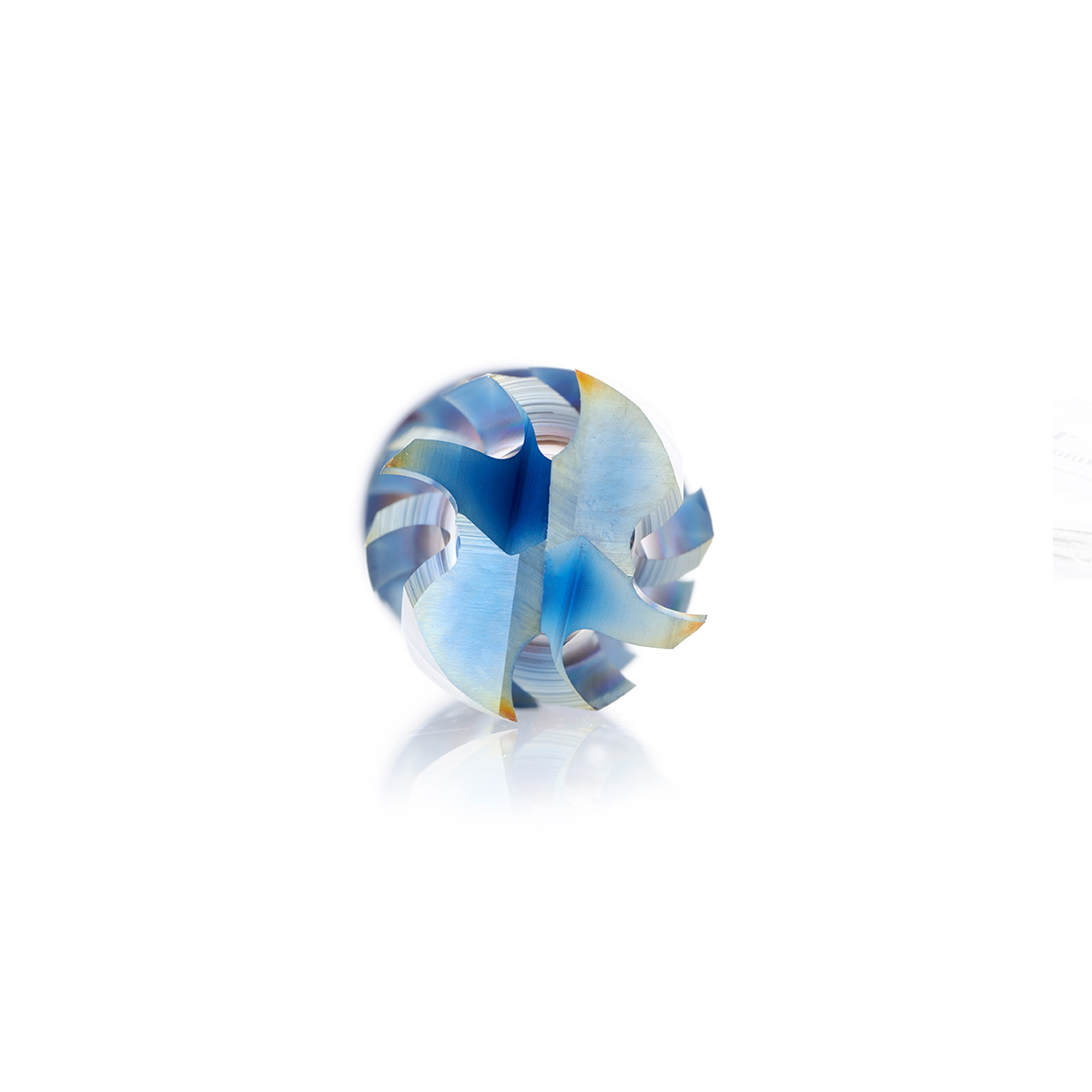

59176-PLX CNC Solid Carbide Compression Spiral Flute with Platinum (PLX) Coating 1/2 Dia x 1-1/4 x 1/2 Inch Shank
#59176-PLX

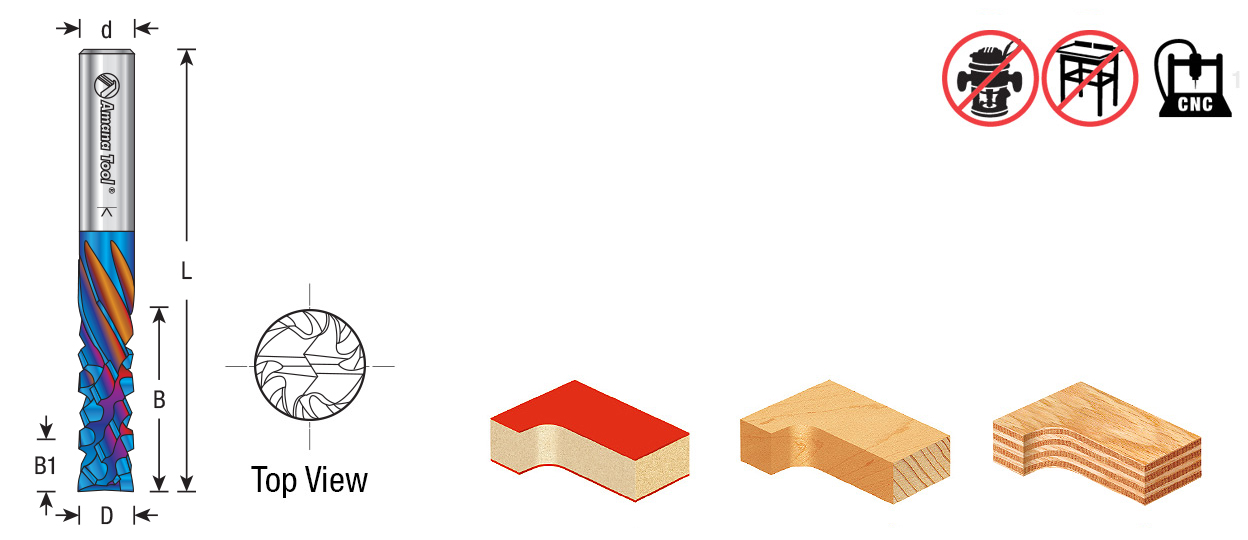

| (D) Diameter | 1/2 |
|---|---|
| (B) Cutting Height | 1-1/4 |
| B1 | 15/64 |
| (d) Shank | 1/2 |
| Overall Length (L) | 3 |
| Type | Solid Carbide |
| Flutes | 2+6 |
The 2+6 compression spiral platinum-coated bits are designed for:
- Melamine and laminated boards
- Veneered plywood
- MDF/HDF with decorative surface
- Laminated hardwood panels
They excel at tear-out-free cuts on top and bottom edges, especially on decorative or finished surfaces.
Platinum coating is a high end PVD (Physical Vapor Deposition) coating that may use platinum group metals that offer:
- Excellent Heat resistance
- Low Friction (Lubricity)
- Anti-Corrosion
- Wear Resistance
Great if you are doing high-precision CNC work, Cutting Abrasive materials and want the longest tool life (up to 6 times compared with 2+2 compressions.)
CNC-Compression-Spiral-Flute-PLX-Coated-Speed-Chart
Download PDF
