Double Edge Folding V-Groove Router Bits for Shaping Aluminum Composite Material (ACM) Panels

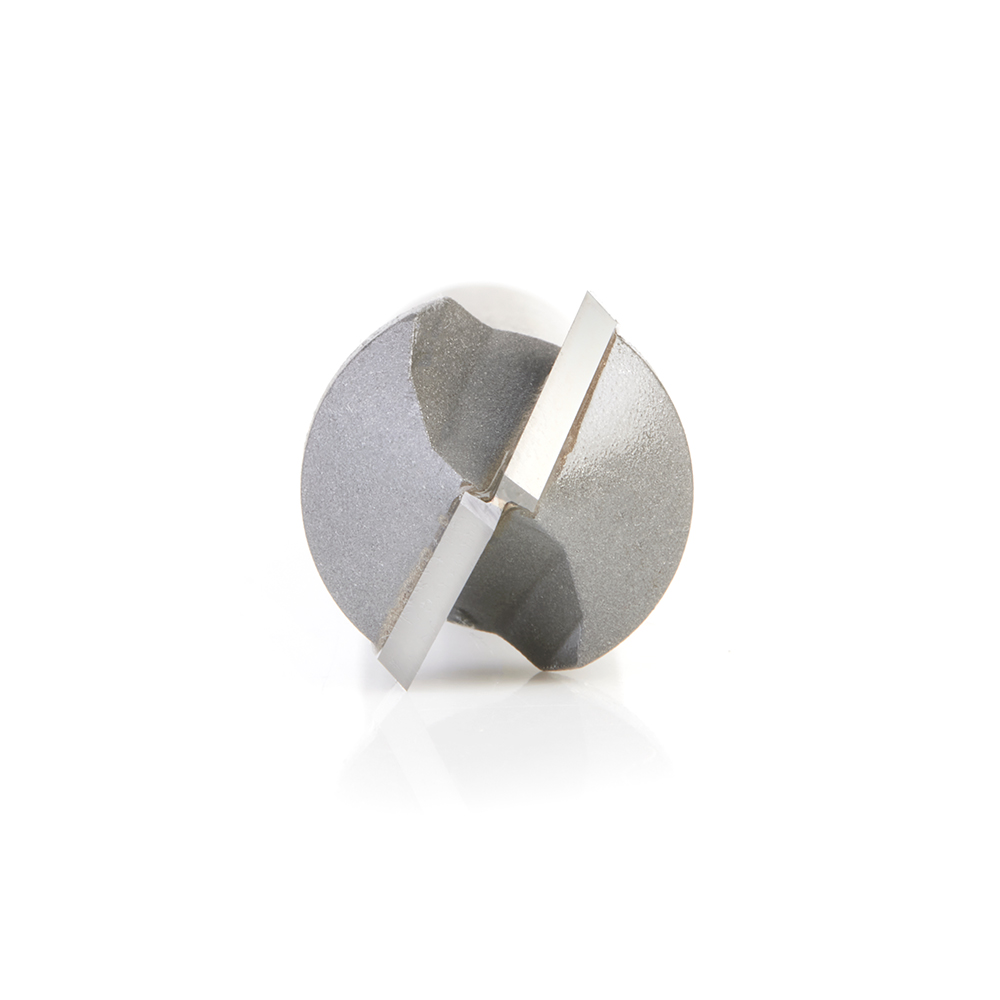

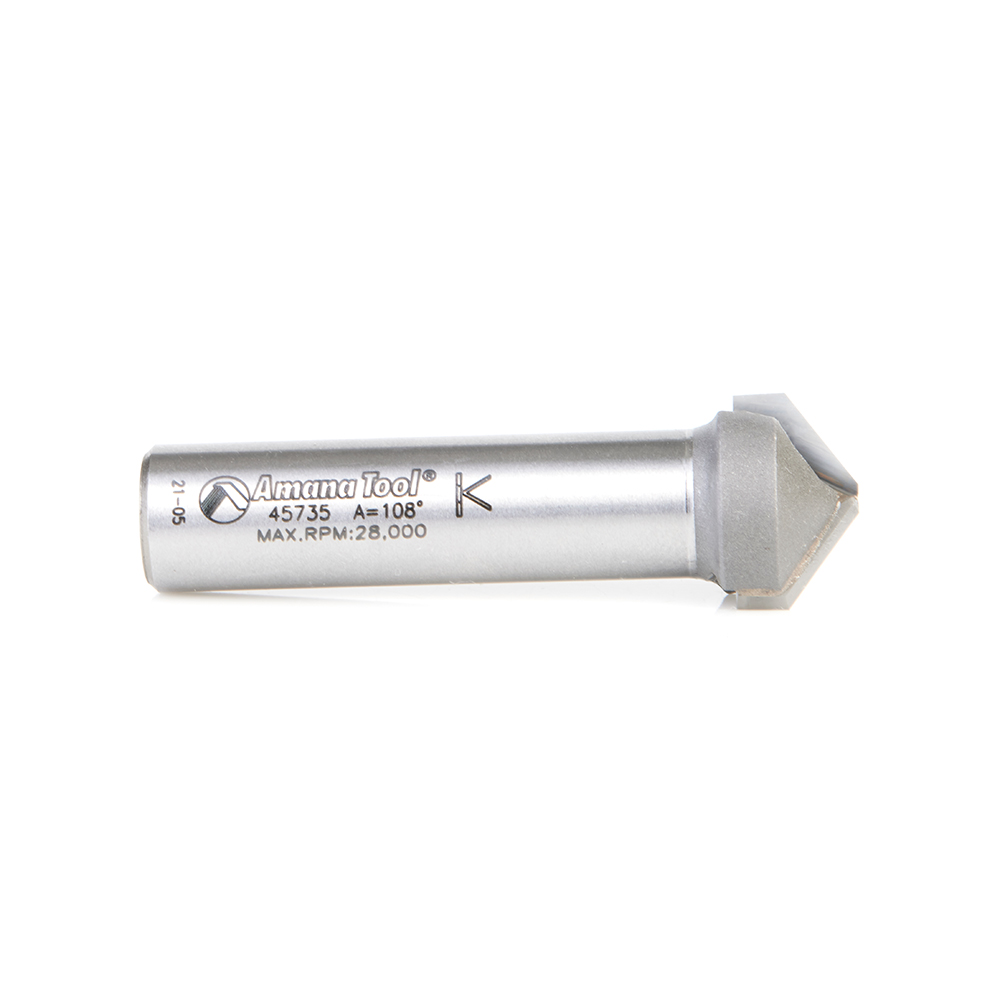

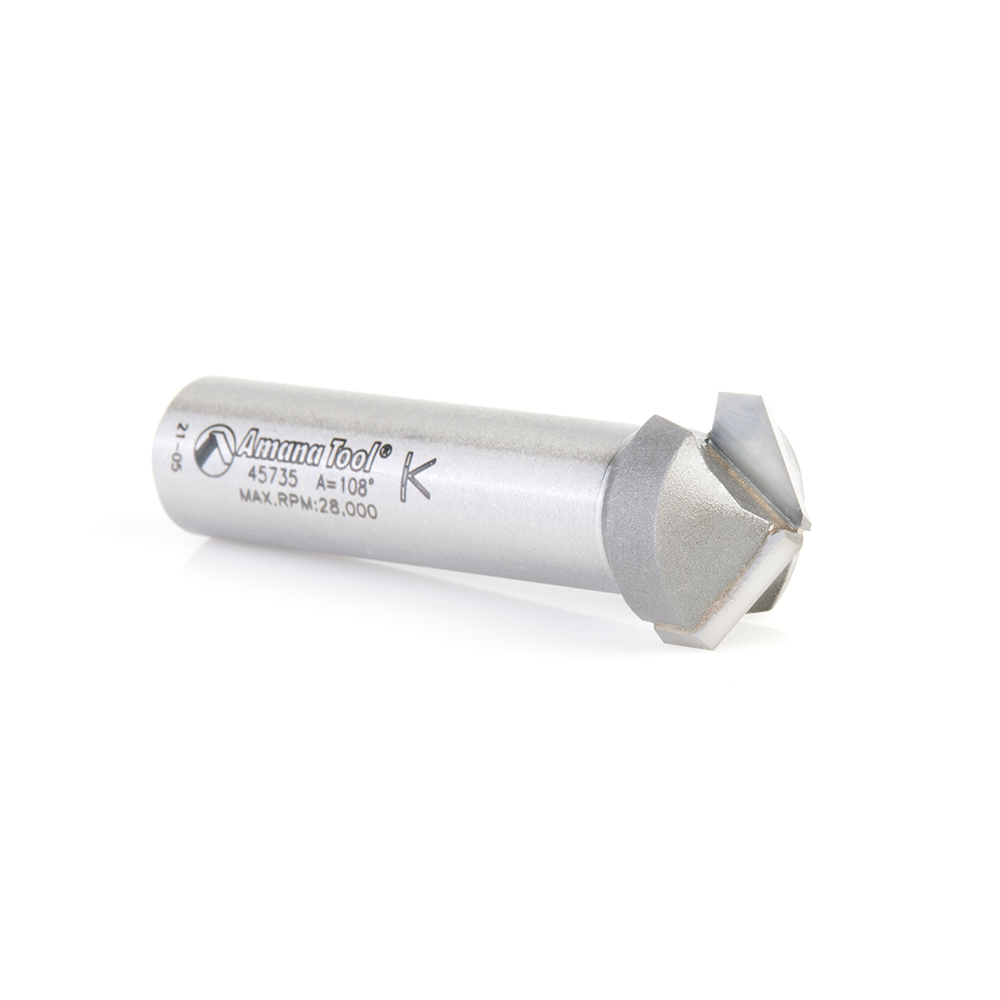

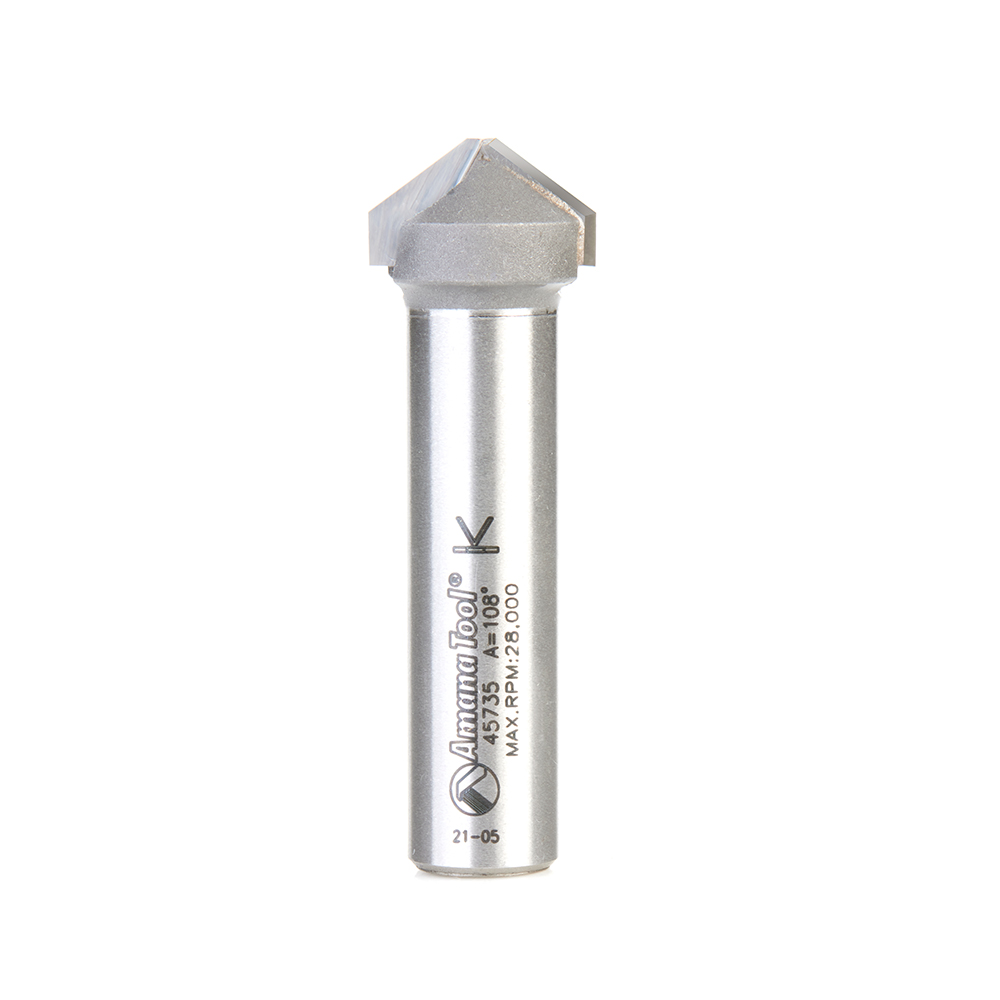

45735 Carbide Tipped Double Edge Folding V-Groove 108 Deg x 0.090 Inch Tip Width x 15/64 x 3/4 Dia. x 1/2 Inch Shank

#45735

Specification
Angle (a°)108°
a1°36°
Diameter (D)3/4
D10.090"
Cutting Height (B)15/64
B13/8
Shank (d)1/2
Overall Length (L)2-3/8
TypeCarbide Tipped V-Groove
Flutes2

Designed for shaping Aluminum Composite (sandwich) Materials (ACM) with 108° angle V-grooves with flat bottoms. Routing V-shaped grooves, whereby the aluminum cover and a part of the polyethylene core is removed, allows folding/creasing the remaining material by hand. Ideal for wall panel fabrication.

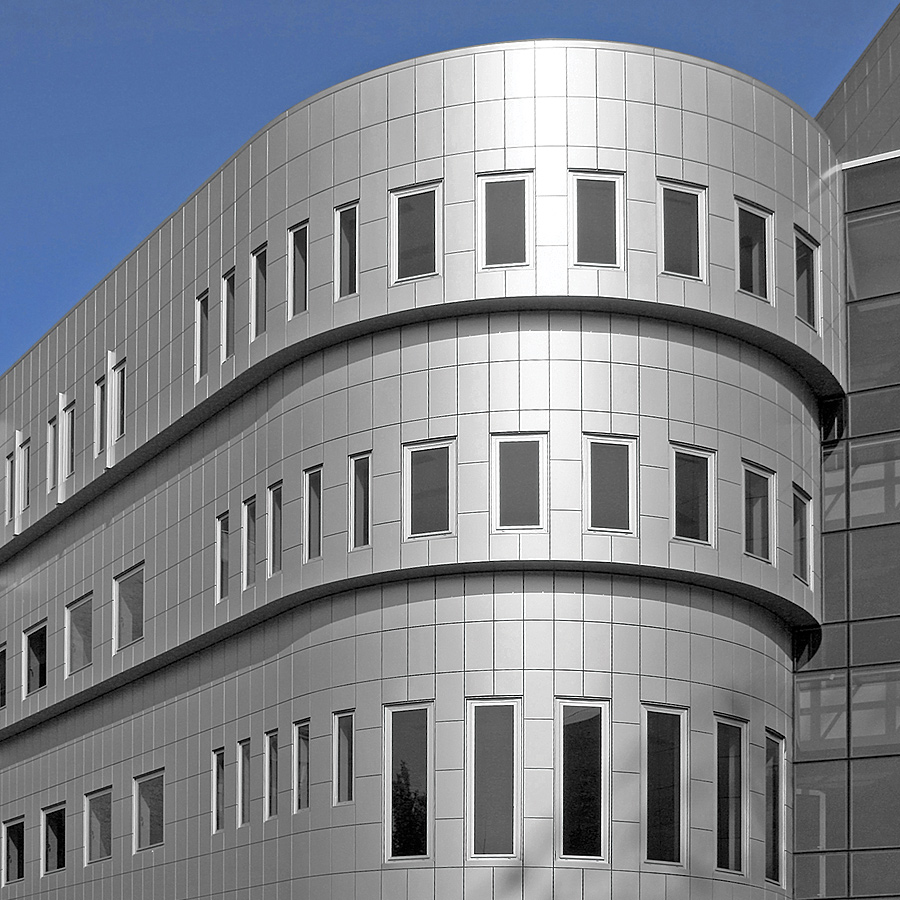

ACM is widely used for cladding many diverse exterior and interior applications such as office buildings, hospitals, convention centers, airports, and hotels. The long lasting durability of the material makes it an excellent choice for buildings, signage, displays, etc.

Designed for cutting and scoring aluminum sandwich materials including:

  • Acetate
  • Aluminum, Brass, Bronze, Clay, Zinc & Wood Composite Panels
  • Aluminum 5052
  • Aluminum Composite Materials (ACM)
  • Aluminum Composite Panel (ACP)*
  • ALPOLIC® Copper Composite Material (CCM)
  • Alucobond®
  • Alupanel®
  • Bakelite
  • Dibond®
  • Durabond**
  • e-panel™
  • Etalbond®
  • Nylon
  • PE and FR Cores
  • Phenolics
  • Plastic/Acrylic
  • Plexiglas®
  • PVC
  • Thermoplastics
  • Titanium Composite Material (TCM)
  • Wood

*Aluminum Composite Panel (ACP) is a type of ACM flat panel that consists of two thin aluminum sheets bonded to a non-aluminum core. ACPs are frequently used for external cladding or facades of buildings, insulation, and signage. **Durabond is a polyethylene core with 0.3mm colored aluminum sheet on either side, pre-finished requiring no decoration.

Product Questions

Question on 45735 Carbide Tipped Double Edge Folding V-Groove 108 Deg x 0.090 Inch Tip Width x 15/64 x 3/4 Dia. x 1/2 Inch Shank


Create Account or Login to ask a question

Carbide Tipped Double Edge Folding V Groove for ACM Materials Speed and Feed Chart

Download PDF
