Solid Carbide Engraving Spektra™ Extreme Tool Life Coated Router Bits for Signmaking

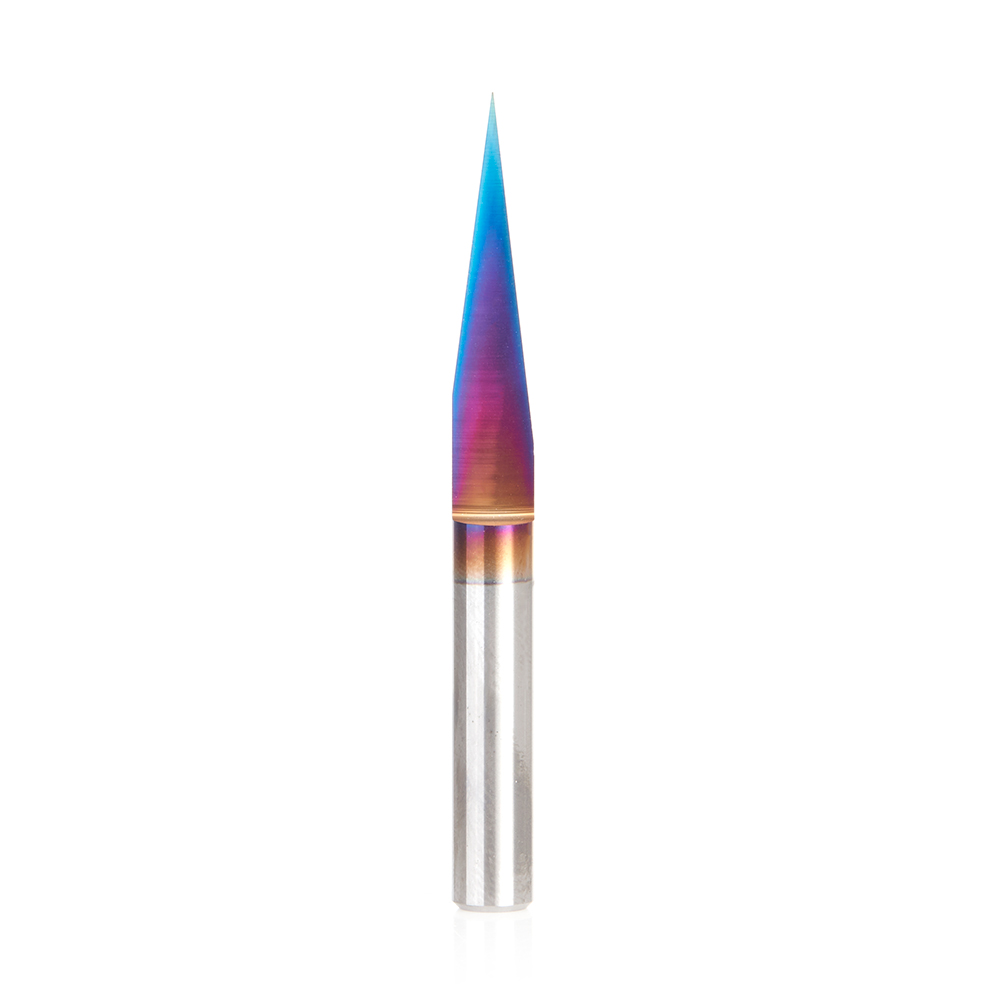

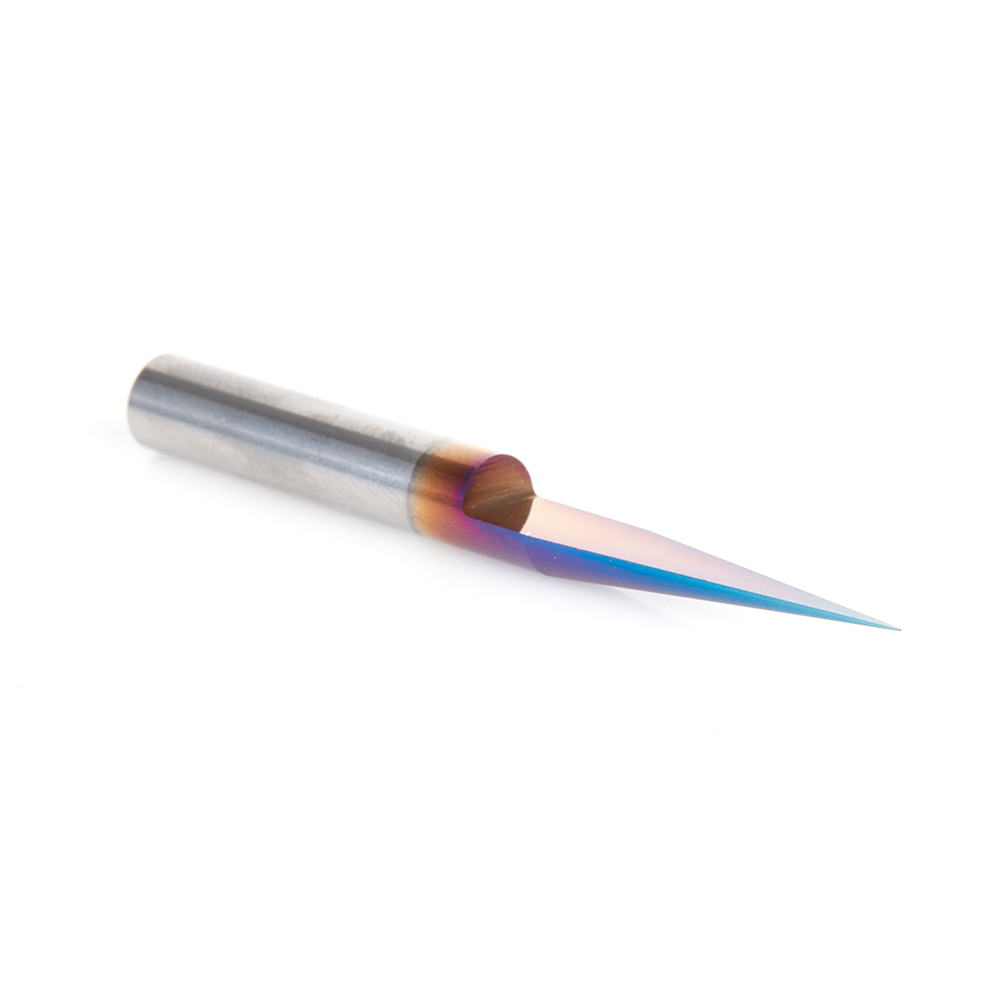

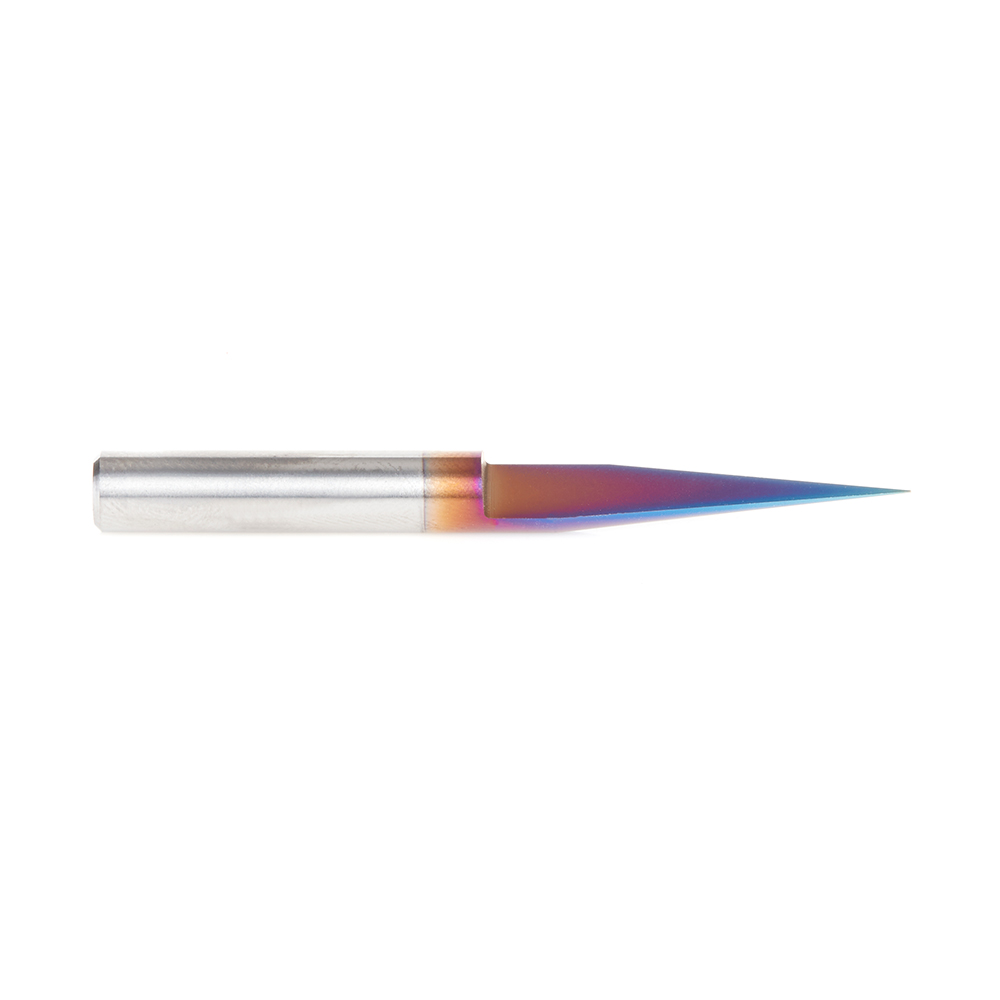

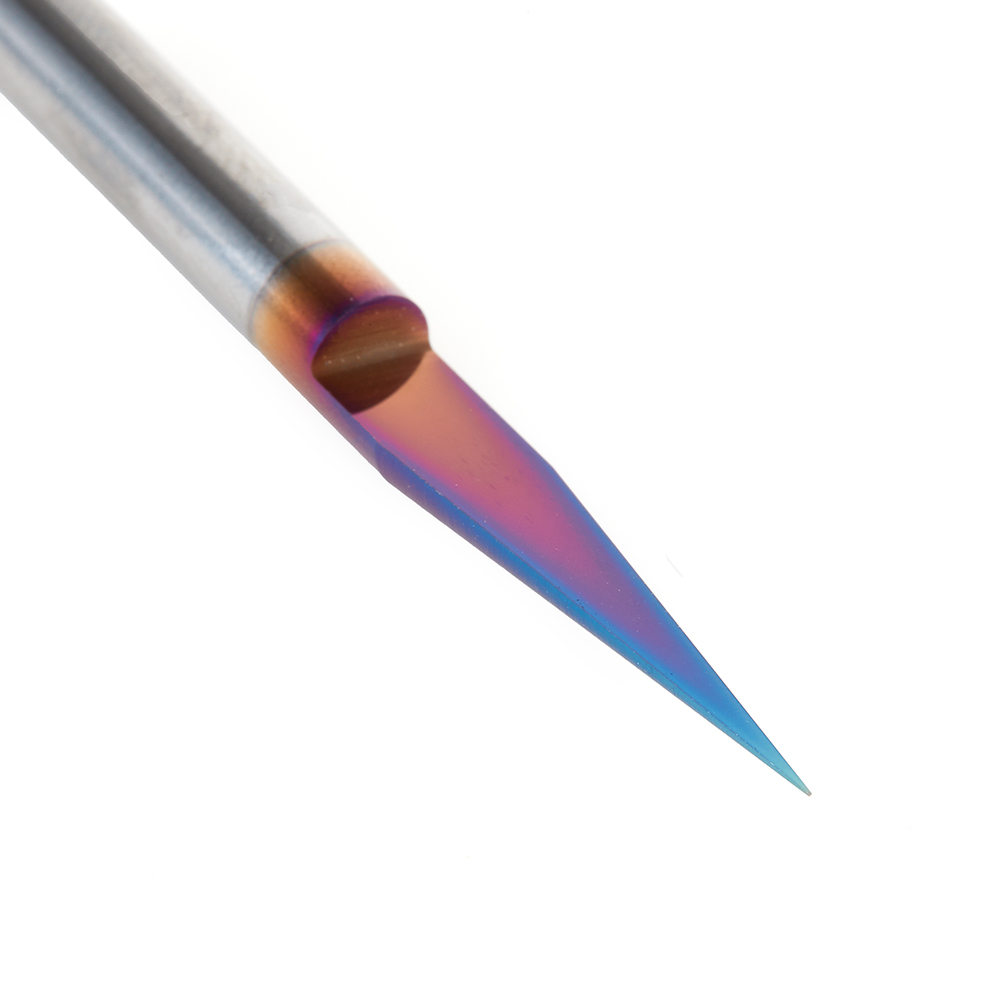

45611-K-M Solid Carbide 15 Degree Engraving 0.13mm (.005") Tip Width x 6mm Shank Signmaking Spektra™ Extreme Tool Life Coated Router Bit

#45611-K-M

Specification
Angle (a°)15°
Cutting Height (B)24mm (.93")
Shank (d)6mm
Overall Length (L)58mm (2-1/4)
Tip Width (t)0.13mm (0.005")

For extra-fine carving and lettering details. These tools are used for wood, plastic and solid surface materials. Maximum RPM 28,000.

Our Spektra™ bits feature a nACo® nanocomposite coating with an extreme nanohardness and heat resistance. With a brilliant distinctively-tinted coloring nACo provides additional improvements in four critical aspects of router tooling.

  • nACo coating is a micro-thin ceramic coating which enables the tool's cutting edge to retain crucial sharpness and lubricity. This provides longevity and produces cutting results of the highest quality.
  • Coating prevents high heat and oxidation which is detrimental to cutting tool performance.
  • Multi-colored hues, while attractive, will dissipate upon use and yet coating will remain fully effective.
  • nACo offers approximately 4,500 Vickers for impressive solid hardness on cutting areas of the tool, for an increase up to 2.5 times compared to uncoated bits.

Note: Blue based color dissipates immediately upon use. nACo® nanocomposite coating will not wear off.

Product Questions

Question on 45611-K-M Solid Carbide 15 Degree Engraving 0.13mm (.005") Tip Width x 6mm Shank Signmaking Spektra™ Extreme Tool Life Coated Router Bit


Create Account or Login to ask a question

Spektra™ Coated 15, 30, 45 & 120 Degree Engraving Speed Chart

Download PDF
