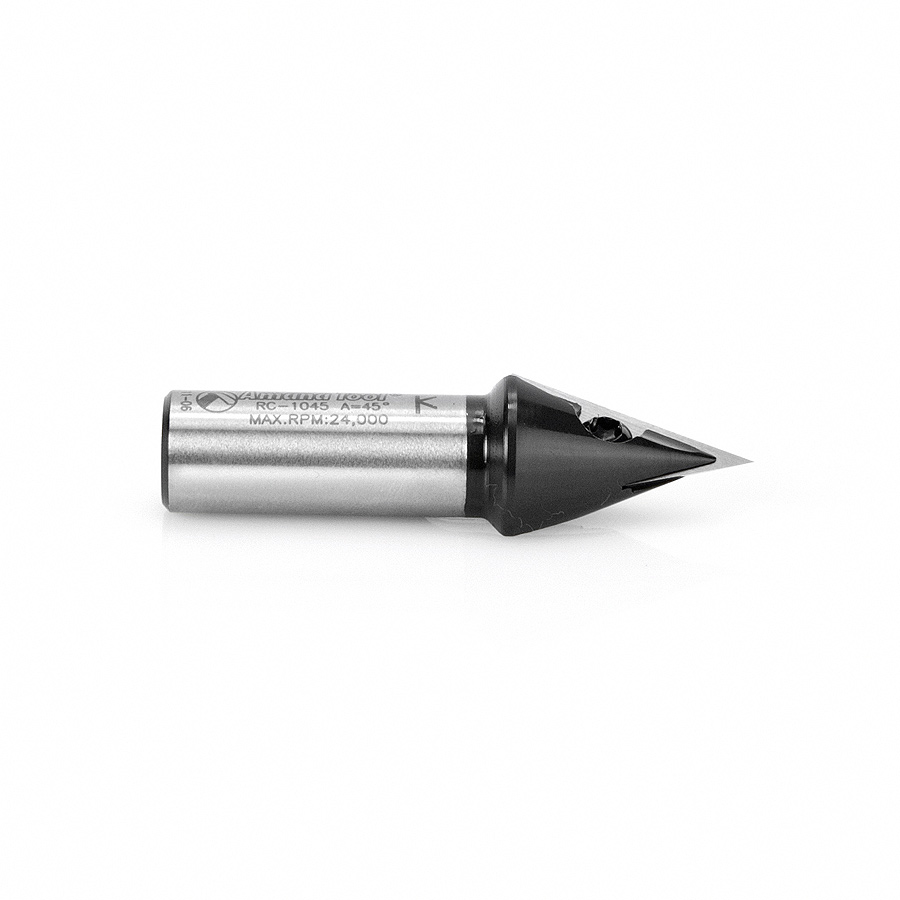

RC-1045 CNC Insert V-Groove 45 Deg x 7/8 x 1/2 Inch Shank

#RC-1045

Specification
(D) Diameter13/16
(a°) Angle45°
(B) Cutting Height7/8
(d) Shank1/2
Overall Length (L)2-3/8
a1°22.5°
B11-1/16
Cutting Edges1
Max RPM24,000
L11-3/8
Flutes1
# of knives1

CNC V-Groove, Miter Fold, Signmaking & Lettering Insert Carbide Router Bits

Please or

The innovative CNC tool design uses the highest grade carbide insert knife. These industrial V-Groove insert router bits were especially designed for applications including:

  • Miter folds - "create the perfect joint"
  • Signmaking and lettering

Excellent for cutting:

  • Aluminum, Brass, Bronze, Copper, Gold, Silver & Carbon Fiber
    (Engraving Only)
  • Acrylic/Plastic
  • Composites
  • Composite Decking
  • Epoxy (Epoxy Resins)
  • Foam
  • High Density Polyethylene (HDPE)
  • Laminate
  • Melamine
  • MDF/HDF
  • PVC
  • Sign Board
  • Solid Surface
  • Veneered Plywood
  • Wood
  • Xanita® Board*
  • 20lbs High Density Urethane

*When working with Xanita LightBoard panel (X-board® X-board® plus) we recommend using MDF knives for better results.

Advantages of Insert Tooling:

  • Long lasting insert knives provide superior smooth quality cuts every time
  • Quick and precise replacements of dull knives
  • Due to insert accuracy tool life is extended
  • Insert tooling allows for harder grades of carbide
  • Special carbide grades for special applications
  • Cost effective solution compared to replacing brazed router bits

Secure locking screw system ensures maximum safety and maintains cutting accuracy. CNC router requires quality hold downs to ensure the least possibility of material shifting during operation.

Warning: Before using any insert tool, make sure the set screw is tightened firmly. When replacing a dull insert, first clean the tool and remove all dust prior to inserting the new knife.

Vectric compatible tool file for RC-1045 available for download, click here.

Included General Purpose Knife Optional MDF Knife Torx ScrewTorx Key
