CNC V-Groove, Miter Fold, Signmaking & Lettering Insert Carbide Router Bits

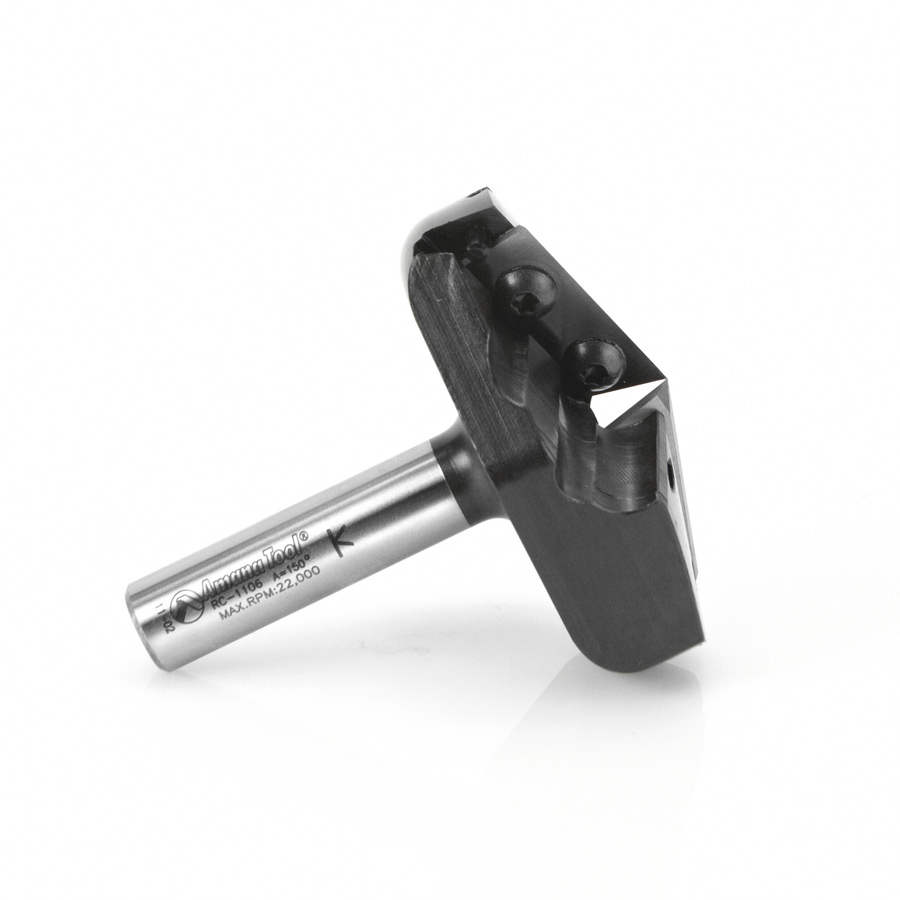

RC-1106 Insert V-Groove 150 Deg x 19/64 x 1/2 Inch Shank CNC

#RC-1106

Specification
(a°) Angle 150°
a1° 75°
(D) Diameter 2-1/4
(B) Cutting Height 19/64
B1 1-3/16
Cutting Edges 1
(d) Shank 1/2
Overall Length (L) 2-15/16
L1 2
Max RPM 22,000
Flutes 2
# of knives 2

The innovative CNC tool design uses the highest grade carbide insert knife. These industrial V-Groove insert router bits were especially designed for applications including:

  • Miter folds - "create the perfect joint"

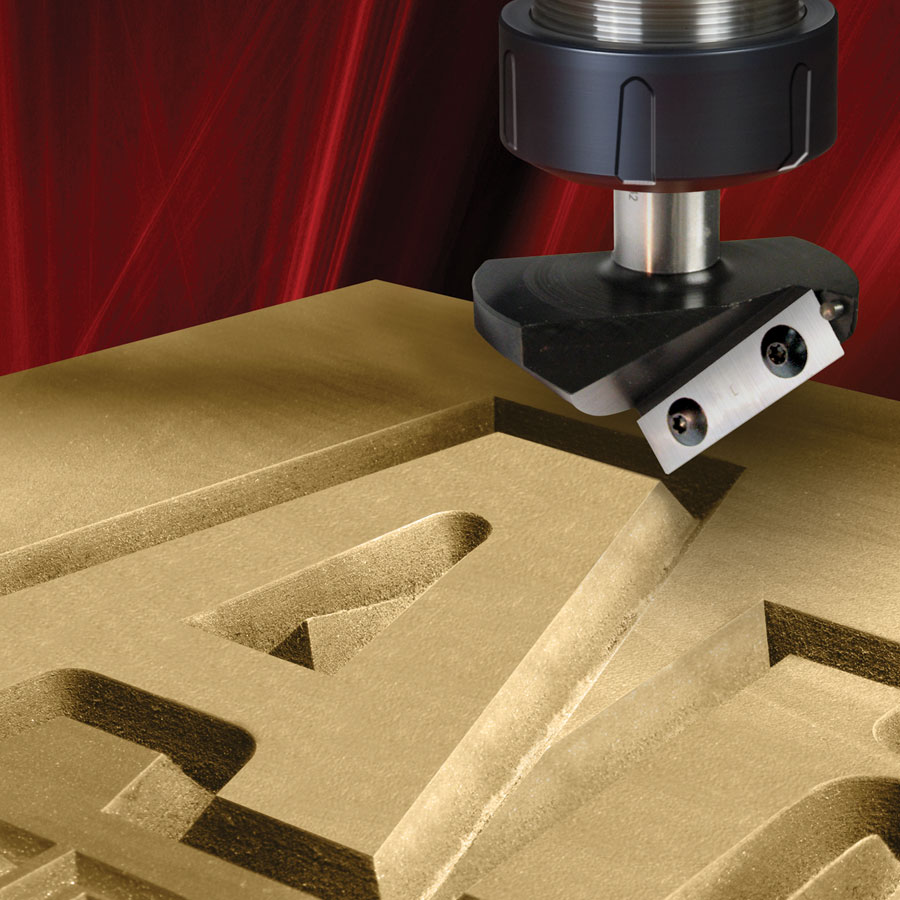

  • Signmaking and lettering

Excellent for cutting:

  • Aluminum, Brass, Bronze, Copper, Gold, Silver & Carbon Fiber
    (Engraving Only)
  • Acrylic/Plastic
  • Composites
  • Composite Decking
  • Epoxy (Epoxy Resins)
  • Foam
  • High Density Polyethylene (HDPE)
  • Laminate
  • Melamine
  • MDF/HDF
  • PVC
  • Sign Board
  • Solid Surface
  • Veneered Plywood
  • Wood
  • Xanita® Board*
  • 20lbs High Density Urethane

*When working with Xanita LightBoard panel (X-board® X-board® plus) we recommend using MDF knives for better results.

Advantages of Insert Tooling:

  • Long lasting insert knives provide superior smooth quality cuts every time
  • Quick and precise replacements of dull knives
  • Due to insert accuracy tool life is extended
  • Insert tooling allows for harder grades of carbide
  • Special carbide grades for special applications
  • Cost effective solution compared to replacing brazed router bits

Secure locking screw system ensures maximum safety and maintains cutting accuracy. CNC router requires quality hold downs to ensure the least possibility of material shifting during operation.

Warning: Before using any insert tool, make sure the set screw is tightened firmly. When replacing a dull insert, first clean the tool and remove all dust prior to inserting the new knife.

Vectric compatible tool file for RC-1106 available for download, click here.

Included General Purpose Knives (2 Required)Optional MDF Knives (2 Required)Torx Screw (4)Torx Key
File Size : 372.83 KB
Create account or Login to download
File Size : 93.02 KB
Create account or Login to download

Insert Carbide V-Groove Speed and Feed Chart

Download PDF

Product Questions

Is this tool good to use for v-grooves on 3003 aluminum, 1/8" thick?
Question by: ANTHONY KIRICHENKO on Feb 22, 2021, 1:34 PM
This tool would not be recommended for V-Grooving Aluminum sheet. It was recommended for engraving only.
Answer by: Amana Admin on Mar 11, 2021, 9:28 PM
