Insert Carbide Mini Spoilboard Surfacing, Rabbeting, Flycutter, Slab Leveler, Bed Skimming & Surface Planer Router Bit with Scorers

RC-2247 Insert Carbide Mini Spoilboard Surfacing, Rabbeting, Flycutter, Slab Leveler & Surface Planer 2+2 Flute Design 1-1/4 Dia x 27/64 x 1/2 Inch Shank Router Bit

#RC-2247

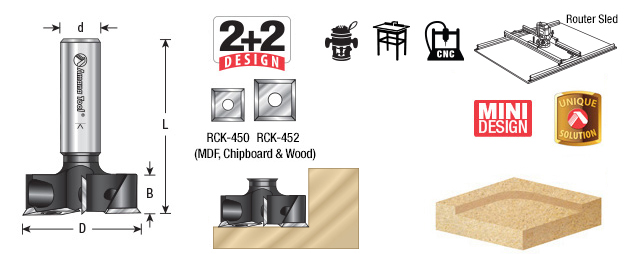

Specification
(D) Diameter	1-1/4
(B) Cutting Height	27/64
(d) Shank	1/2
Overall Length (L)	2-17/64
Type	Insert solid carbide
Max RPM	24,000
Replacement Knives	RCK-450, RCK-452

Skip to the end of the images gallery

RC-2247 Insert Carbide Mini Spoilboard Surfacing, Rabbeting, Flycutter, Slab Leveler & Surface Planer 2+2 Flute Design 1-1/4 Dia x 27/64 x 1/2 Inch Shank Router Bit

Skip to the beginning of the images gallery

Item Description

Mini insert carbide spoilboard surfacing & rabbeting with scorer, great for cutting tight corners. Features unique 2+2 insert knife design that contains two cutting flutes and two up-shear scorers, which provide a smoother finish at the bottom of the cut than traditional two-knife style router bits. Great for surface planing.

Also suitable for router sled machines, Make sure that your router sled is fully stable and squared.

Perfect for:

Resurfacing spoilboards using CNC
2+2 spoilboards contain two bottom scorers for better performance, finer surface finish and better clearance for 90º corners.
Planing large glued up panels using CNC
Surfacing and finishing wood using timber slab machines
Rabbeting or slotting

Designed for planing & rabbeting the following materials:

MDF
Fiberboard
HDF/LDF

Balsa Core*
Epoxy (Epoxy Resins)*
High Density Urethane (HDU Board)*
Plastic/Acrylic**
Plywood/Chipboard*
Hardwood/Softwood*
Ultra-High-Molecular-Weight Polyethylene (UHMWPE)*

*For optimal results and maximum insert life, replace inserts with optional general purpose knives (sold separately).

** Use lower CNC spindle RPM and adjusted feed-rate to prevent Melting and adhesion of the acrylic material to the tool.

Featuring:

2+2 design
4-sided solid carbide insert knives
Exclusive carbide grade for highest quality of cut
Maximum cutting efficiency
Faster material removal process

These industrial router bits feature solid carbide insert knives with four cutting edges that allow users to rotate the knife when one side becomes dull providing the highest-quality finish available on woodworking tools.

Recommendations: For surfacing solid woods it is recommended to remove both bottom scorers.

Proper torques rating to tighten down screws is 2-3Nm Torques.
