Bead Insert CNC Router Bits for MDF & Wood Cabinet Doors
RC-2480 CNC Insert Nova System Bead Plunge Form for MDF & Wood Cabinet Doors 25/32 Dia x 23/64 x 1/2 Inch Shank
#RC-2480

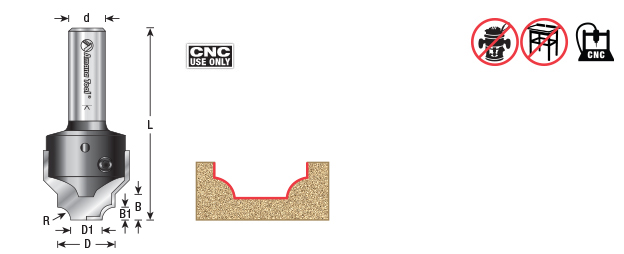

| (D) Diameter | 25/32 |
|---|---|
| D1 | 7/16 |
| (R) Radius | 4.5mm |
| (B) Cutting Height | 23/64 |
| B1 | 3/16 |
| (d) Shank | 1/2 |
| Overall Length (L) | 2-5/8 |
| Type | Plunge Form |
| Style | Bead |
| Replacement Knives | RCK-480 |
This series of profiles utilizing our Nova™ Tool body system of interchangeable carbide insert knives are designed to give the appearance of a Raised Panel door in MDF or solid panels.
One pass is all that is needed for a simple raised panel look using one of the “Plunge Form” profiles.
Replacement knives are MDF Grade Carbide and will last much longer than standard brazed carbide tipped bits.
Excellent For:
- MDF
- Wood
Vectric compatible tool file for RC-2480 available for download, click here.
CNC Insert Nova System for Cabinet Doors Speed and Feed Chart
Download PDF
Product Questions
OTHER SIZES AVAILABLE
