Ogee Insert CNC Router Bits for MDF & Wood Cabinet Doors

RC-2481 CNC Insert Nova System Ogee Plunge Form for MDF & Wood Cabinet Doors 25/32 Dia x 15/32 x 1/2 Inch Shank

#RC-2481

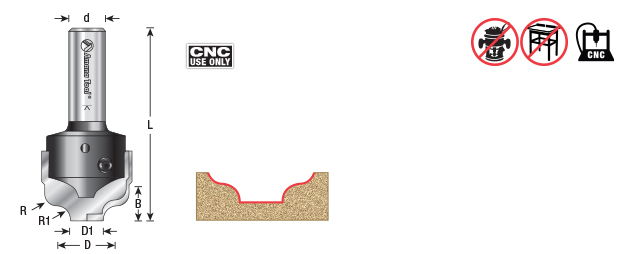

Specification
(D) Diameter25/32
D17/16
(R) Radius4.5mm
(B) Cutting Height15/32
(d) Shank1/2
Overall Length (L)2-5/8
TypePlunge Form
Style Ogee
Replacement KnivesRCK-481
R14mm

This series of profiles utilizing our Nova™ Tool body system of interchangeable carbide insert knives are designed to give the appearance of a Raised Panel door in MDF or solid panels.

One pass is all that is needed for a simple raised panel look using one of the “Plunge Form” profiles.

Replacement knives are MDF Grade Carbide and will last much longer than standard brazed carbide tipped bits.

Excellent For:

  • MDF
  • Wood
Tool BodyT.C Knife (2)

RC-2481 DXF

File Size : 137.39 KB
Create account or Login to download

RC-2481 PDF

File Size : 61.38 KB
Create account or Login to download

Raised Panel Combination Chart

File Size : 4.4 MB
Create account or Login to download

Product Questions

Question on RC-2481 CNC Insert Nova System Ogee Plunge Form for MDF & Wood Cabinet Doors 25/32 Dia x 15/32 x 1/2 Inch Shank


Create Account or Login to ask a question

CNC Insert Nova System for Cabinet Doors Speed and Feed Chart

Download PDF
