RC-2483 CNC Insert Nova System Traditional Plunge Form for MDF & Wood Cabinet Doors 1-3/8 Dia x 25/64 x 1/2 Inch Shank

#RC-2483

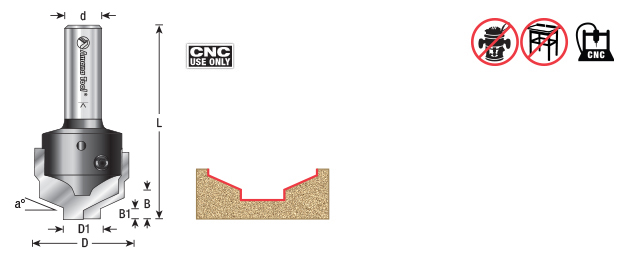

Specification
(a°) Angle 22°
(D) Diameter 1-3/8
D1 15/32
(B) Cutting Height 25/64
B1 7/64
(d) Shank 1/2
Overall Length (L) 2-5/8
Type Plunge Form
Style Traditional
Replacement Knives RCK-483

This series of profiles utilizing our Nova™ Tool body system of interchangeable carbide insert knives are designed to give the appearance of a Raised Panel door in MDF or solid panels.

One pass is all that is needed for a simple raised panel look using one of the “Plunge Form” profiles.

Replacement knives are MDF Grade Carbide and will last much longer than standard brazed carbide tipped bits.

Excellent For:

  • MDF
  • Wood
Tool BodyT.C Knife (2)

RC-2483-RCK-483 DXF

File Size : 457.88 KB
Create account or Login to download

RC-2483-RCK-483 PDF

File Size : 76.96 KB
Create account or Login to download

Raised Panel Combination Chart

File Size : 4.4 MB
Create account or Login to download

CNC Insert Nova System for Cabinet Doors Speed and Feed Chart
