Traditional Insert CNC Router Bits for MDF & Wood Cabinet Doors

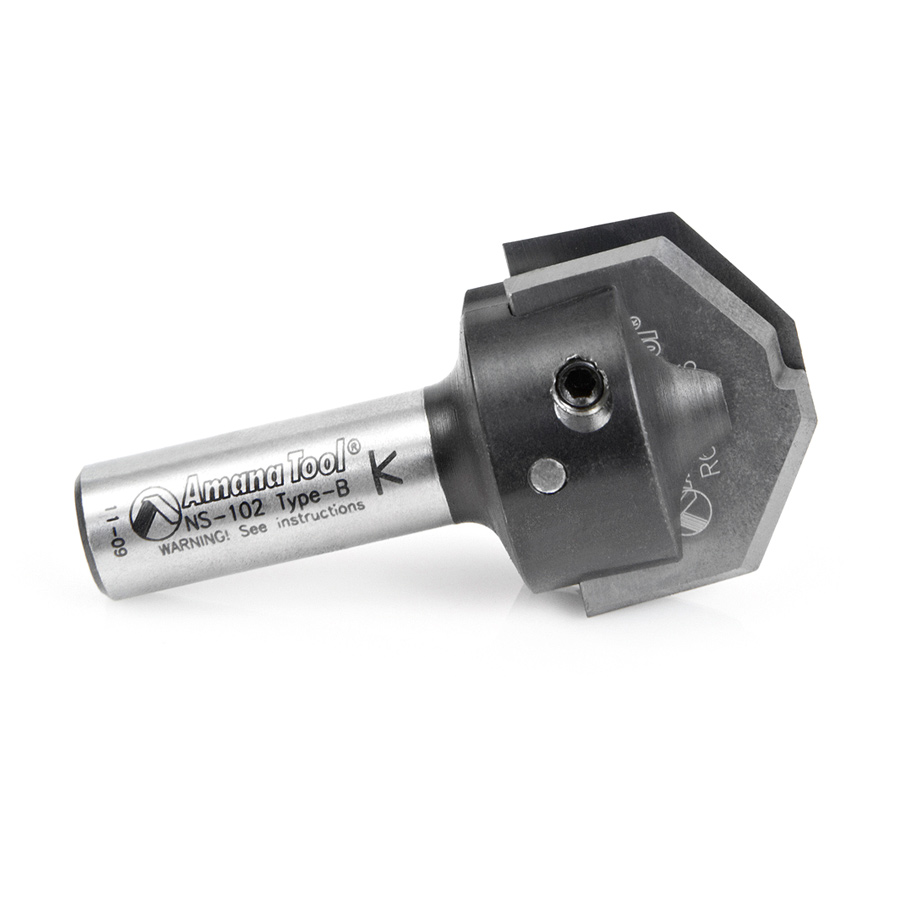

RC-2486 CNC Insert Nova System Traditional Raised Panel for MDF & Wood Cabinet Doors 1-11/32 Dia x 21/64 x 1/2 Inch Shank
#RC-2486

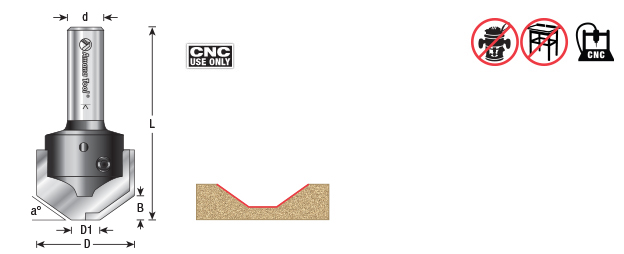

(a°) Angle | 35° |
---|---|
(D) Diameter | 1-11/32 |
D1 | 25/64 |
(B) Cutting Height | 21/64 |
(d) Shank | 1/2 |
Overall Length (L) | 2-5/8 |
Type | Raised Panel |
Style | Traditional |
Replacement Knives | RCK-486 |
This series of profiles utilizing our Nova™ Tool body system of interchangeable carbide insert knives are designed to give the appearance of a Raised Panel door in MDF or solid panels.
One pass is all that is needed for a simple raised panel look using one of the “Plunge Form” profiles.
Replacement knives are MDF Grade Carbide and will last much longer than standard brazed carbide tipped bits.
Excellent For:
- MDF
- Wood
Vectric compatible tool file for RC-2486 available for download, click here.
