Straight Insert CNC Router Bits

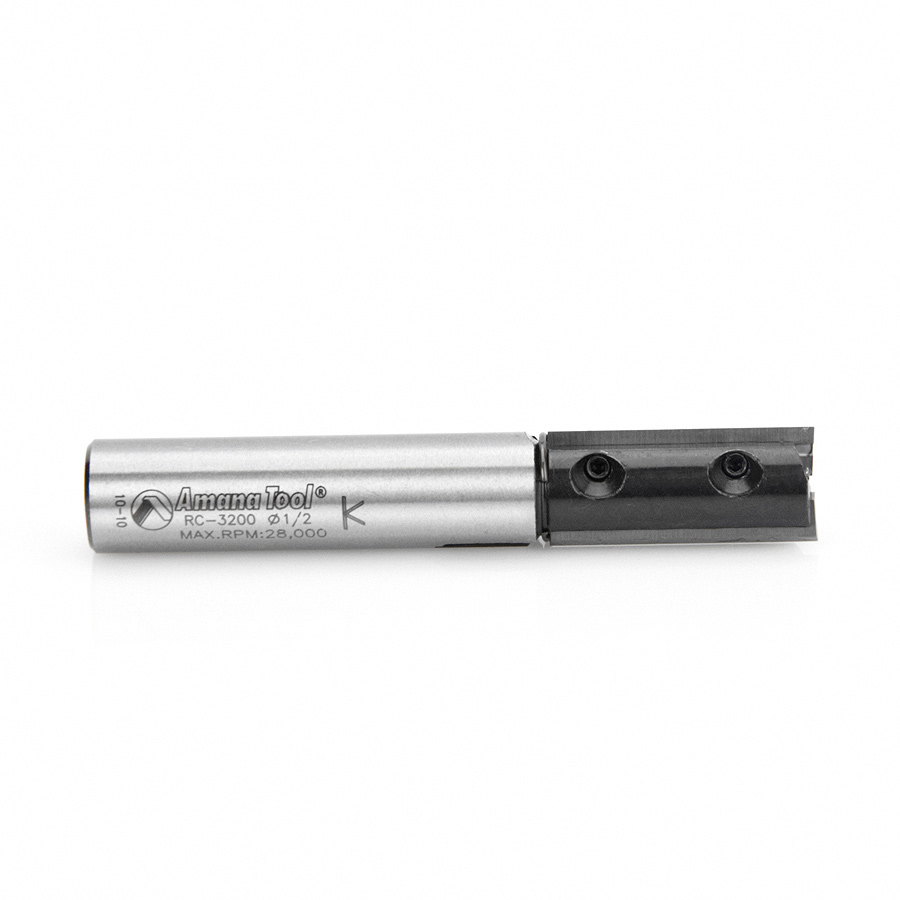

RC-3200 CNC Insert Straight 1/2 Dia x 30mm x 1/2 Inch Shank

#RC-3200

Specification
(D) Diameter1/2
(B) Cutting Height30mm
(d) Shank1/2
Overall Length (L)3-1/8
Replacement screw67016
Replacement KnivesRCK-34-B
Flutes2

These router bits yield cuts which are cleaner than typical insert bits, offering high speed cuts with super clean finish. They also are channel set, double edge knives. Each blade has a double-sided cutting edge for economy. The insert carbide is much harder than brazed carbide. There is minimum amount of downtime for blade changes.

Fusion Logo

Fusion 360 compatible tool file for RC-3200 available for download, click here.

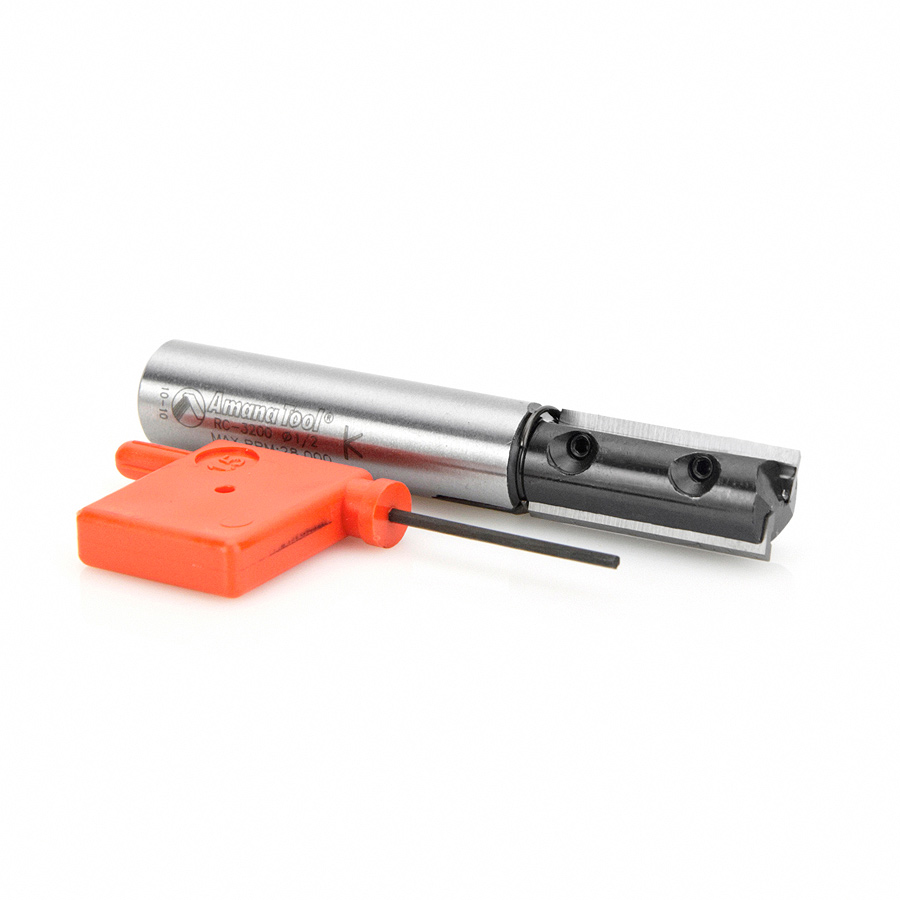

Spring WasherScrewKnifeHex key
67105
