Stagger Tooth Insert CNC Router Bits

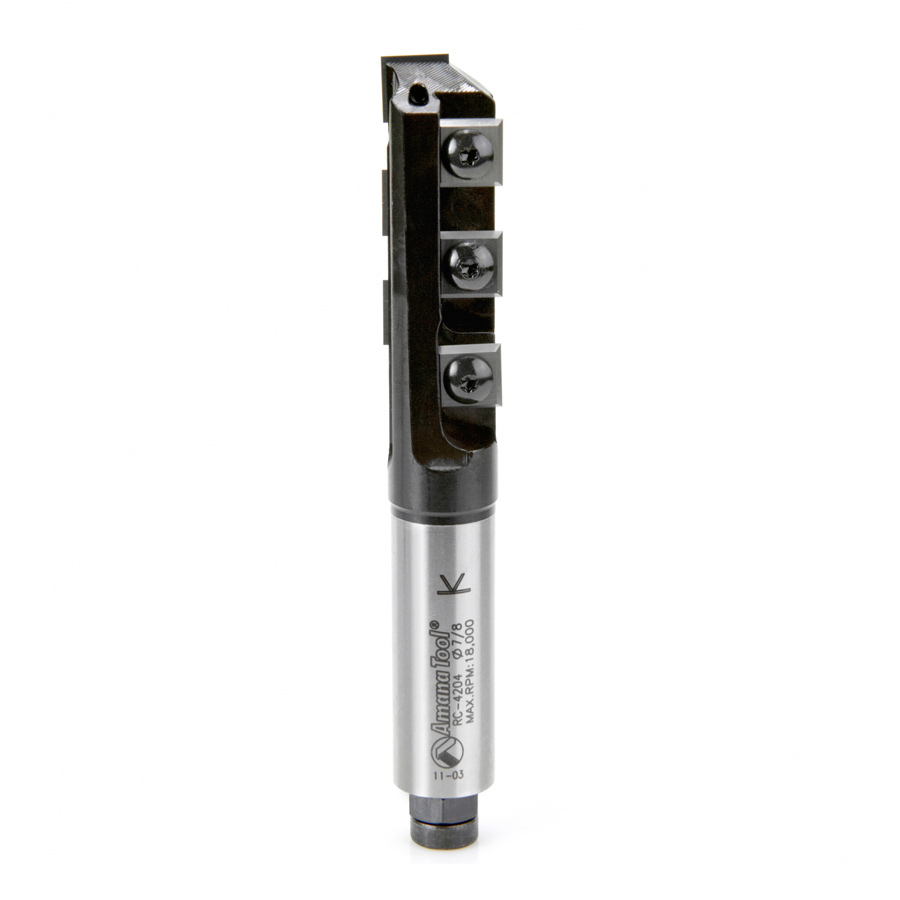

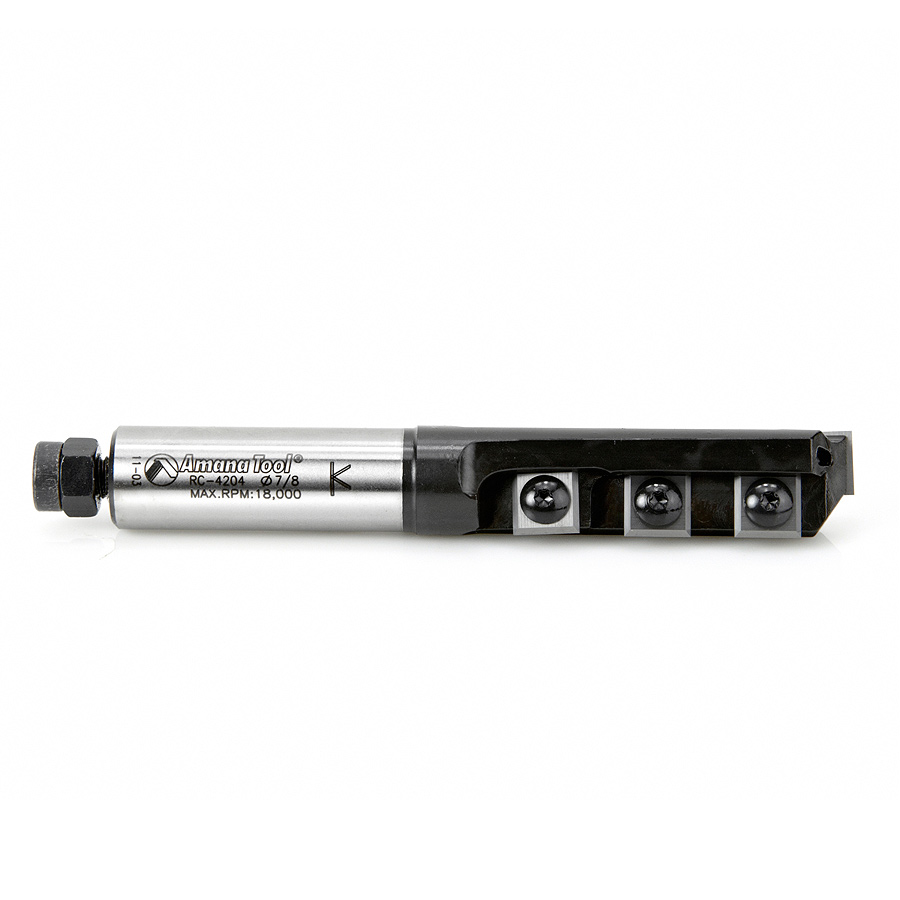

RC-4204 CNC Insert Stagger Tooth 7/8 Dia x 2-7/16 x 3/4 Shank
#RC-4204
| (D) Diameter | 7/8 |
|---|---|
| (B) Cutting Height | 2-7/16 |
| (d) Shank | 3/4 |
| Overall Length (L) | 5-5/16 |
| Max RPM | 18,000 |
| Replacement Knives | AMA-12 (6 knives required) |
| Flutes | 2 |
Insert straight router bit complete with two flutes and multiple cutting blades. Blades are sheared up and down to ensure a good finish on both top and bottom surfaces of laminated and veneered boards. For use on routers and machining centers with CNC control.

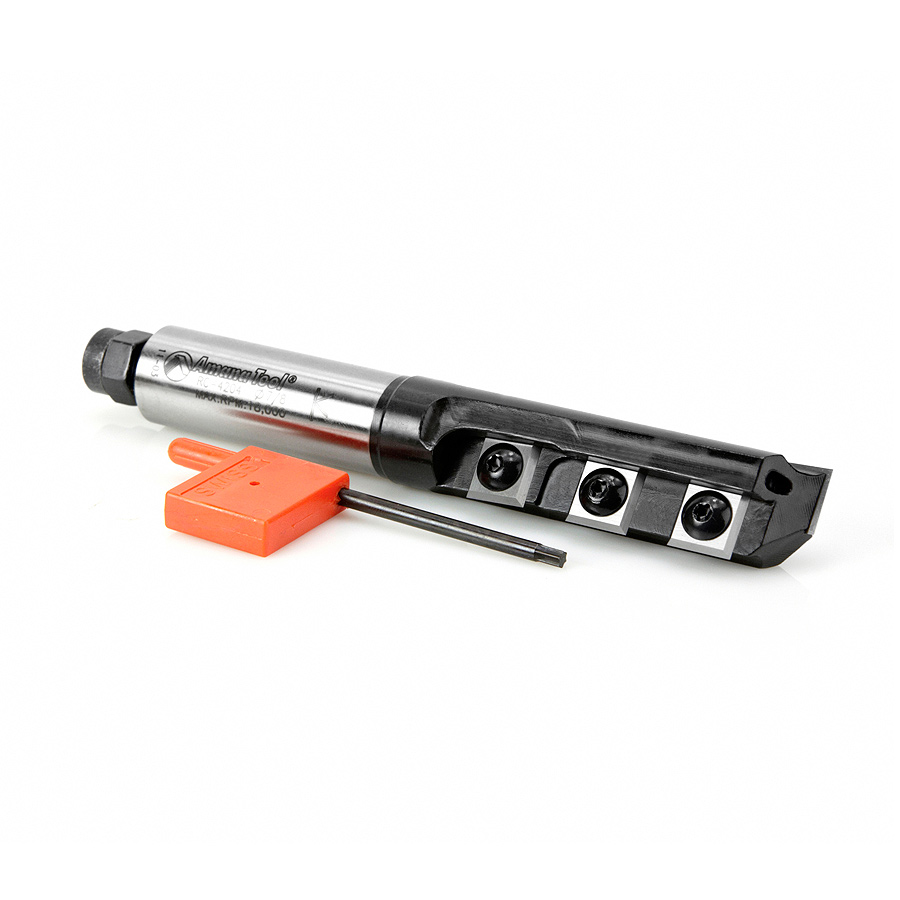

| Solid Carbide Knife | Diamond-Like Carbon (DLC) Knife | Torx Screw | Torx Key |
|---|---|---|---|
