RC-45711 In-Tech Insert Carbide V Groove 90 Deg x 11/16 D x 21/64 CH x 1/4 Inch SHK Single Flute Router Bit

#RC-45711

Specification
Diameter (D)11/16
Angle (a°)90°
Cutting Height (B)21/64
Shank (d)1/4
Overall Length (L)1-61/64
TypeV-Groove/Signmaking
Replacement Insert KnivesAMA-12 (12x12x1.5mm)
Flutes1
a1°45°
# of Knives1
Cutting Edges4

In-Tech 'V' Groove Insert Router Bits

Please or

These popular insert router bit profiles provide all woodworkers access to the industrial-grade technology, at an affordable price. By replacing worn knives instead of sharpening standard carbide tipped bits, router bit dimensions, cutting quality and accuracy remain constant during the life of the tool.

Each insert knife can be rotated to four new points.

Ideal for routing:

  • Aluminum, Brass, Bronze, Copper, Gold, Silver & Carbon Fiber (Engraving Only)
  • MDF
  • Chipboard
  • Softwood
  • Hardwood
  • Plastic

Benefits of the in-Tech™ Series include:

  • Cutting accuracy remains constant during the life of the knife
  • Priced comparably to brazed router bits with at least 4 times longer tool life
  • Superior cutting quality
  • No resharpening costs
  • Harder grade tungsten carbide

Replacement insert knives sold individually.

Fusion Logo

Vectric and Fusion 360 compatible tool files for RC-45711 available for download, click here.

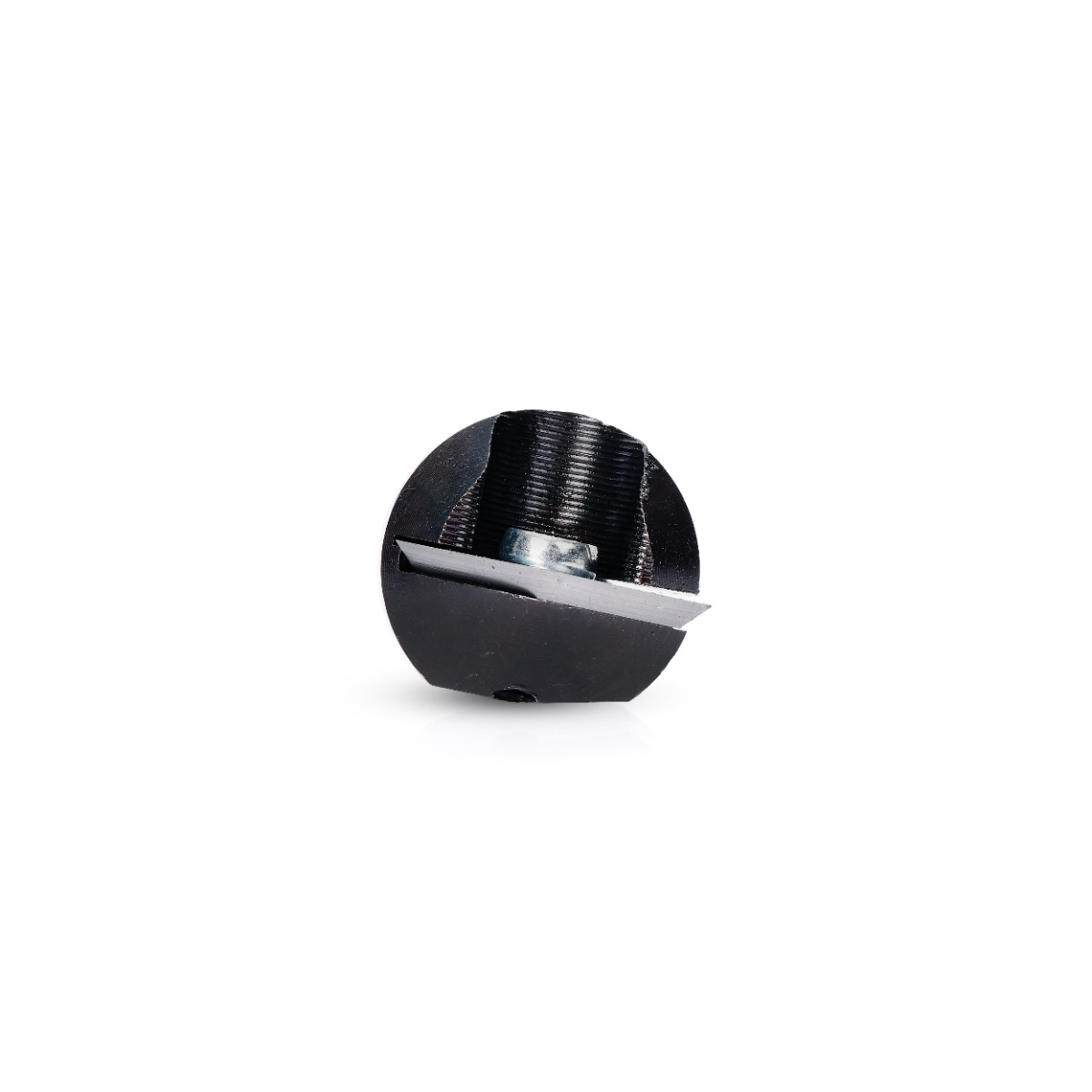

Included General Purpose Solid Carbide Insert KnifeOptional MDF Solid Carbide Insert KnifeOptional Solid Wood Diamond-Like Carbon (DLC) Solid Carbide Insert KnifeHex ScrewHex Key
