In-Tech 'V' Groove Insert Router Bits

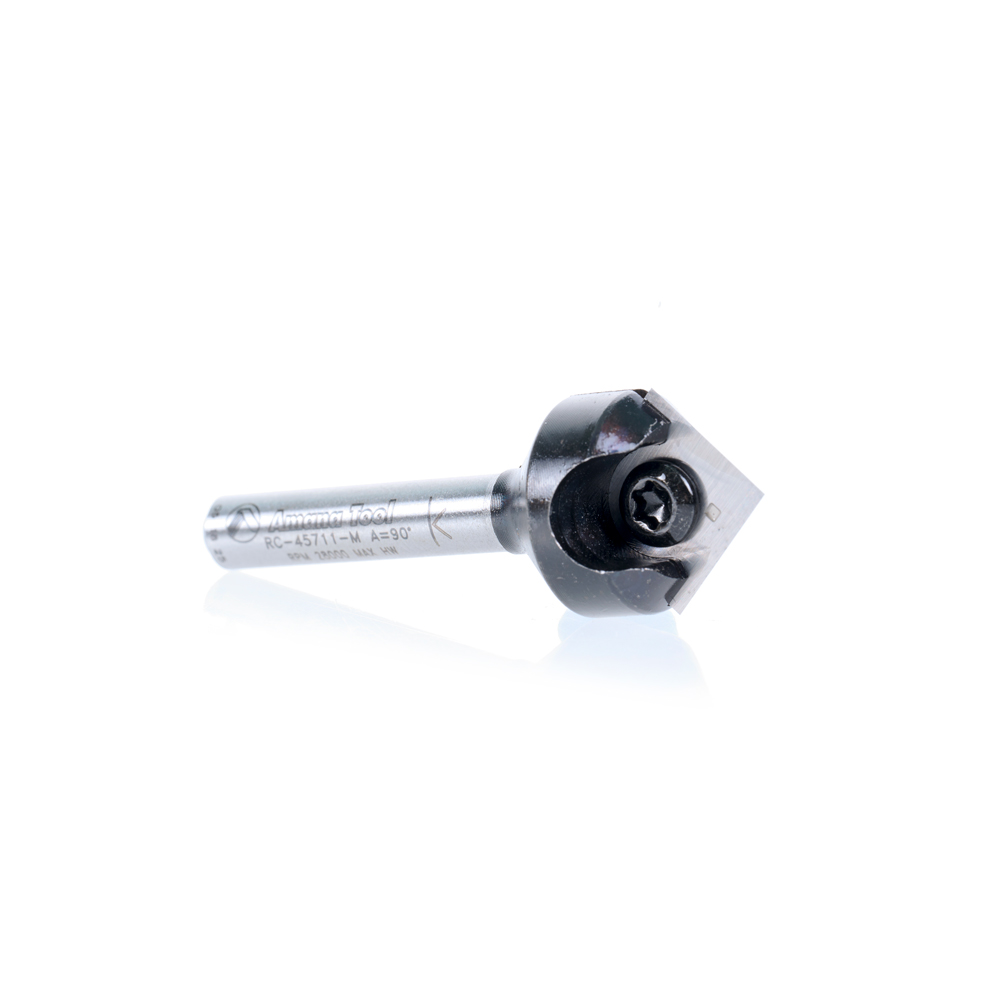

RC-45711-M In-Tech Insert Carbide V Groove 90 Deg x 17.6mm Dia x 8.5mm x 6mm Shank Single Flute Router Bit

#RC-45711-M

Specification
Angle (a°) 90°
a1° 45°
Diameter (D) 17.6mm
Cutting Height (B) 8.5mm
Shank (d) 6mm
Overall Length (L) 52mm
Type V-Groove/Signmaking
Replacement Insert Knives AMA-12 (12x12x1.5mm)
Flutes 1
# of Knives 1
Cutting Edges 4

These popular insert router bit profiles provide all woodworkers access to the industrial-grade technology, at an affordable price. By replacing worn knives instead of sharpening standard carbide tipped bits, router bit dimensions, cutting quality and accuracy remain constant during the life of the tool.

Each insert knife can be rotated to four new points.

Ideal for routing:

  • Aluminum, Brass, Bronze, Copper, Gold, Silver & Carbon Fiber (Engraving Only)
  • MDF
  • Chipboard
  • Softwood
  • Hardwood
  • Plastic

Benefits of the in-Tech™ Series include:

  • Cutting accuracy remains constant during the life of the knife
  • Priced comparably to brazed router bits with at least 4 times longer tool life
  • Superior cutting quality
  • No resharpening costs
  • Harder grade tungsten carbide

Replacement insert knives sold individually.

Fusion Logo

Vectric and Fusion 360 compatible tool files for RC-45711-M available for download, click here.

Included General Purpose Solid Carbide Insert KnifeOptional MDF Solid Carbide Insert KnifeOptional Solid Wood Diamond-Like Carbon (DLC) Solid Carbide Insert KnifeSlotted Screw

In-Tech™ Insert Carbide V-Groove Speed and Feed Chart

Download PDF
