In-Tech Flush Trim Insert Router Bits

RC-47104 Insert Flush Trim 1/2 Dia x 20mm x 1/4 Inch Shank

#RC-47104

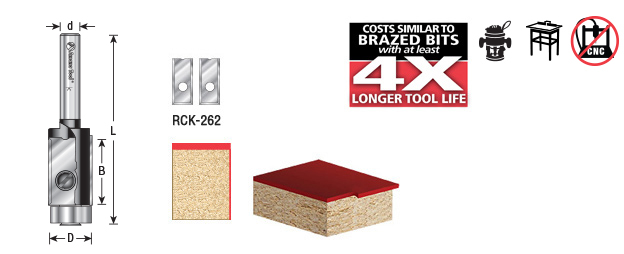

Specification
Diameter (D) 1/2
Cutting Height (B) 20mm
Shank (d) 1/4
Overall Length (L) 2-5/16
Type Flush Trim
Replacement Insert Knives RCK-262
Replacement Bearing 47706
Flutes 2

These popular insert router bit profiles provide all woodworkers access to the industrial-grade technology, at an affordable price. By replacing worn knives instead of sharpening standard carbide tipped bits, router bit dimensions, cutting quality and accuracy remain constant during the life of the tool.

Ideal for routing:

  • MDF
  • Chipboard
  • Softwood
  • Hardwood

Use the flush trimming bit for laminate work or for template and pattern work. For template application, the bearing follows the template, while the cutting edges trim the workpiece. With the router handheld, the template is on the bottom of the work. With a table-mounted router, the template is on top. Excellent for template work.

Benefits of the in-Tech™ Series include:

  • Cutting accuracy remains constant during the life of the knife
  • Priced comparably to brazed router bits with at least 4 times longer tool life
  • Superior cutting quality
  • No resharpening costs
  • Harder grade tungsten carbide

Replacement insert knives sold as a pair.
Solid Carbide Insert Knives (2)Ball BearingHex ScrewHex Key
