Solid Carbide General Purpose 'V' Groove, Miter Fold & Signmaking Insert CNC Replacement Knives

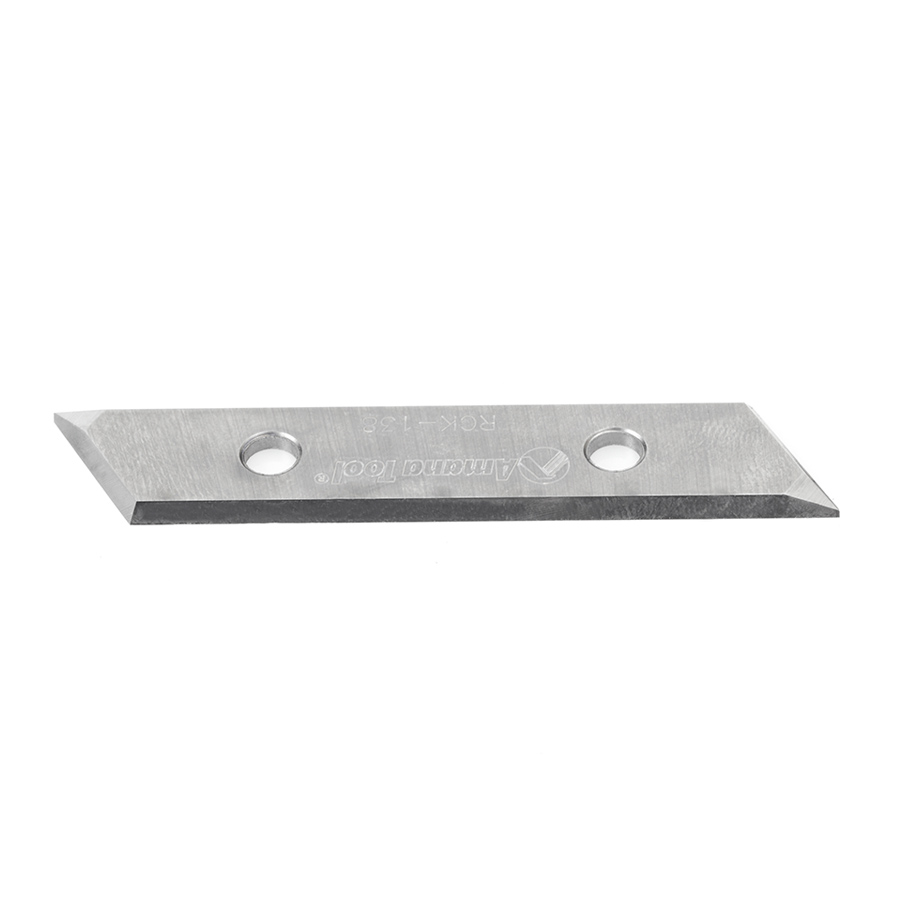

RCK-138 60 x 12 x 1.5mm Insert Knife RC-1034

#RCK-138

Specification
Type Solid Carbide
For Tool # RC-1034

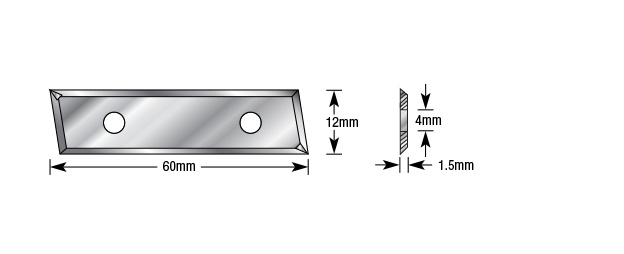

Dimensions 60x12x1.5mm

These industrial V Groove insert router bits were especially designed for applications including

  • Miter Folds - "create the perfect joint"
  • Signmaking and Lettering



The innovative CNC tool design uses a high grade carbide insert knife which allows you to get two uses out of each insert. Once insert knife show signs of wear you can rotate the insert for a brand new cutting edge. Secure locking screw system ensures maximum safety and maintains cutting accuracy. CNC router requires quality hold downs to ensure the least possibility of material shifting during operation.

Excellent for cutting:

  • Aluminum, Brass, Bronze, Copper, Gold, Silver & Carbon Fiber
    (Engraving Only)
  • Composites
  • Composite Decking
  • Foam
  • Laminate
  • Melamine
  • MDF/HDF
  • Sign Board
  • Solid Surface
  • Veneered Plywood
  • Wood
  • Xanita® Board*
  • 20lbs High Density Urethane

*When working with Xanita LightBoard panel (X-board® X-board® plus) we recommend using MDF knives for better results.



Advantages of Insert Tooling

  • Long lasting insert knives provide superior smooth quality cuts every time.
  • Quick and precise replacements of dull knives.
  • Due to insert accuracy tool life is extended.
  • Insert tooling allows for harder grades of carbide.
  • Special carbide grades for special applications.
  • Knives can be re-sharpened multiple times without affecting the original profile
  • Cost effective solution compared to replacing brazed router bits.
