Tongue and Groove Stile & Rail Cabinet Door Shaper Cutter Sets

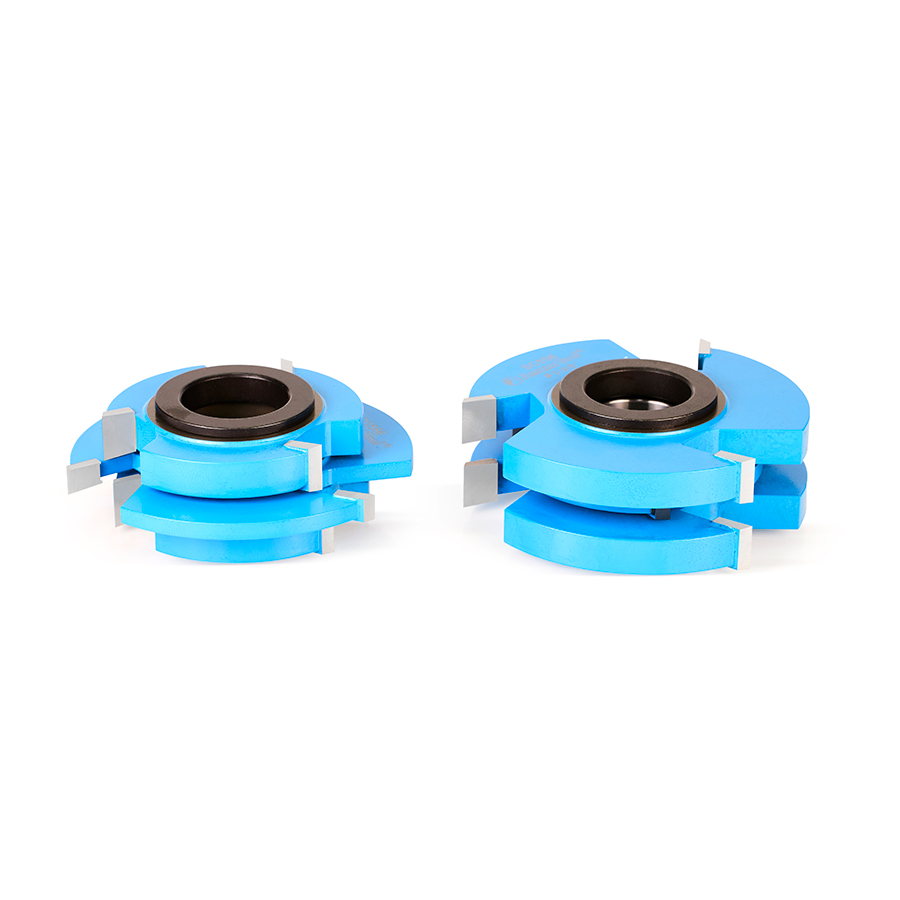

SC556 2-Piece Carbide Tipped 3-Wing Stile & Rail Tongue & Groove Cabinet Door 3-3/8 Dia x 1-1/8 x 1 & 1-1/4 Bore Set for 5/8 to 1 to 1-1/8 Material
#SC556
| (D) Diameter | 3-3/8 |
|---|---|
| (d) Bore | 1 & 1-1/4 |
| (B) Cutting Height | 1-1/8 |
| (C) Length of Carbide | 7/16 |
| D1 | 2-1/2 |
| For Material | 5/8" - 1-1/8" |
| (L) Depth of Groove | 7/16 |
| Optional Rub Collar | C-017 |
| (T) Width of Groove | 1/4 |
Available with either 1" and 1-1/4" inside diameter. Rub collar (sold separately) for 1-1/4" arbor only!
Product Questions
I have the amana SC556 cutter set. I had a bolt come off my shaper and damage two cutters. It is the large diameter groove cutter and one of the smaller diameter face cutters. What do I need to do to replace these cutters.
Thanks,
John Wyatt
Thanks,
John Wyatt
Question by: John Wyatt on Oct 21, 2020, 7:21 PM
I am sorry, the cutters for the SC556 are not available individually.
Answer by: Amana Admin on Oct 26, 2020, 5:02 PM
