4 Facet Solid Carbide Fractional Drills

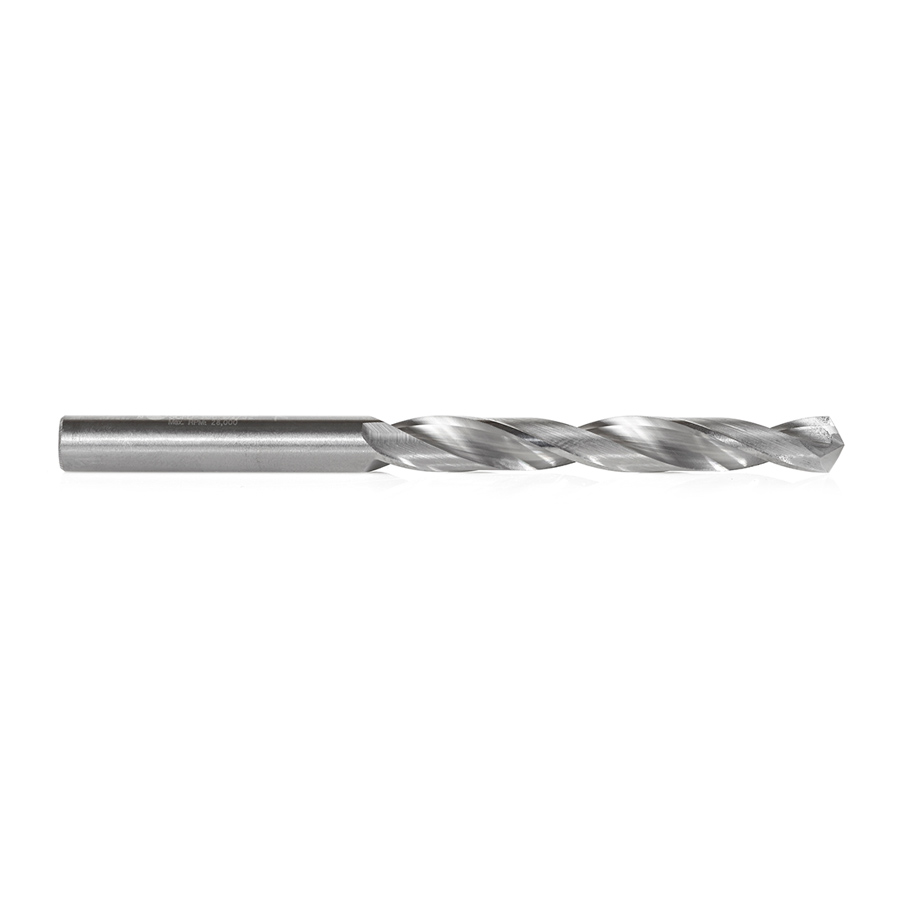

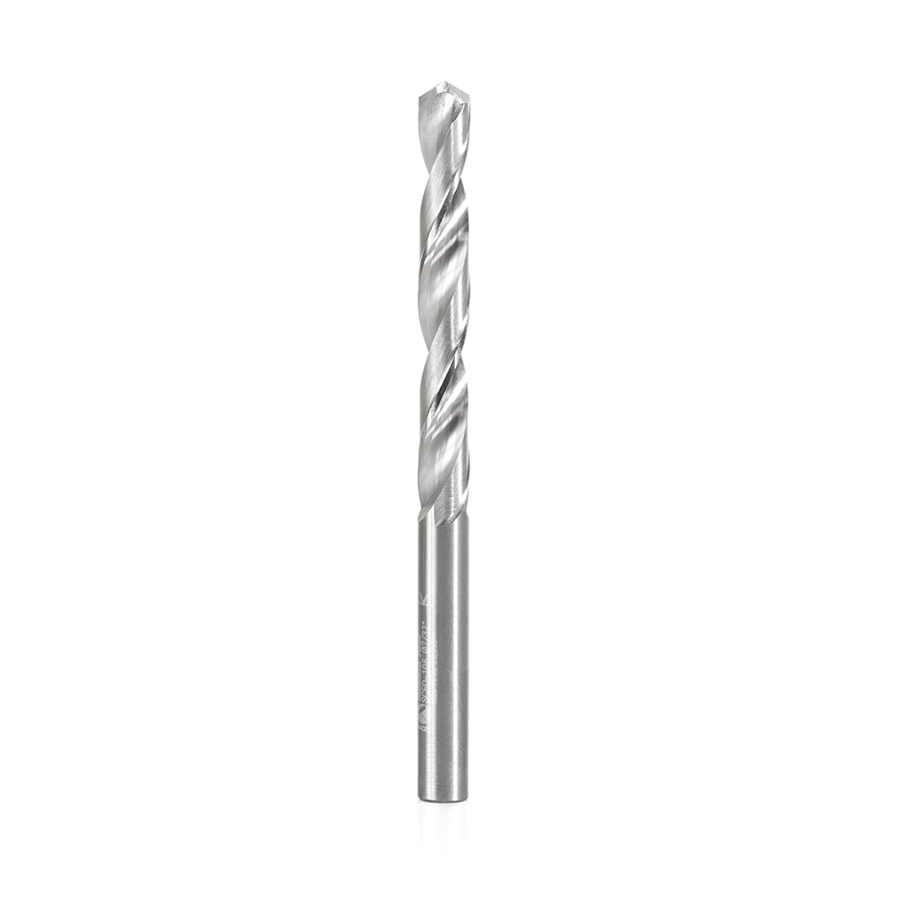

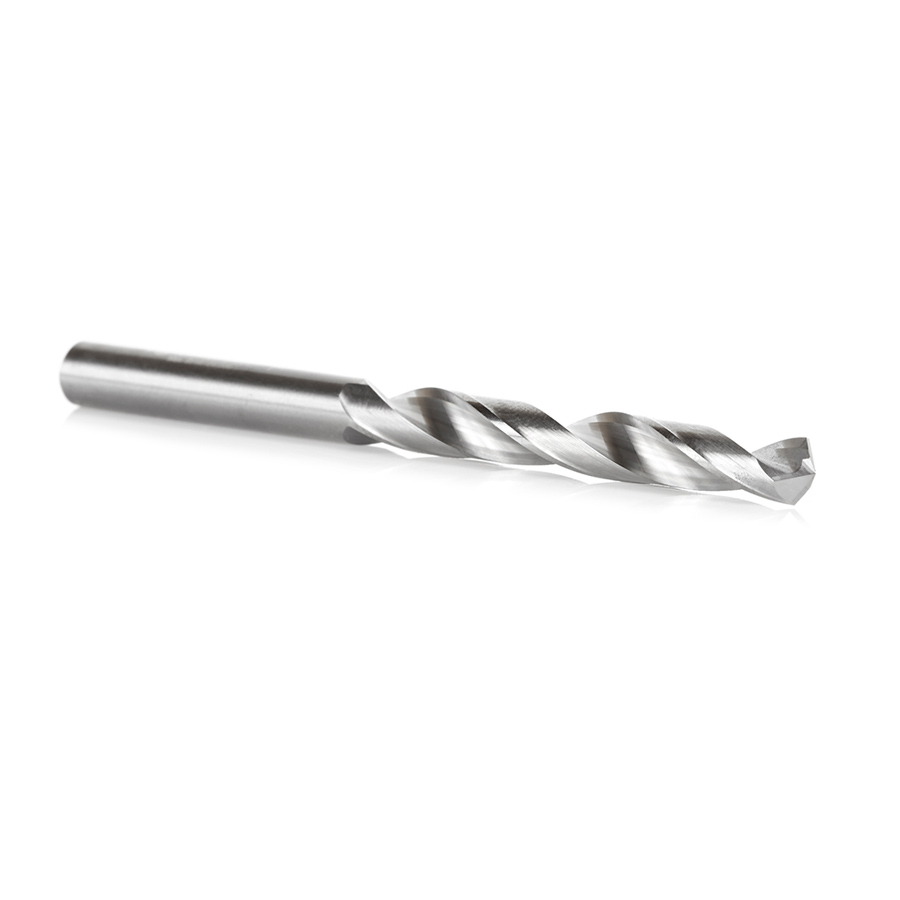

SCFD-106 Solid Carbide CNC 4 Facet 118 Deg Drill Point 7/32 Dia x 1-3/4 x 7/32 Shank x 3 Inch Long

#SCFD-106

Specification
(D) Diameter 7/32 (0.2188)
(B) Cutting Height 1-3/4
(d) Shank 7/32
Overall Length (L) 3

Amana Tool's 4 facet jobber length fractional drills consist of 2 cutting edges with 2 facets per cutting edge. The facets consist of the lip relief and the lip clearance angle.

Multi-faceted drill geometries translate into improved centering accuracy, thereby producing rounder, precise holes less likely for “bell mouthing.” Our premium grade carbide substrate insures increased tool life by a minimum factor of 10X’s over HSS coated bits, all while often eliminating the need for a prior center punch or spotting procedure. Also good for drill press.

Excellent for:

  • Aluminum
  • Aluminum 5052
  • Aluminum Alloys
  • Aluminum Alloyed Si > 10%
  • ACM
  • Brass
  • Bronze
  • Copper
  • Copper Alloys
  • Fomex® with Aluminum Face
  • Steels
  • Tool Steels
  • Free Machining Stainless Steels
  • Soft Cast Irons
  • Medium Cast Irons
  • Malleable Cast Irons
  • Magnesium
  • Nickel Alloys
  • Low Carbon Steels
  • Medium Carbon Steels
  • High Tensile (35-45 Rc) Steels
  • High Tensile (45+ Rc) Steels
  • Soft Titanium
  • Titanium Alloys Hard Titanium

More sizes and types (Letter, Number & Metric) available upon request.

4 Facet Solid Carbide Fractional Drill Speed and Feed Chart

Download PDF
