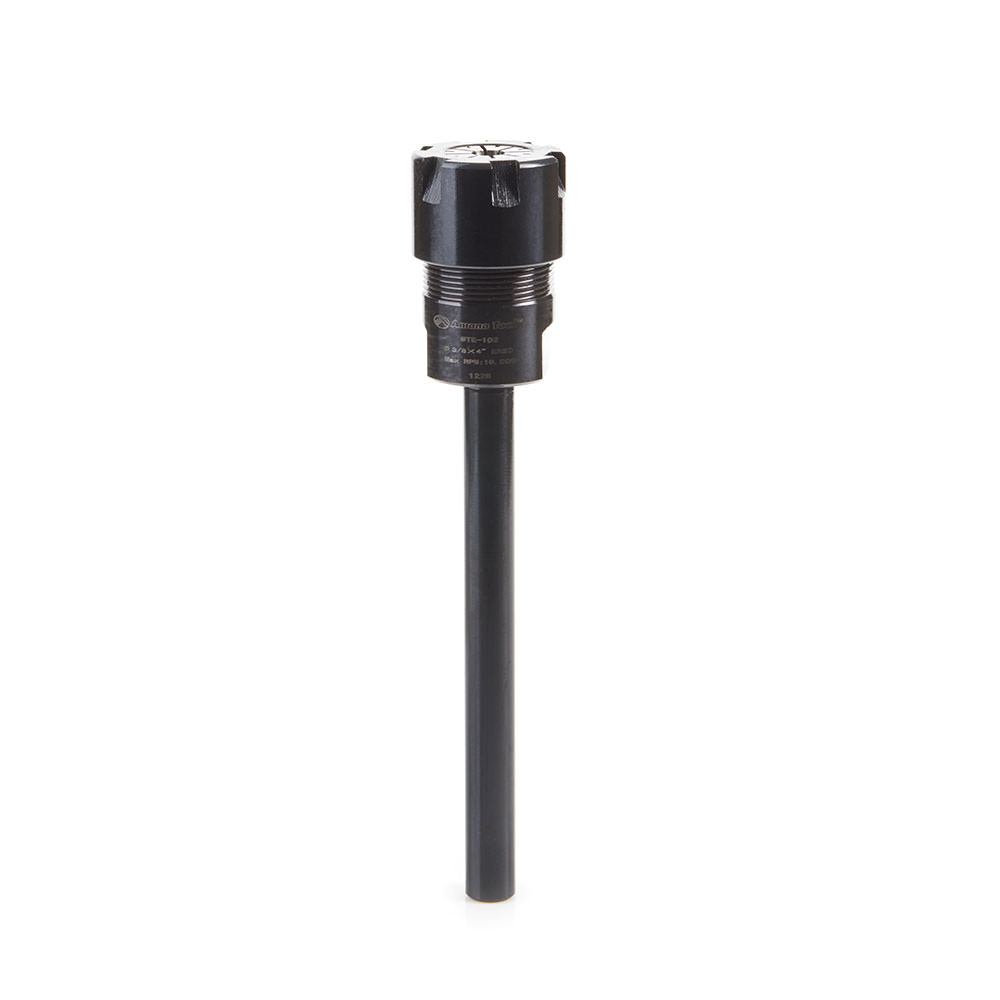

TE-102 CNC High Precision Tool Holder Extension 3/8 Shank, 5-1/2 Inch Length, 1-7/64 Inch Dia., 1/4 Inch Inner Dia.

#TE-102

Specification
(D) Diameter1-7/64
(d) Shank3/8
Overall Length (L)5-1/2
Collet StandardER20
L14
Spring Collet IncludedCO-276
D11/4
Included WrenchWR-120

CNC High Precision Tool Holder Extension

Please or

Heat Treated Alloy Steel

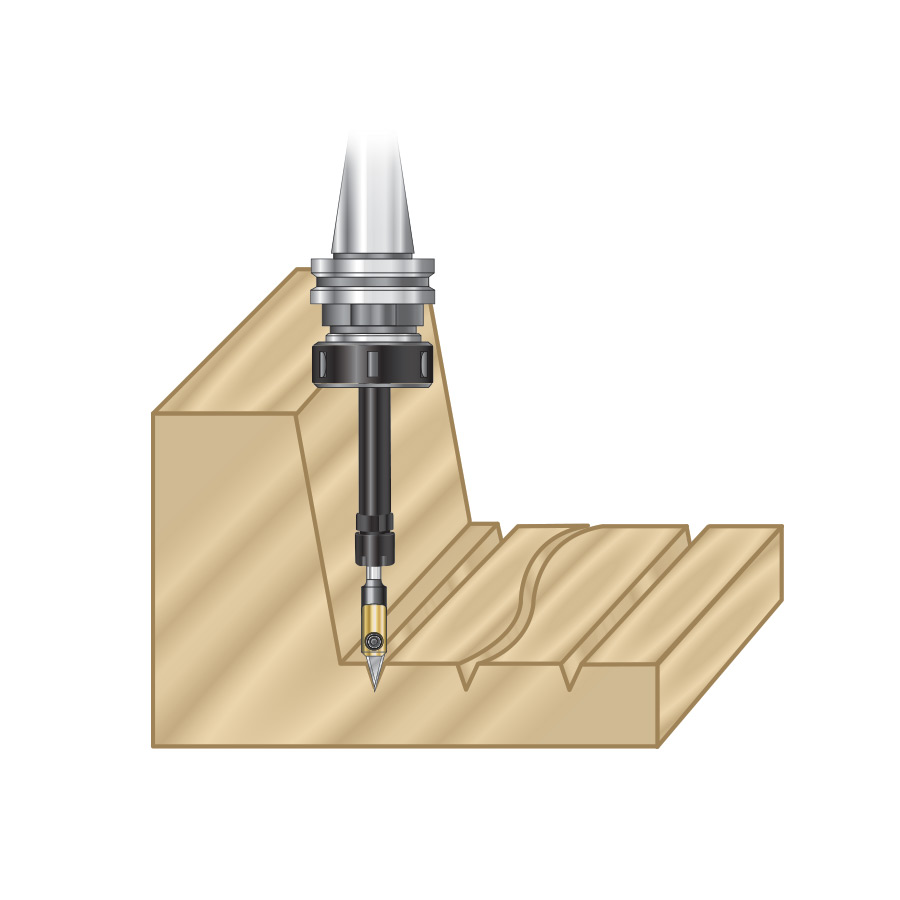

ER collet chucks used for different projects and applications save money by not purchasing extra-long tools! Choose the correct size spring collet for your bit, set the tool depth and tighten the collet nut using the mini wrench. Have the extra reach you need at economical prices with this CNC tool holder extender.

  • 1/4" inner diameter spring collet included
  • ER mini nut and spring collet included with each ER straight shank tool extension ideal for hard to reach surfaces
  • Shank to pocket runout 0.0004" (0.01mm)
  • Precision ground for best Total Indicator Runout (TIR)
  • Spring collets can easily be changed
  • Black oxide finish for corrosion protection
  • Max RPM = 10 000 for safe operation

Spring collet and wrench included.

Included Spring ColletIncluded Wrench
