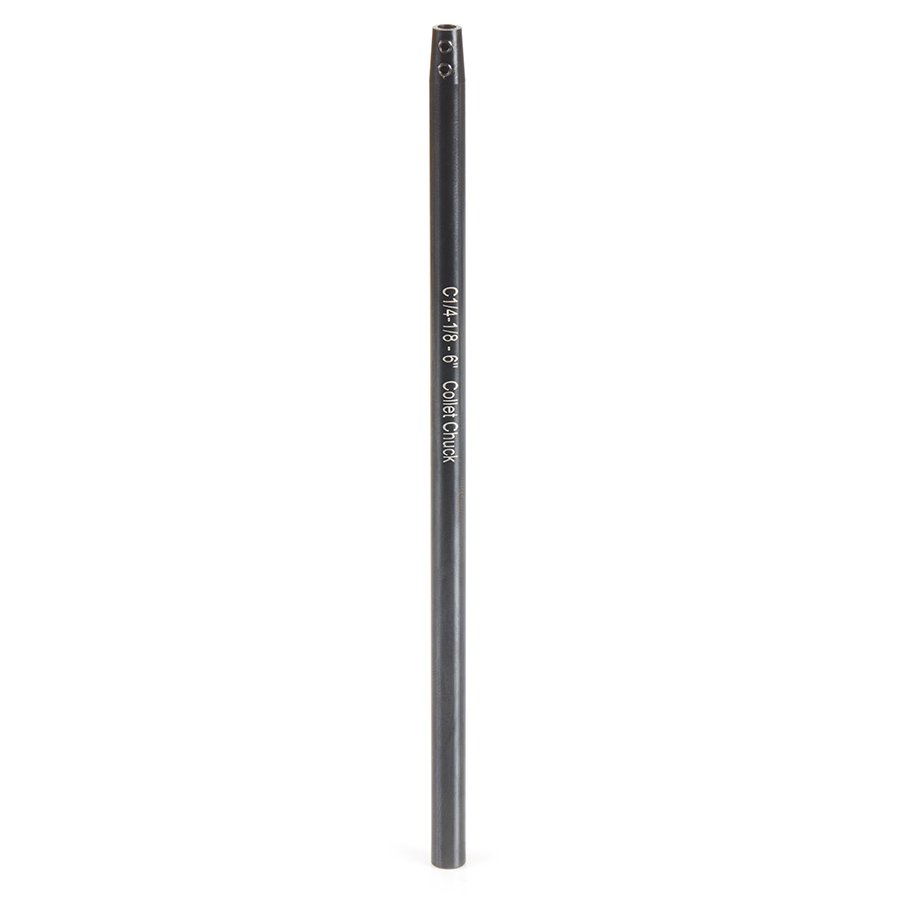

TE-132 CNC Narrow Reach Tool Holder Extension 1/4 Shank, 6 Inch Length, 1/8 Inch Inner Dia.

#TE-132

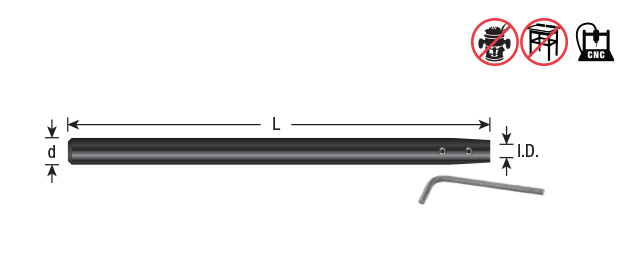

Specification
(d) Shank1/4
Overall Length (L)6
Replacement screw67214 (2)
Inner Diameter (ID)1/8

CNC Narrow Reach Tool Holder Extension

Please or

Have the extra reach you need at economical prices with this CNC tool holder extender.

Side Lock with Key

  • For use with high precision spring collets
  • Precision ground for best Total Indicator Runout (TIR)
  • Shank to pocket runout 0.0004" (0.01mm)
  • Black oxide finish for corrosion protection
  • Max RPM = 10,000 for safe operation
Replacement Screw (2)
